6.2.3 PIN assignments for the connectors
The pin con󹪝gurations of the plug connectors are subsequently shown. The view is from the
plug-in side.

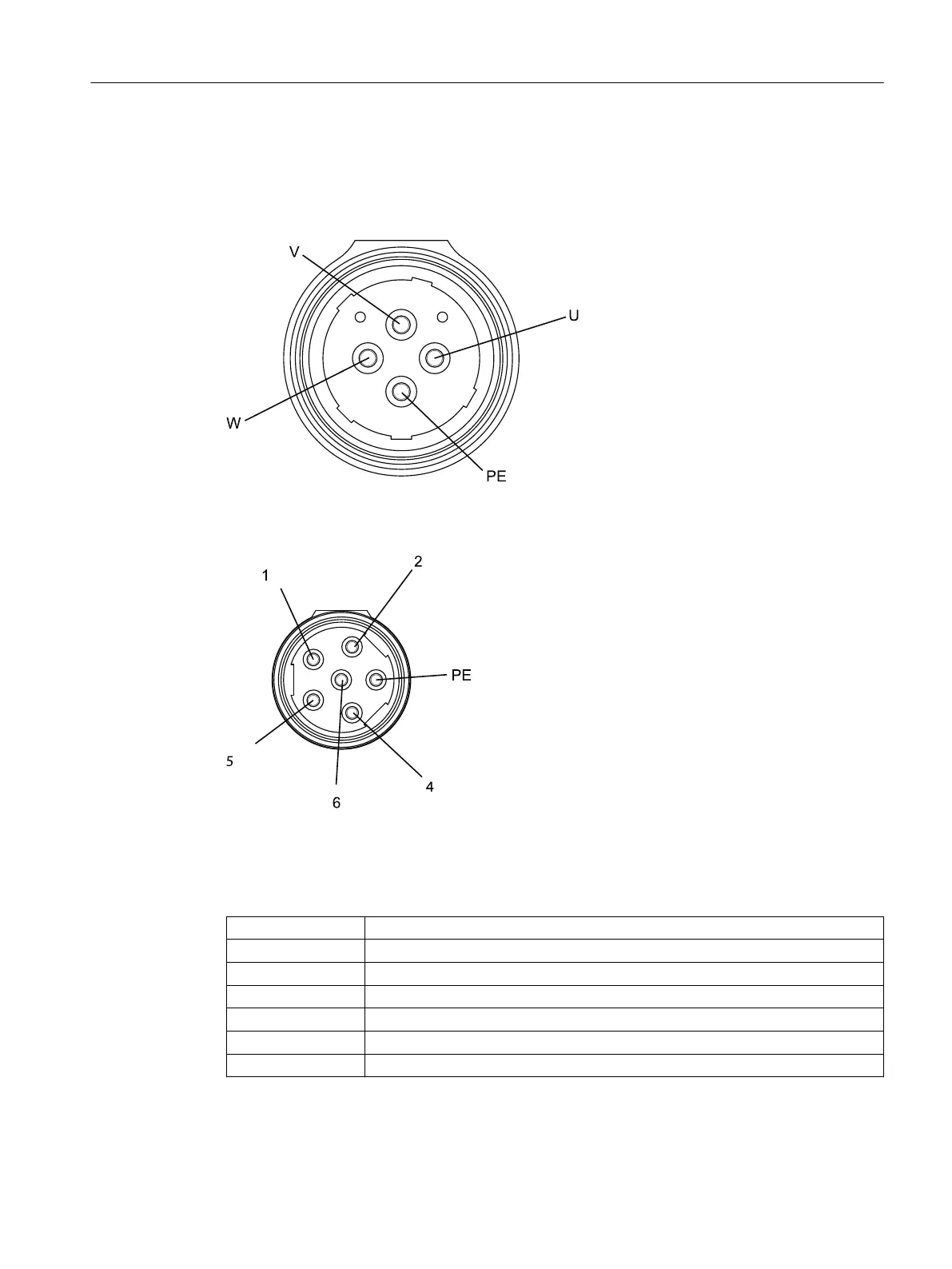

Figure6-11 Pin con󹪝guration, Size 1.5 power connector
Figure6-12 Pin con󹪝guration, Size 1.0 power connector
Table 6-3 Pin assignment, Size 1.0 power connector
PIN Interface
1 U
2 V
PE PE
4 -
5 -
6 W
Connection
6.2Electrical connection
1FW6 built-in torque motors
Operating Instructions, 09/2022, A5E52220812B AA 99
