7 Transmission Repair
7B Eaton 750 / 751

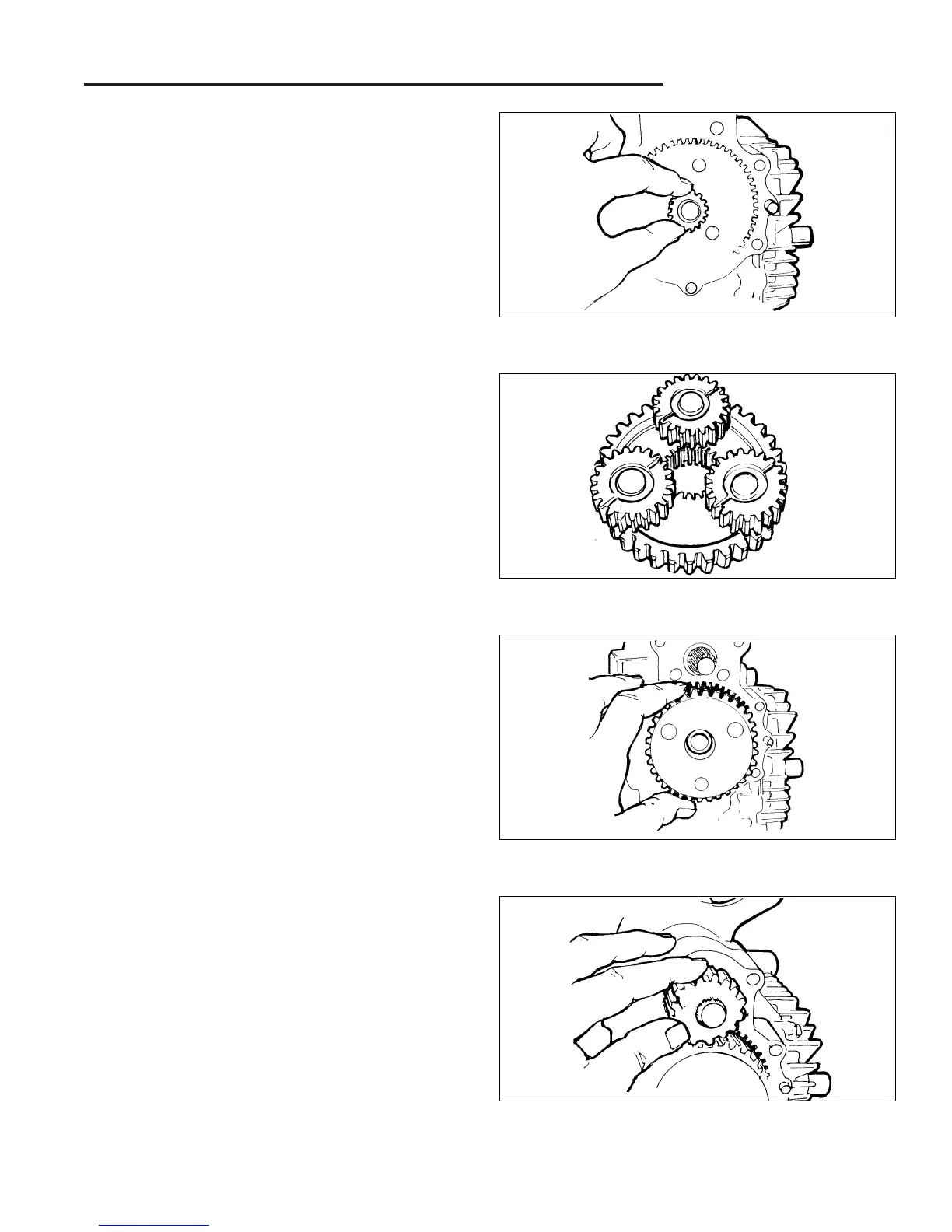

Figure B–85. Install Second Sun Gear
15. Install the second sun gear in the primary carrier
assembly.
NOTE: The convex or pointed end of the second sun
gear must point inward toward the housing assembly.
Figure B–86. Assemble Secondary Carrier Assembly
16. Lubricate and assemble the three planetary gears on
the secondary carrier assembly.
Figure B–87. Install Secondary Carrier Assembly
17. Install the secondary carrier, aligning and engaging
the three planetary gears with the ring gear assembly
and second sun gear.
Figure B–88. Install Brake Gear
18. Install the brake gear on the shaft.
To Next Page
