Simplicity LTH Series Service Manual

7 - 51
7 Transmission Repair
7C Tuff Torq K60

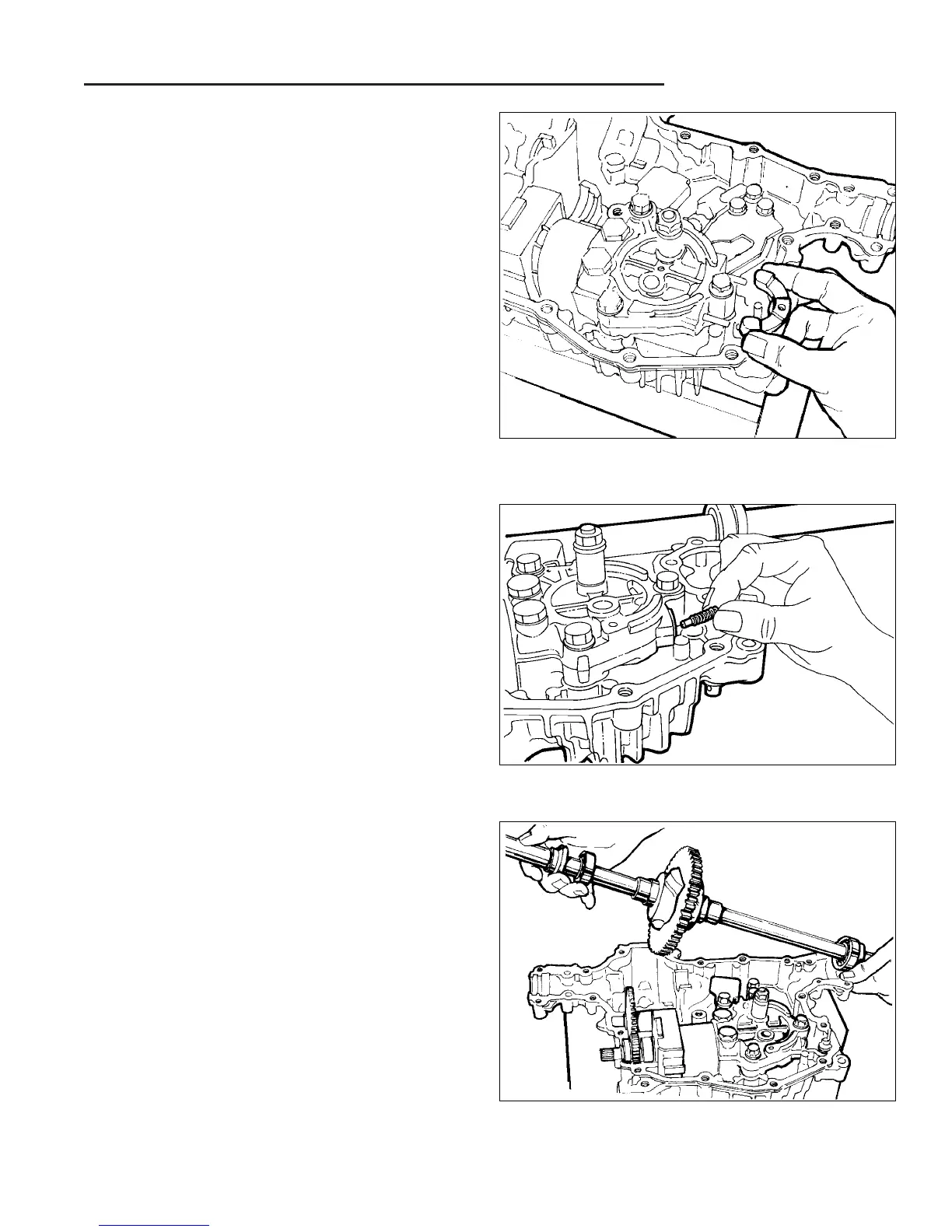

9. Remove the pivot arm from the bypass shaft.
Figure C–23. Remove Pivot Arm
10. Remove the two push pins, springs and valves from
the center case.
Figure C–24. Remove Bypass Pins and Springs
11. Remove the axle shaft assembly and differential gear
assembly.
Figure C–25. Remove Axle and Differential
