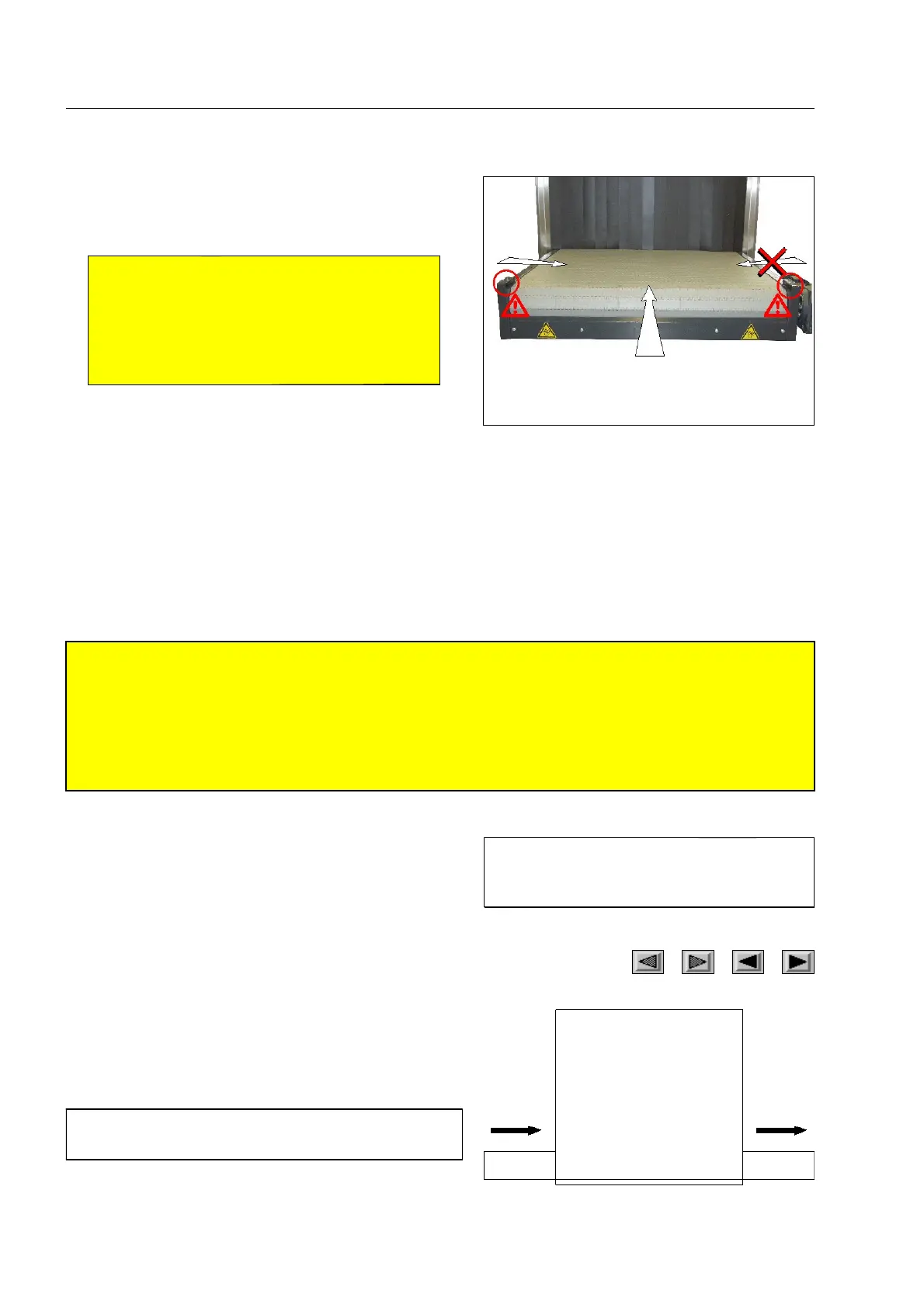

How to carry out inspections
Modular plastic belt conveyors may only be loaded
and unloaded from the front side and from the side on
which no motor is installed.
How to control the scanning process
S
Attention!
If the HI-SCAN X-ray unit is equipped with one of the options Full-reverse mode*, Reverse
scanning*, Continuous scanning*, Second conveyor control*, contact mat*, attendance detector*,
safety switches* at the conveyor ends and/or the tunnel entrances and exits (conveyor end or over-
size detectors*), or if the X-ray inspection unit is integrated into a baggage handling system, the
X-ray unit works differently from the standard operation described in the following! Read the para-
graphs dealing with the options ( F 1-52) before you carry out a scan! 900
Depending on the setting the X-ray unit works in the one-
way or automatic return mode*.
You recognize the conventional one-way mode by one of the adjacent arrows in
the indication field on the screen (F 1-25).
In the one-way mode the objects to be scanned are placed
on the conveyor at the tunnel entrance, they are then con-
veyed through the tunnel and scanned. The objects then
run out at the tunnel exit.
95587412 01/01/09 © Smiths Heimann
S
Attention!
Lateral loading and unloading from the mo-
tor side is not permitted! Avoid any contact
between forklift truck* and conveyor and
light barriers on the conveyor's corners!
890
I
This operating mode facilitates the fast examina-
tion of many objects.
1-46
I
Users with higher access level can
switch over between the one-way and
automatic return mode.
