6-1
DCR-TRV240/TRV340
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
KR : Korea model
JE : Tourist model
AR : Argentina model
BR : Brazilian model
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

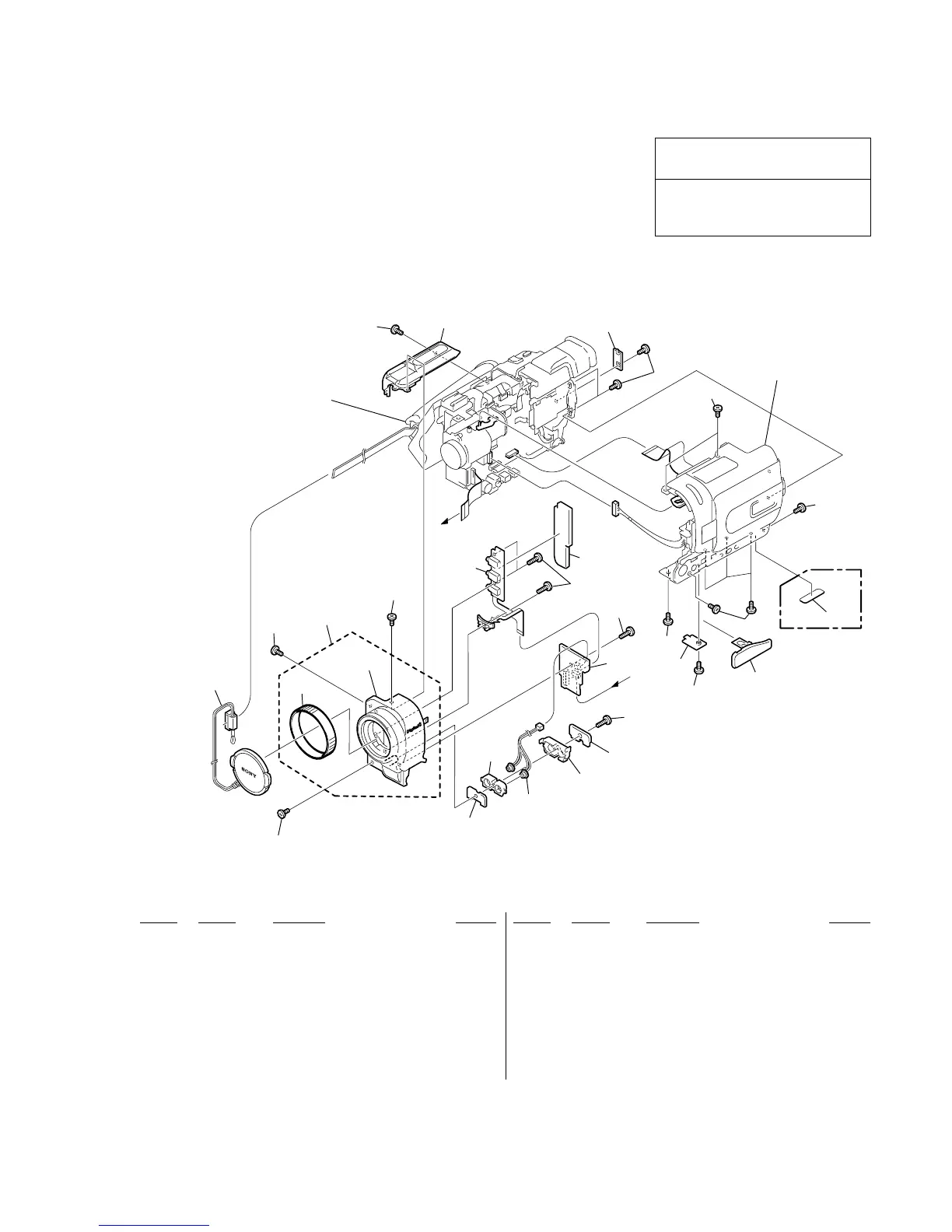

6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SONY
A
A
Cabinet (R) section
(See page 6-5)
Cabinet (L) section-1,-2
(See page 6-2,6-3)
ns
16
1
1
2
4
1
1
3
5
6
MIC901
7
8
9
9
9
11
13
12
10
14
1
1
1
15
17
1
1
1
(TRV240 : US/
TRV340 : US)
1 3-067-347-01 MI SCREW M2 (H)
2 3-065-310-01 RING, RUBBER
3 X-3949-376-1 CAP (N) ASSY, LENS
4 X-3952-131-1 PANEL ASSY (24), FRONT
5 3-072-279-01 CUSHION (F), MICROPHONE
6 3-072-278-01 HOLDER, MICROPHONE
7 3-072-277-01 RETAINER, MICROPHONE
8 3-072-307-01 SHEET, MICROPHONE
9 3-065-567-01 TAPPING (M1.7)
10 A-7078-047-A SI-032 BOARD, COMPLETE
11 1-683-627-21 FP-411 FLEXIBLE BOARD
12 3-072-309-01 CUSHION (1), F
13 3-065-326-01 CABINET (UPPER)
14 3-072-271-01 LID (BT), CPC
15 3-072-343-01 COVER, JACK
16 3-072-344-01 RETAINER, JACK COVER
* 17 3-704-367-01 LABEL (TRV240:US/TRV340:US)
MIC901 1-542-477-11 MICROPHONE
ns : not supplied
