6-6
DCR-TRV240/TRV340

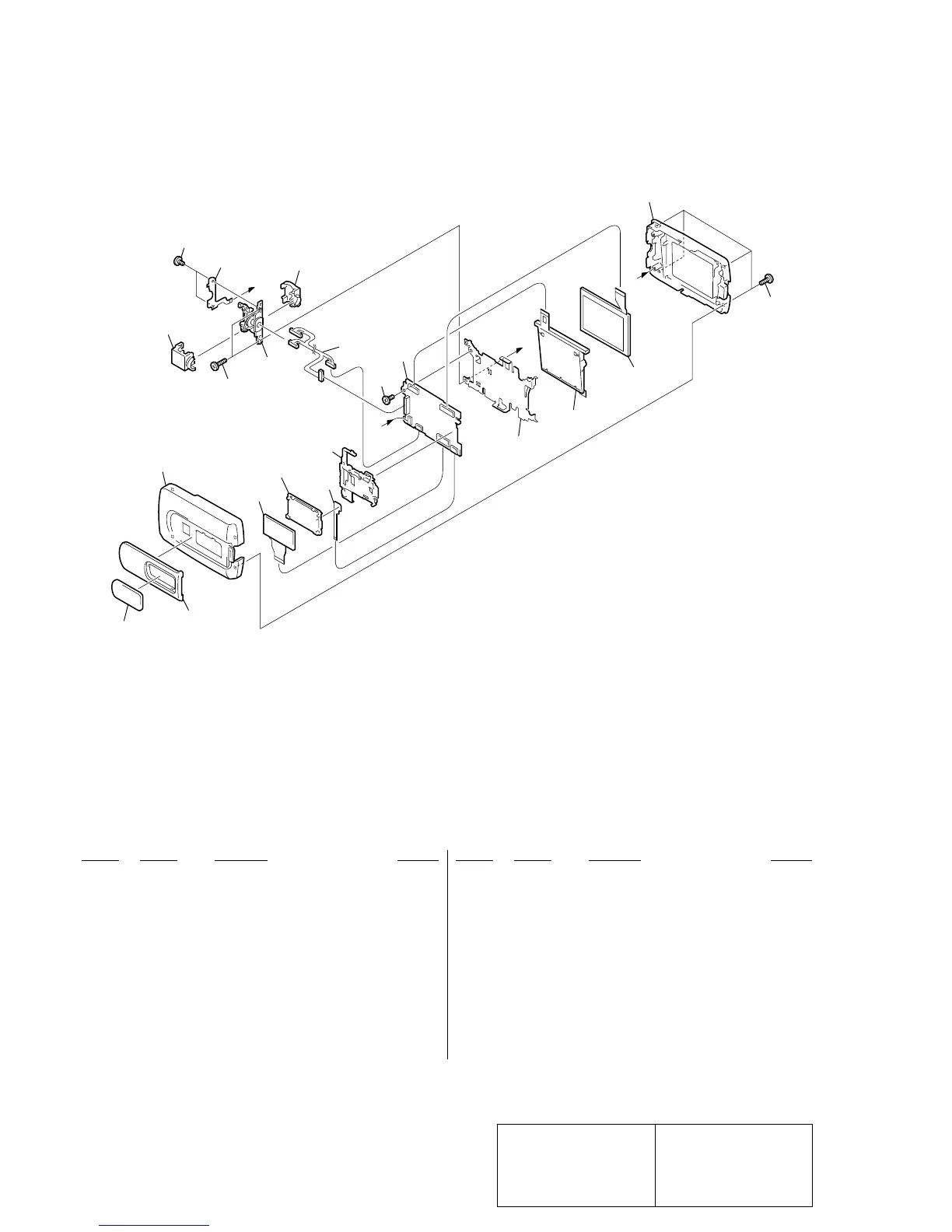

6-1-6. LCD SECTION
PD-160
Board
A
A
B
B
D902
LCD902
251
252
253
254
255
258
263
259
260
262
261
256
256
257
264
LCD901
ND901
265
266
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 3-072-272-01 WINDOW, LCD
252 X-3952-189-1 COVER (2) ASSY, CPC (TRV340)
252 X-3952-192-1 COVER (2) ASSY, CPC (TRV240)
253 3-072-341-01 CABINET (C (2)), P
254 1-683-629-11 FP-414 FLEXIBLE BOARD
255 3-072-286-01 HOLDER, LCD
256 4-974-725-01 SCREW (M1.7X2.5), P
257 A-7078-052-A PD-160 (X6) BOARD, COMPLETE
258 1-961-556-11 HARNESS (PD-117)
259 3-318-203-11 SCREW (B1.7X6), TAPPING
260 3-072-288-01 COVER (C), HINGE
261 1-683-628-21 FP-412 FLEXIBLE BOARD
262 X-3952-147-1 HINGE ASSY
263 3-072-287-01 COVER (M), HINGE
264 3-072-403-01 FRAME (2), P
265 X-3952-150-1 CABINET (M) (2) ASSY, P
266 3-065-567-01 TAPPING (M1.7)
0 D902 1-518-721-11 LIGHT, BACK
LCD901 8-753-050-65 ACX308AK-1
LCD902 A-7028-811-A INDICATION LCD BLOCK ASSY
0 ND901 1-518-796-11 TUBE, FLUORESCENT,COLD CATHODE
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

Sony DCR-TRV240 Specifications

General

Digital zoom	700 x
Optical zoom	25 x
Image stabilizer	Yes
Focal length range	2.4 - 60 mm
Sensor type	CCD
Total megapixels	0.8 MP
Optical sensor size	1/6 \
Display diagonal	2.5 \
Minimum illumination	4 lx

Weight and Dimensions

Depth	101 mm
Width	85 mm
Height	206 mm
