Sony DCR-TRV240 User Manual

6-5
DCR-TRV240/TRV340

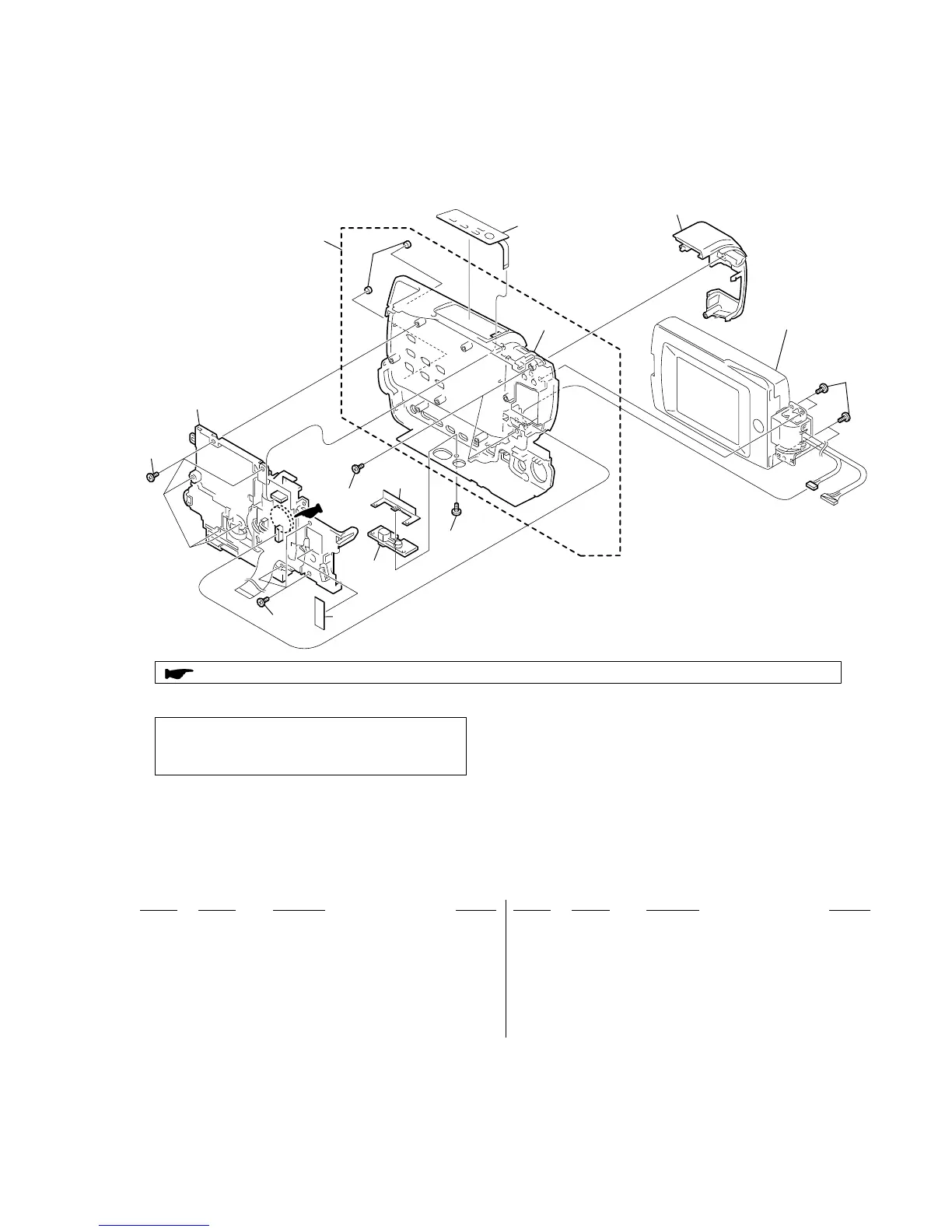

6-1-5. CABINET (R) SECTION
ns
LCD section
(See page 6-6)
201
202
202
202
206
205
202
204
207
209
210
208
203
: The printed wiring board of the Control switch block (CF-2500) on which BT001 (lithium battery) is mounted, is not shown.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-941-343-21 TAPE (A)
202 3-948-339-61 TAPPING
203 1-477-085-11 SWITCH BLOCK, CONTROL (CF-2500)(TRV240)
203 1-477-085-21 SWITCH BLOCK, CONTROL (CF-2500)(TRV340)
204 3-065-373-01 SCREW (Y), TRIPOD
205 3-072-455-01 RETAINER, TRIPOD
206 3-067-347-01 MI SCREW M2 (H)
207 X-3952-129-1 CABINET R (2) ASSY (TRV340)
207 X-3952-135-1 CABINET R (2) ASSY (TRV240)
208 3-959-978-02 CUSHION, PANEL
209 1-477-084-31 SWITCH BLOCK, CONTROL (FK-2500)
210 X-3952-133-1 RING (2) ASSY, ORNAMENTAL (TRV340)
210 X-3952-137-1 RING (2) ASSY, ORNAMENTAL (TRV240)
ns : not supplied
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

Sony DCR-TRV240 Specifications

General

Digital zoom	700 x
Optical zoom	25 x
Image stabilizer	Yes
Focal length range	2.4 - 60 mm
Sensor type	CCD
Total megapixels	0.8 MP
Optical sensor size	1/6 \
Display diagonal	2.5 \
Minimum illumination	4 lx

Weight and Dimensions

Depth	101 mm
Width	85 mm
Height	206 mm
