Sony DCR-TRV240 User Manual

6-3
DCR-TRV240/TRV340

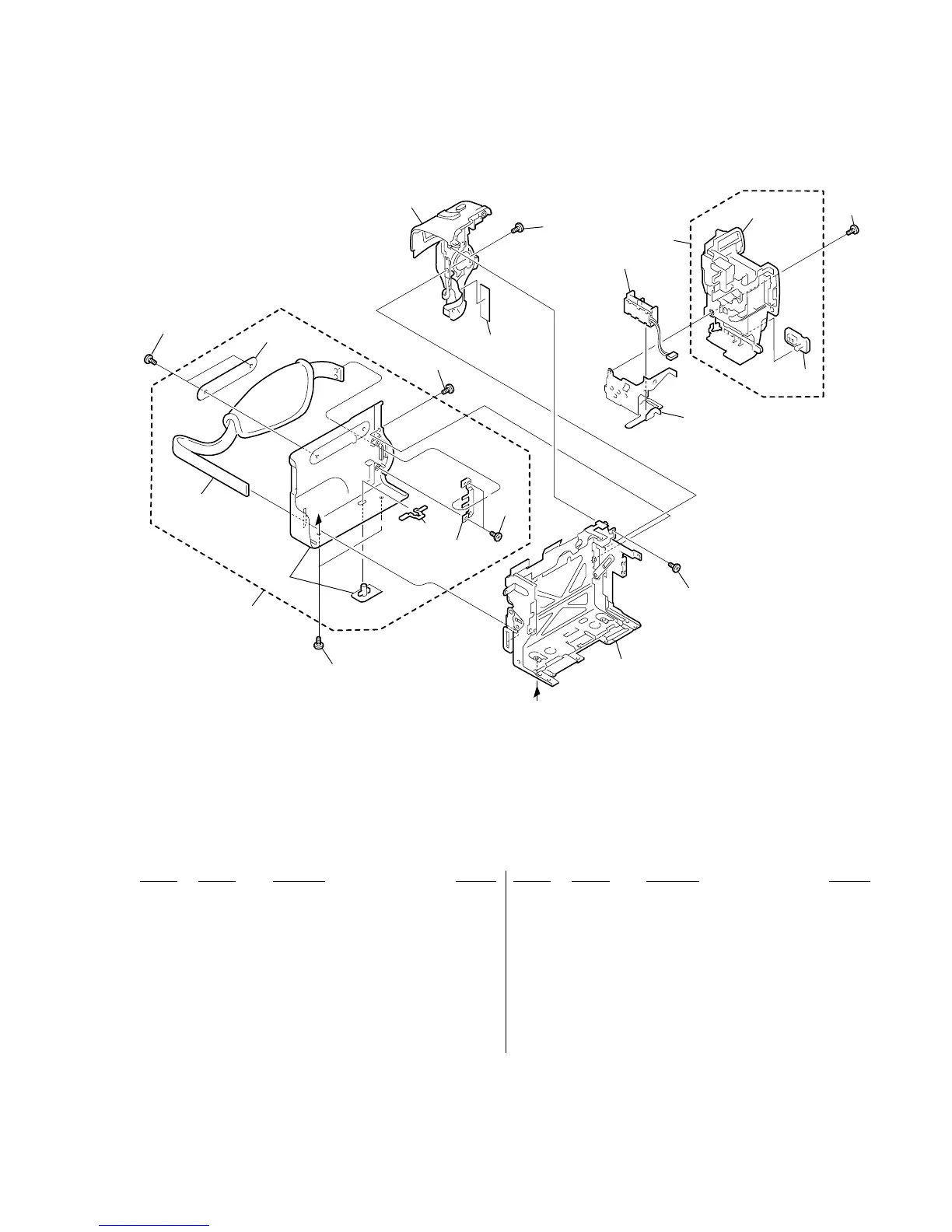

6-1-3. CABINET (L) SECTION-2
A
A
ns
ns
ns
103
108
102
103
114
107
110
111
109
112
105
104
103
101
103
BT901
106
113
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-3951-159-1 CABINET (L) ASSY
102 3-052-815-01 BELT (ES), GRIP
103 3-067-347-01 MI SCREW M2 (H)
104 3-065-308-01 LABEL (L)
105 3-978-765-01 SLIDER, G LOCK
106 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
107 1-476-415-11 SWITCH BLOCK, CONTROL (SS-1380)(TRV340)
107 1-476-415-21 SWITCH BLOCK, CONTROL (SS-1380)(TRV240)
108 4-974-725-01 SCREW (M1.7X2.5), P
109 3-941-343-21 TAPE (A)
110 X-3952-148-1 PANEL ASSY (MS), BATTERY
(TRV340:US,CND,E,HK,KR,JE,AR)
110 X-3952-149-1 PANEL ASSY, BATTERY (TRV240)
110 X-3952-276-1 PANEL ASSY (MS), BATTERY (TRV340:BR)
111 3-072-305-01 LID (2500), JACK
112 3-072-274-01 SHEET METAL (LOWER), STRAP
113 X-3952-136-1 FRAME ASSY (25), CS
114 3-065-567-01 TAPPING (M1.7)
BT901 1-694-772-11 TERMINAL BOARD, BATTERY
