Sony DCR-TRV240 - Section 2 Disassembly; Front Panel Section and SI-032 Board Removal

2-4
DCR-TRV240/TRV340

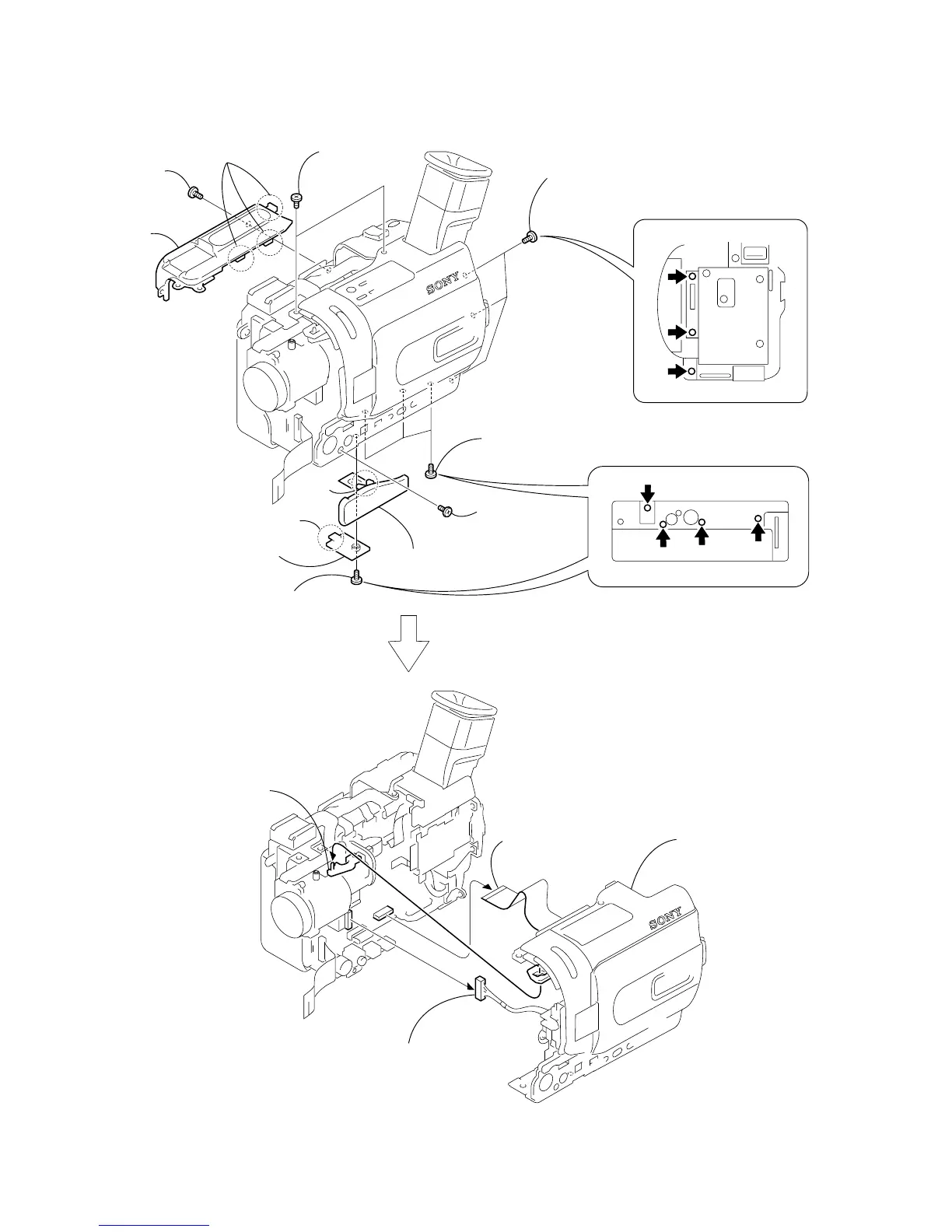

2-3. CABINET (R) SECTION
2 Three claws
5 Claw
7 Claw
qh Cabinet (R) block
section
qg Harness
(PD-117) (20P)
3 Cabinet
(upper)
qd Night-Shot switch of
Lens device (LSV-700A)
1 MI screw
(M2
× 4) (H)
qf Control switch block
(CF-2500) (22P)
q; Three MI screws
(M2
× 4) (H)
qa Three MI screws
(M2
× 4) (H)
4 MI screw
(M2
× 4) (H)
9 MI screw
(M2
× 4) (H)
6 Jack cover retainer
8 Jack cover
qs Two MI screws
(M2
× 4) (H)
