Playingthepictureon
aTV
A/V OUT lac_

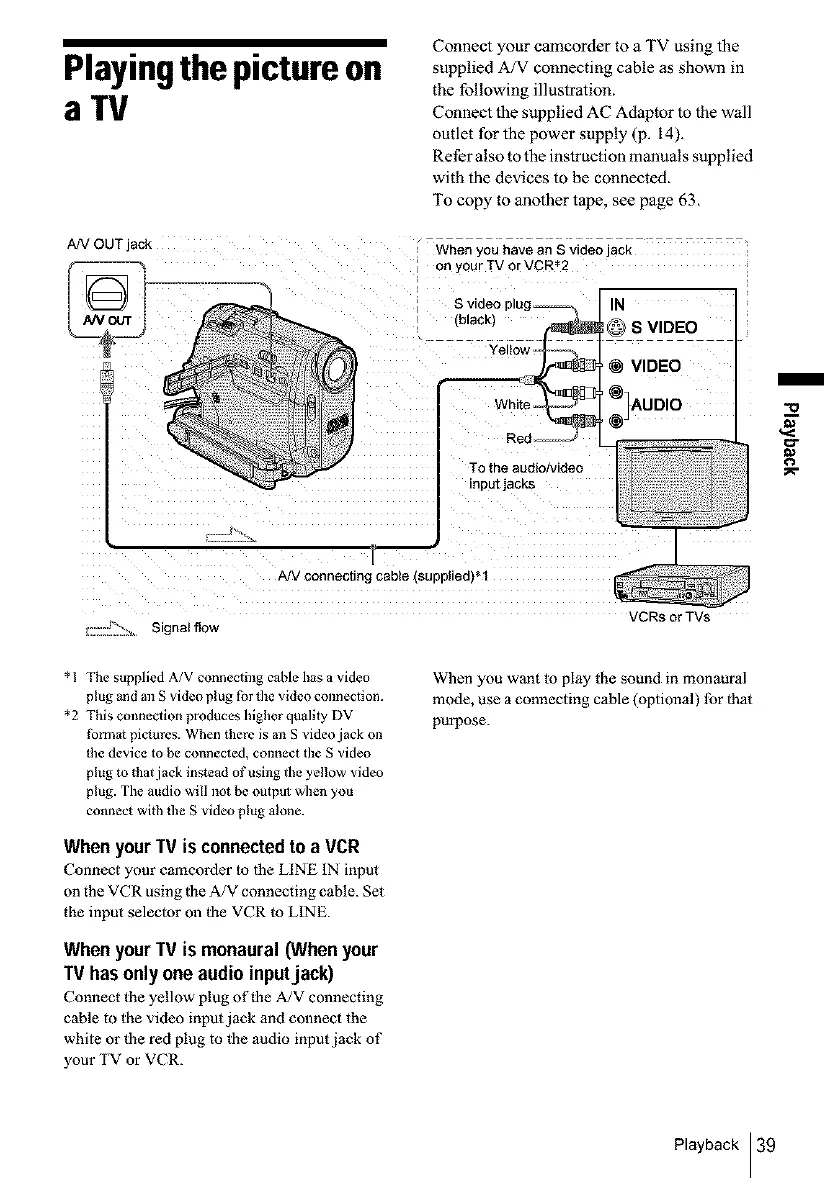

Connect your camcorder to a TV using the
supplied A/V connecting cable as shown in
the following illustration.
Connect the supplied AC Adaptor to the wall
outlet for the power supply (p. 14),
Refer also to the instruction manuals supplied
with the devices to be connected.
To copy to another tape, see page 63,
When you have an S video Jac-
on your TV or VCR*2
S video plug
(black)
Red. #
IN
@ S VIDEO
VIDEO
_)AUD,O
To the audio/video
nput jacks
_v connecting 6ao_e (,supplleO)_l
I:2::_, Signal flow
VCRs or TVs
.,e
*1 The supplied A/V connecting c_ble has a video
plug and an S video plug for fl_e video connection.
*2 This connection produces higher quality DV
tbrm_t picnurcs. When d_ere is an S video jack on
the device to be connected, connect the S video
plug to that jack instead of using the yellow video
plug. The audio will not be output when you
connect with d_e S video plug alone.
WhenyourTV is connectedto a VCR
Connect your camcorder to 1he LINE IN input
on the VCR using _be A/V connecting cable. Set
the input seleclor on |be VCR to LINE.
WhenyourTV is monaural (When your
TV hasonly one audioinputjack)
Connect the yellow plug of the A/V connecting
cable m the video input jack and connect the
while or the red plug to |be audio input jack of
your TV or VCR.
When you want to play the sound in monaural
mode, use a connecting cable (optional) lbr lhat
purpose.
Playback 39
