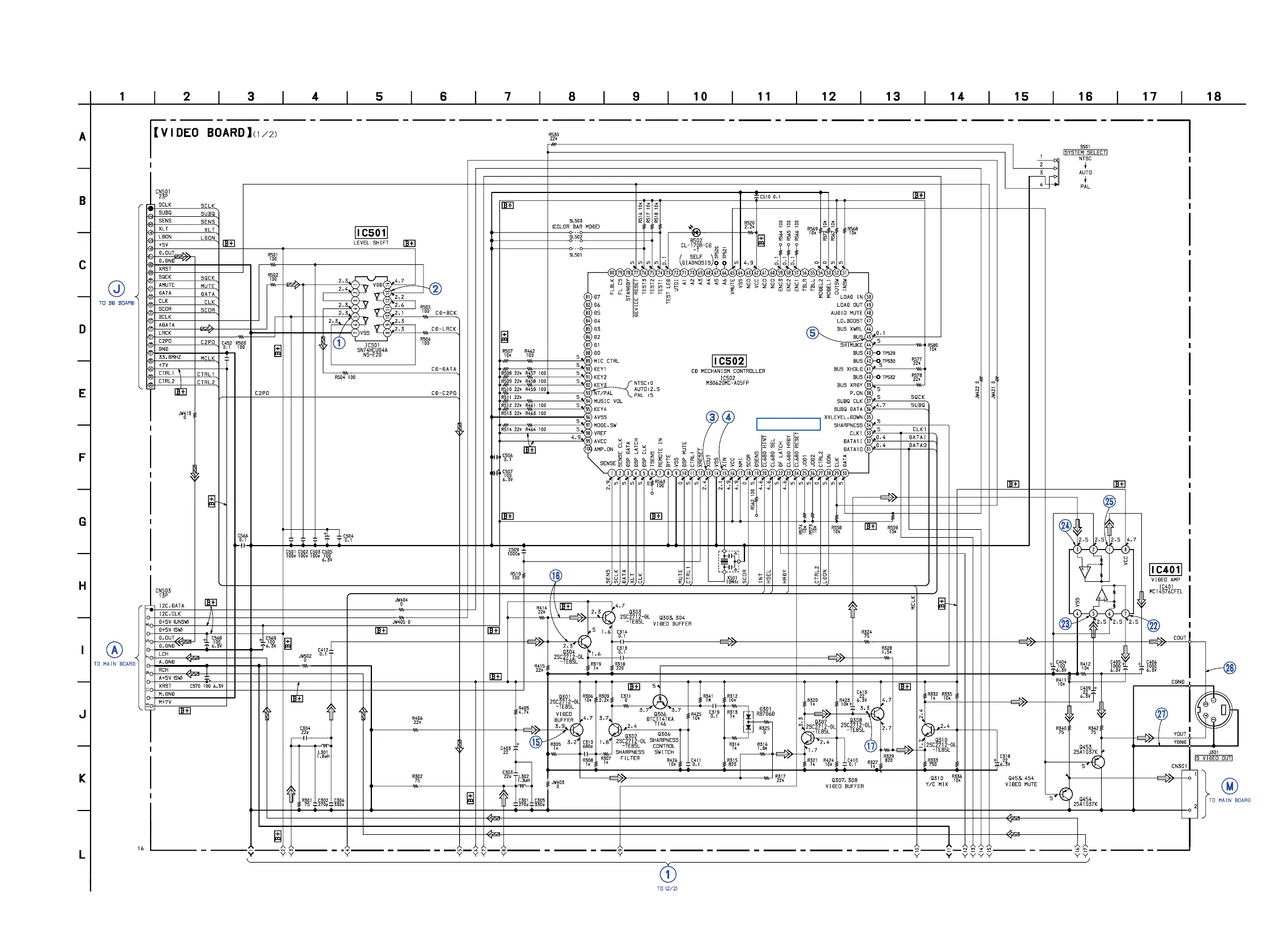

6-3. SCHEMATIC DIAGRAM VIDEO Board (1/2)
• See page 39 for Waveforms.
• See page 59 for IC Pin Function Description.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : VIDEO CD PLAY
(Page 29)
(Page 37)
(Page 36)
3
3
PIN FUNCTION
