Sony HCD-LV100AV User Manual

9

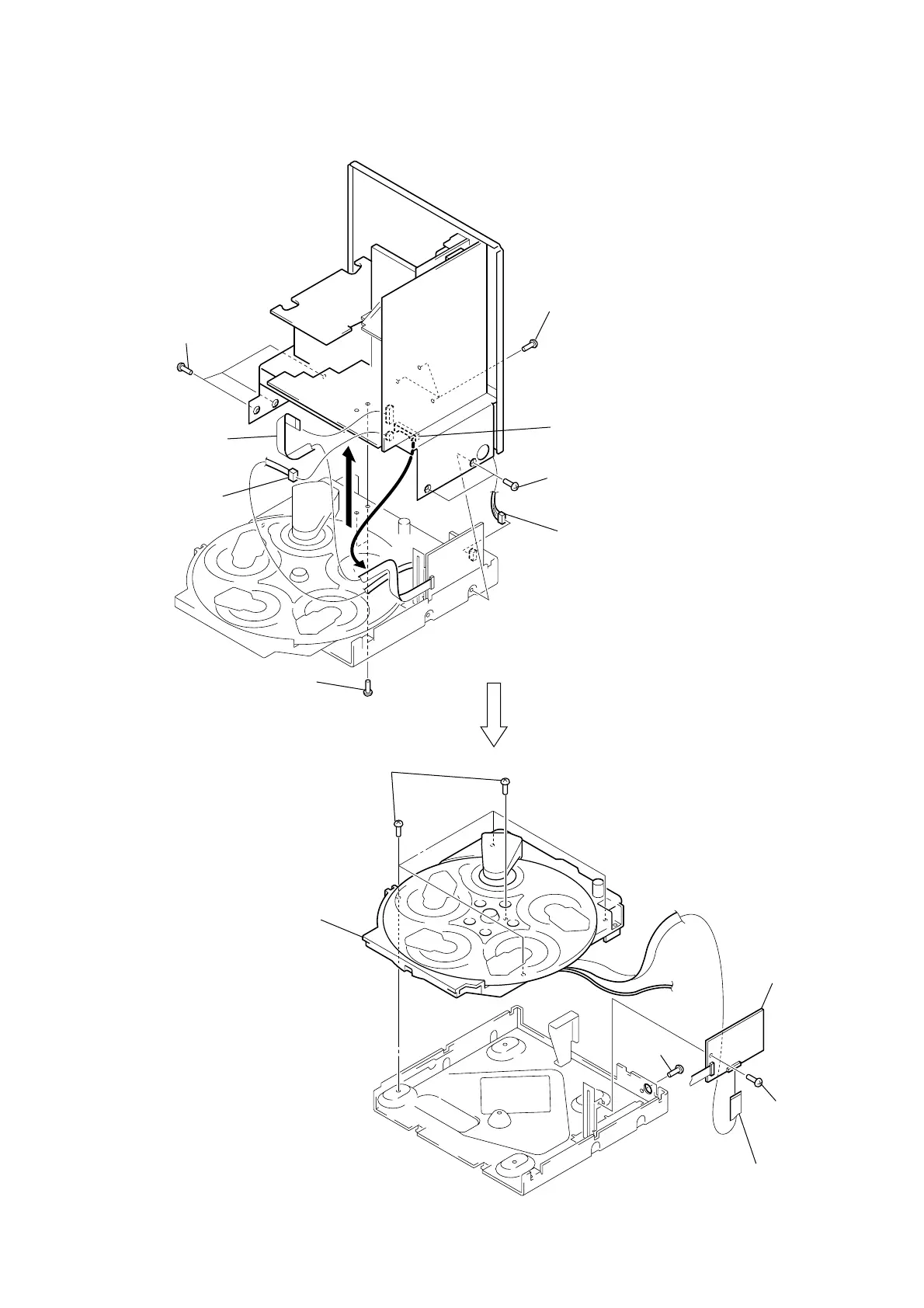

3-5. CD MECHANISM DECK (CDM37L-5BD34L)
8 Two screws
(BVTP3 × 8)
CD mechanism dec
3 Video board
4 Wire (flat type)
(23 core) (CN501)
k
(CDM37L-5BD34L)
6 Three screws
(BVTP3 × 8)
7 Two screws
(BVTP3 × 8)
5 Two screws
(BVTP3 × 8)
2 Connector
(CN412)
1 Wire (flat type)
(13 core) (CN411)
3 Open the cable clamp
5 Five screws
(BVTP3 × 8)
2 Screw
(BVTP3 × 8)
1 Screw
(BVTP3 × 8)
6
9
4
Connector
(CN301)
