Sony HCD-LV100AV User Manual

HCD-LV100AV
3333

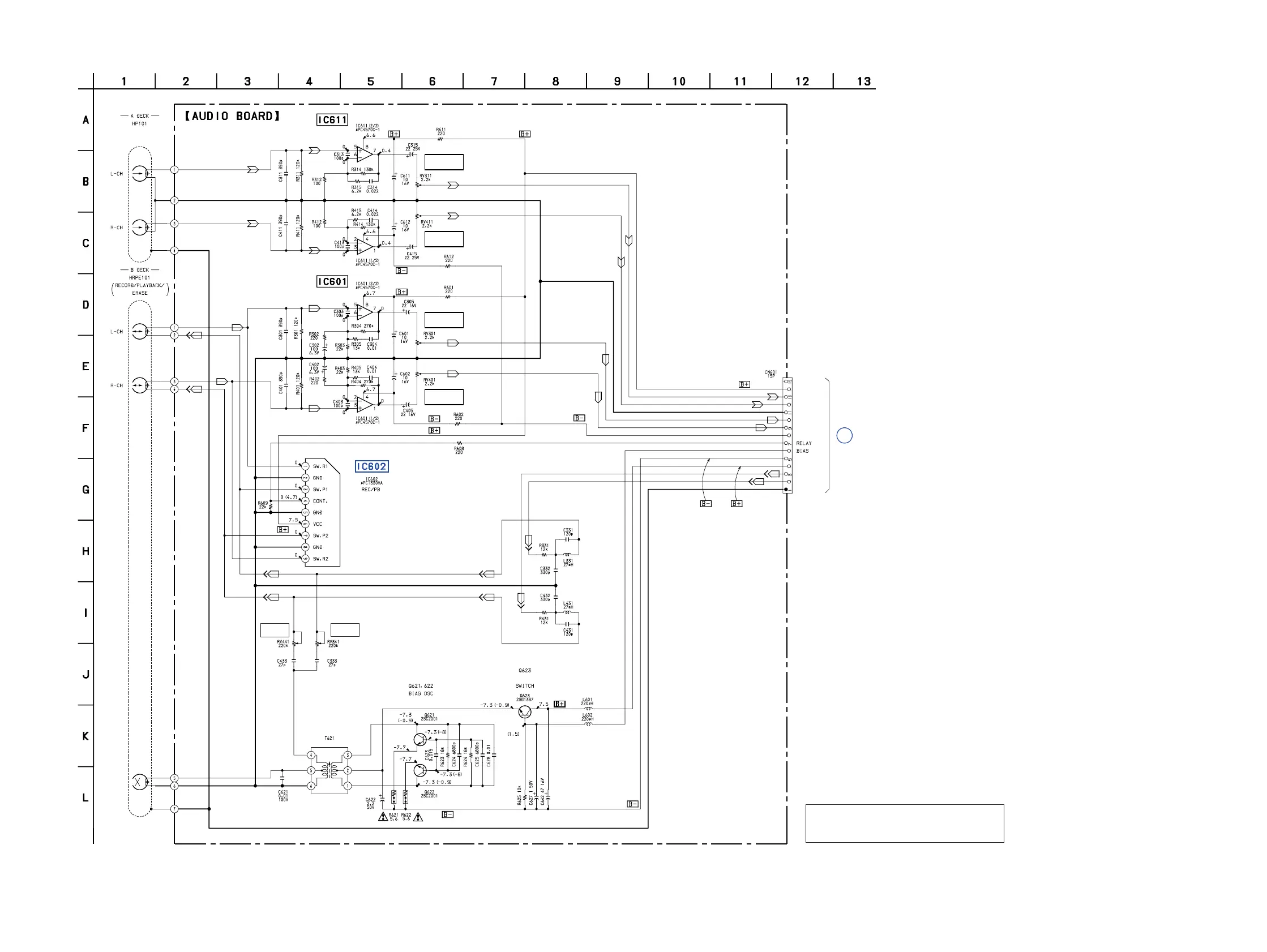

6-11. SCHEMATIC DIAGRAM AUDIO Board
• See page 55 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: TAPE PLAY
( ) : RECORD
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
PB LEVEL (L)
(DECK A)
PB LEVEL (R)
(DECK A)
PB LEVEL (L)
(DECK B)
PB LEVEL (R)
(DECK B)
PB EQ AMP
(DECK A)
PB EQ AMP
(DECK B)
SWITCHING
REC BIAS (L)
(DECK B)
REC BIAS (R)
(DECK B)
BIAS OSC
REC BIAS
-6.8
(PLAYBACK)
E
NC
A +7.5V
APB–LCH
APB–RCH
AGND
BPB–LCH
BPB–RCH
A –7.5V
–VBIAS (–7.5V)
+VBIAS (+7.5V)
B–REC–RCH
B–REC–LCH
TC–HEAD–GND
16
TO
MAIN
BOARD
(Page 37)
