Sony HCD-LV100AV User Manual

HCD-LV100AV
2929

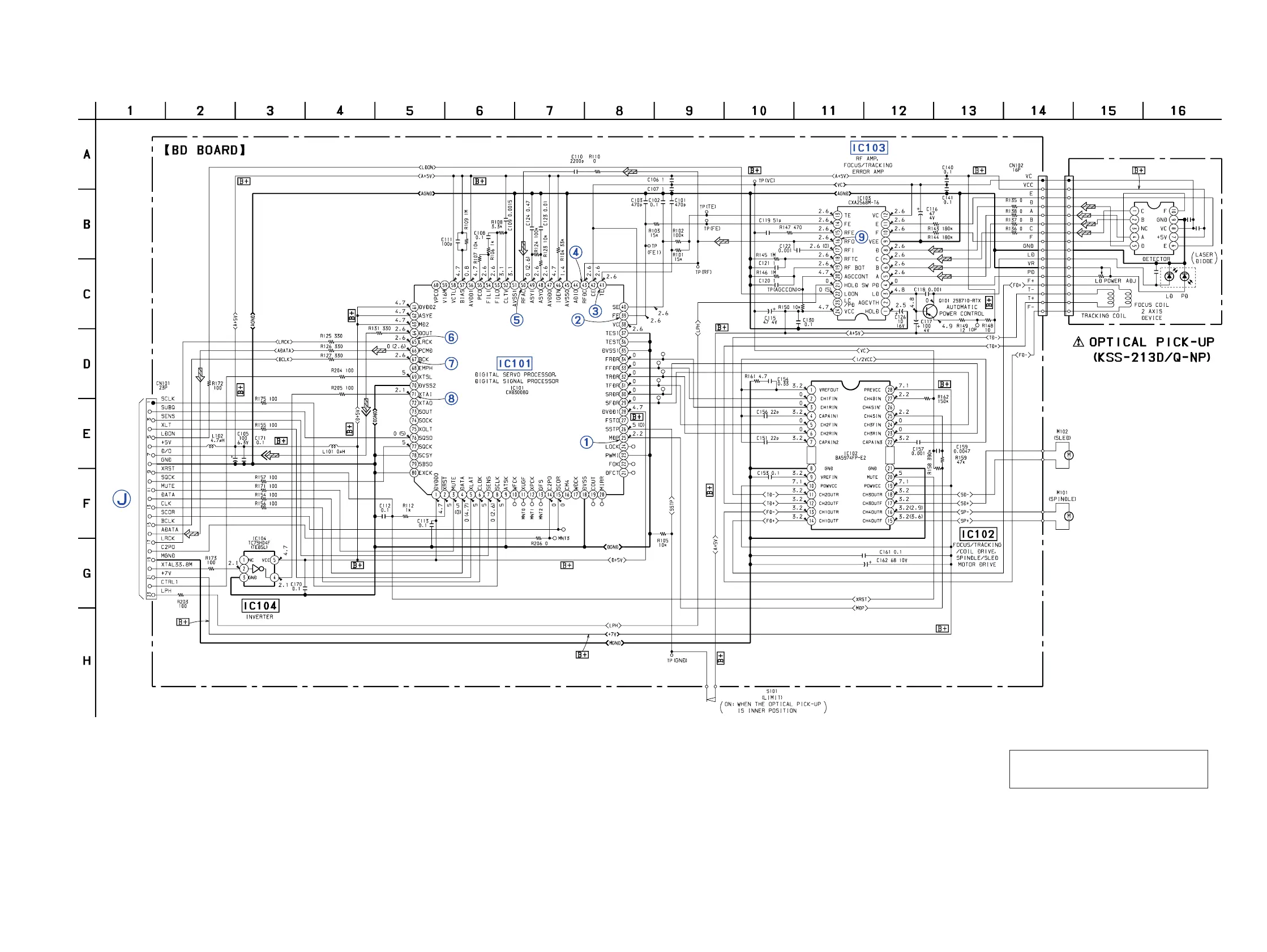

6-7. SCHEMATIC DIAGAM BD Board
• See page 39 for Waveforms.
• See page 54 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: CD STOP
( ) : CD PLAY
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
TO
VIDEO
BOARD
16
(Page 25)

Sony HCD-LV100AV Specifications

General

Brand	Sony
Model	HCD-LV100AV
Category	Stereo System
Language	English
