SECTION 7
EXPLODED VIEWS
64
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
EA : Saudi Arabia model.
SP : Singapore model.
MY : Malaysia model.
IA : Indonesian model.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.

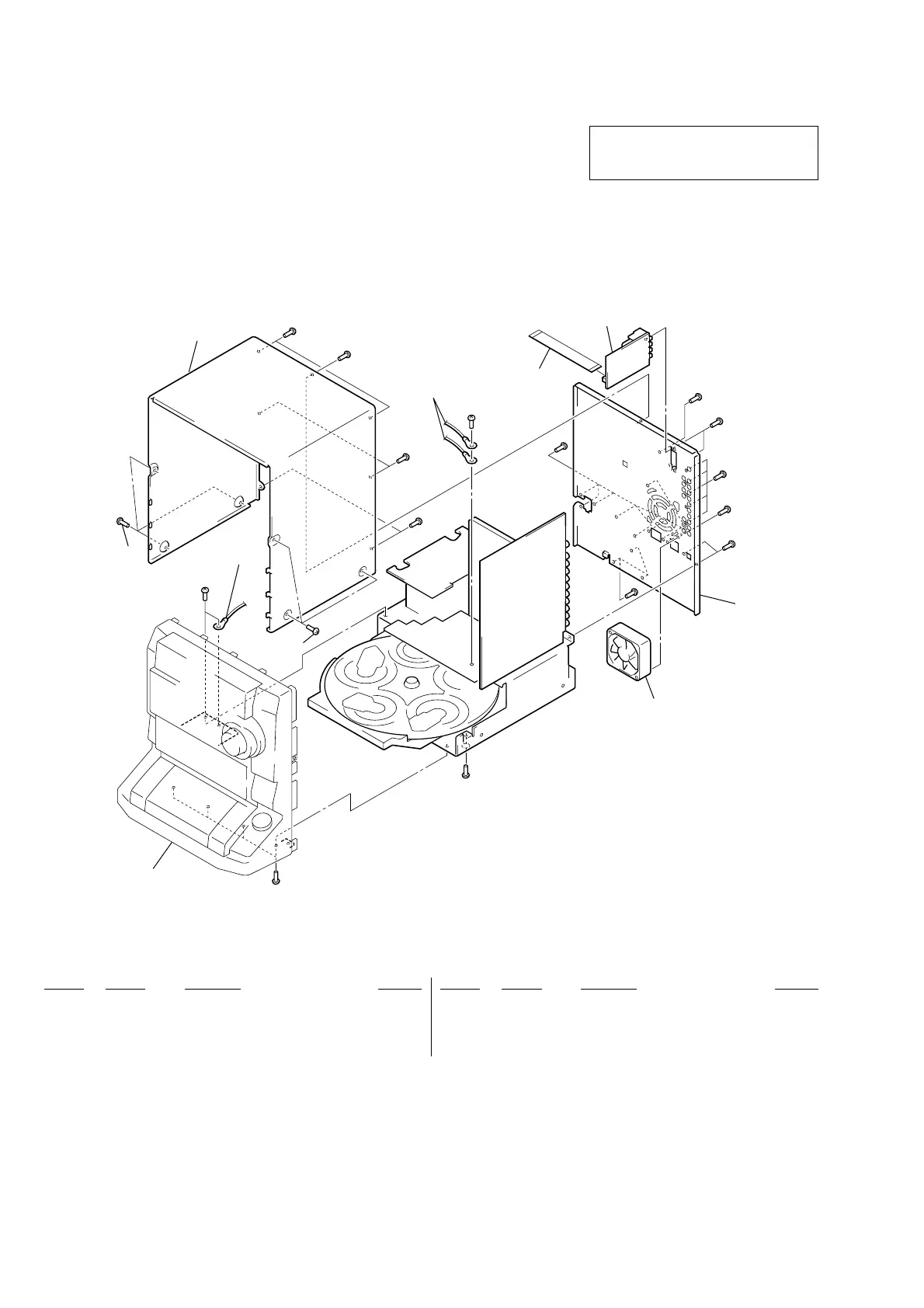

7-1. CASE, BACK PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
1
2
#1
#1
#3
#3
#3
#3
M901
#3
#3
#3
#3
#3
#3
#3
#3
#2
not
supplied
not
supplied
Front panel
4
3
5
1 3-363-099-01 SCREW(CASE 3 TP2)
2 4-214-777-51 UPPER CASE
3 1-693-488-11 TUNER(FM/AM)
4 4-227-751-41 PANEL, BACK (MY,SP)
4 4-227-751-51 PANEL, BACK (EA)
4 4-227-751-71 PANEL, BACK (IA)
5 1-769-977-11 WIRE(FLAT TYPE) (13 CORE)
M901 1-763-072-11 FAN, D.C.
To Next Page
