Sony HCD-LV100AV - Printed Wiring Board

HCD-LV100AV
4242

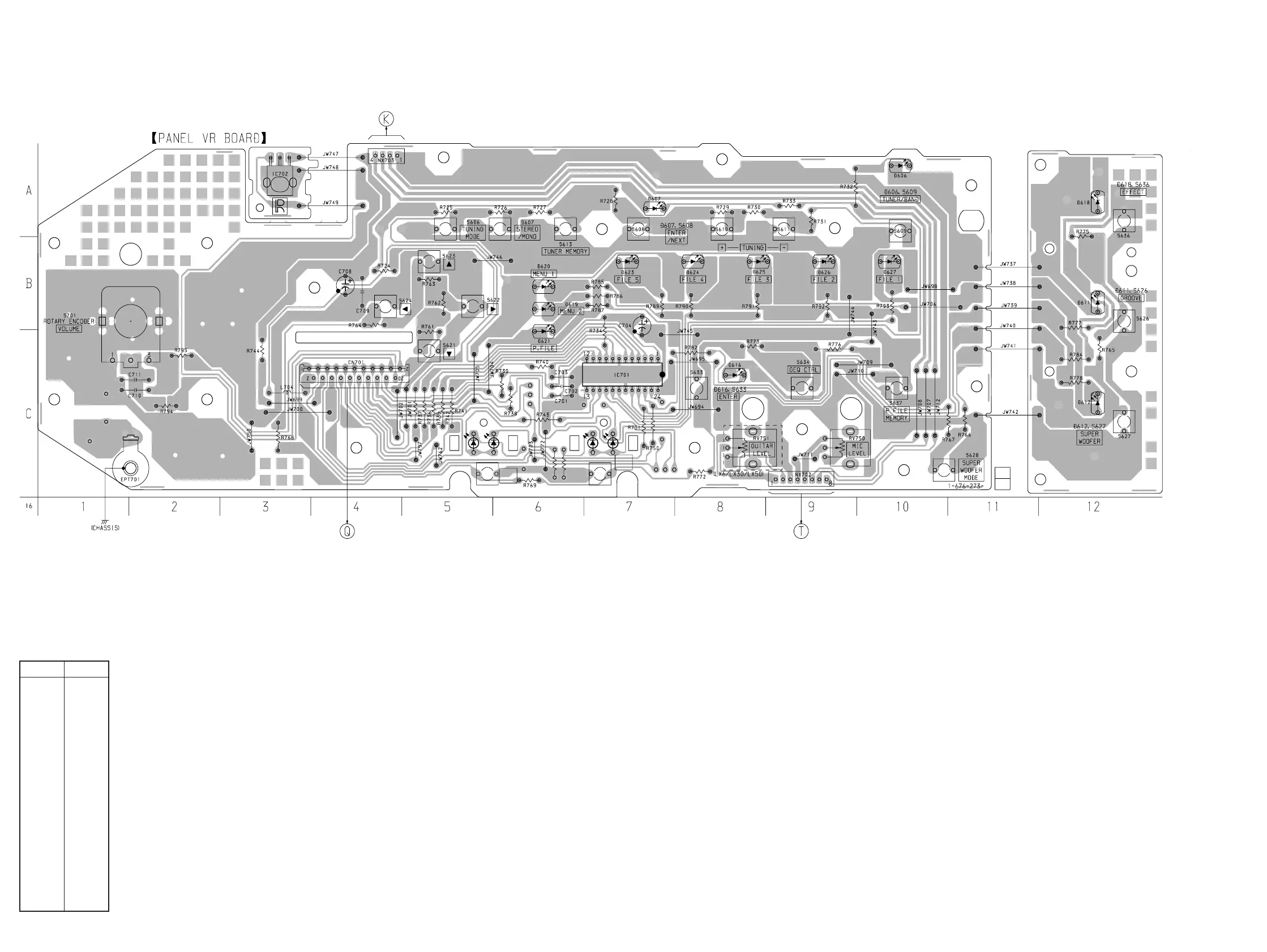

6-20. PRINTED WIRING BOARD PANEL VR Board
• See page 20 for Circuit Board Location.
Ref. No. Location
D606 A-10
D607 A-7
D611 B-12
D612 C-12
D613 C-5
D614 C-7
D616 C-8
D618 A-12
D619 B-6
D620 B-6
D621 B-6
D623 B-7
D624 B-8
D625 B-8
D626 B-9
D627 B-10
D698 C-5
D699 C-7
IC701 A-3
IC702 C-7
• Semiconductor
Location
DVD
5.1CH
PRO
LOGIC
S630
S629
D613 D698 D614 D699
R780 R779
TO
MAIN BOARD
TO
MIC BOARD
TO
PANEL FL
BOARD
11
(12)
(Page 35)
(Page 40)
(Page 46)
