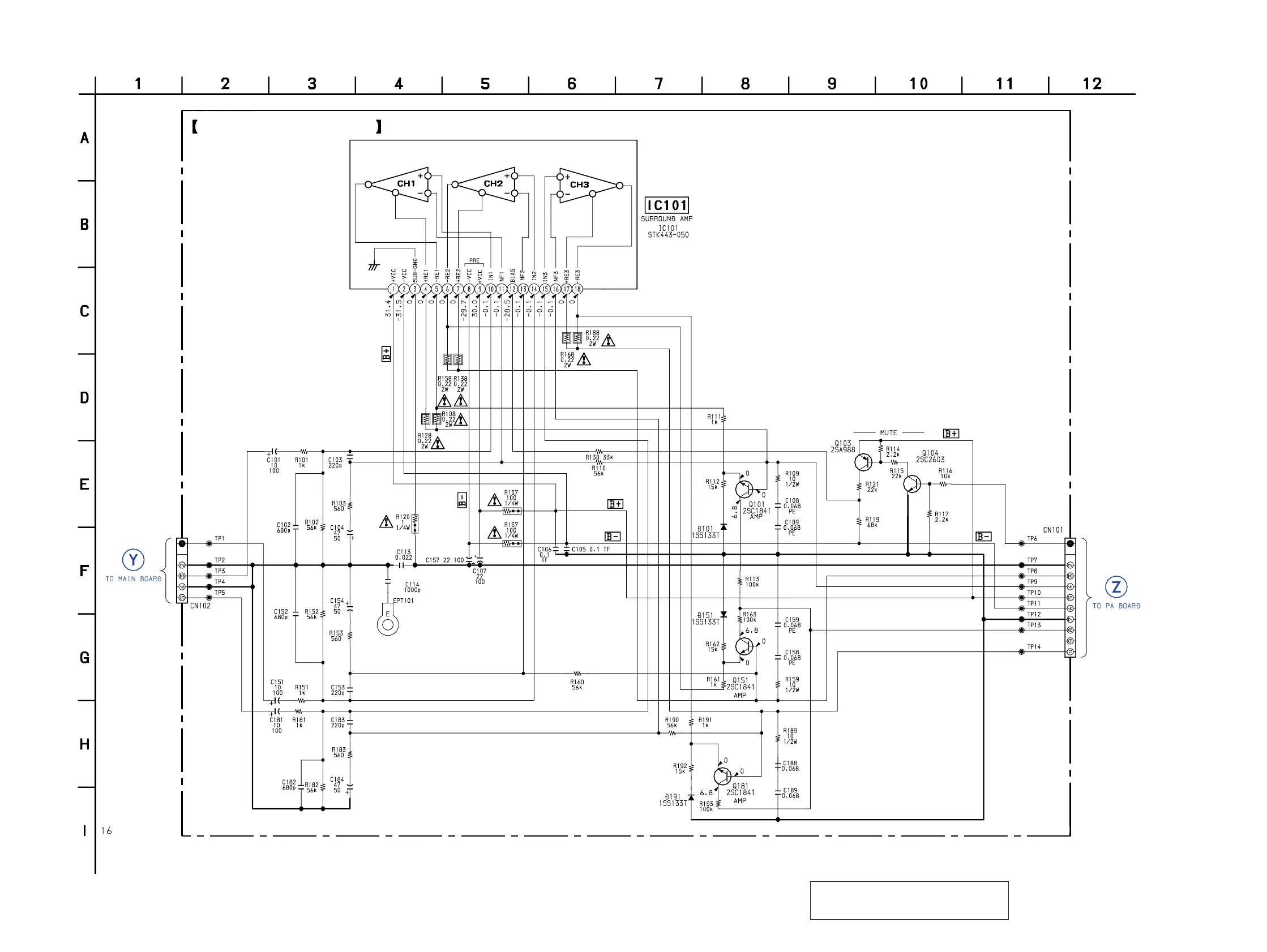

6-29. SCHEMATIC DIAGRAM SURROUND AMP Board
SURROUND AMP BOARD
(Page 36)
(Page 49)
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: FM
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
