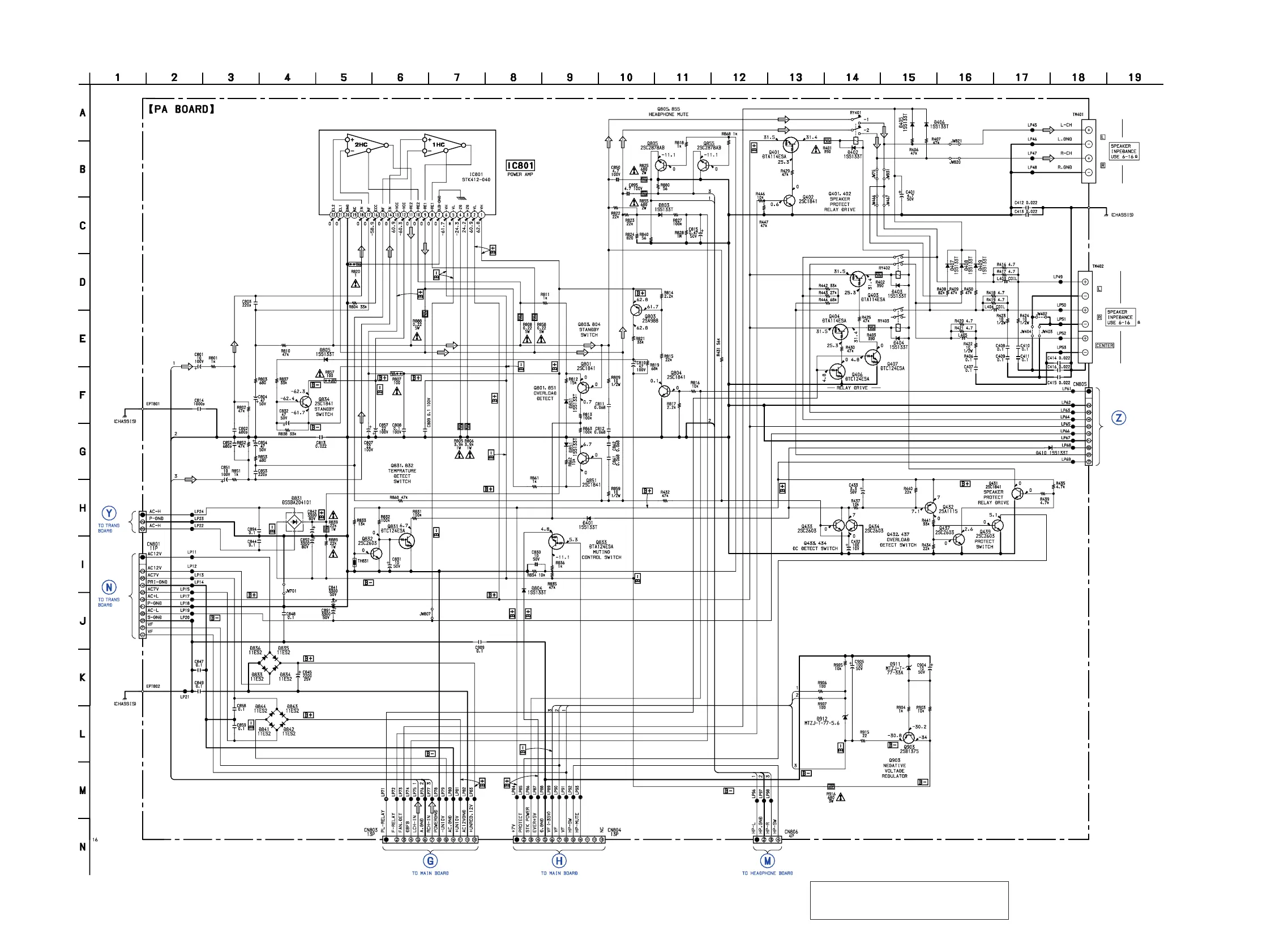

6-27. SCHEMATIC DIAGRAM PA Board
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: FM
(Page 53)
(Page 53)
(Page 38) (Page 38)
(Page 47)
(Page 51)
TO SURROUND
AMP BOARD
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
