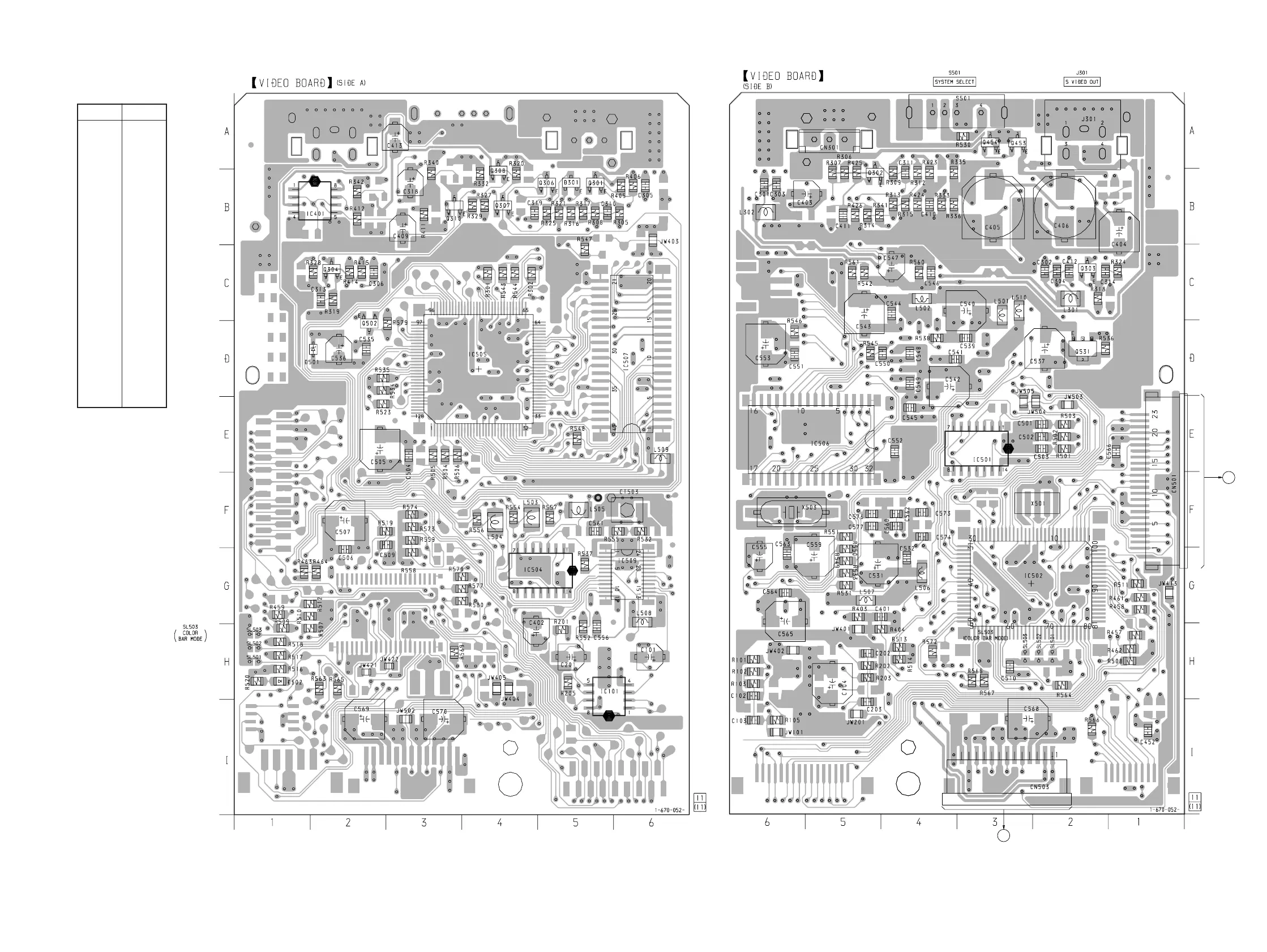

6-5. PRINTED WIRING BOARD VIDEO Board
• See page 20 for Circuit Board Location.
TP508
(27MHz)
16
J
TO
MAIN BOARD
A
TO
BD BOARD
16
(Page 28)
(Page 35)
Ref. No. Location
D301 B-5(A)
D501 D-2(A)
D502 H-1(A)
IC101 H-5(A)
IC401 B-2(A)
IC501 E-3(B)
IC502 G-3(B)
IC504 G-4(A)
C505 D-4(A)
IC506 E-5(B)
IC507 D-5(A)
IC509 G-5(A)
Q301 B-5(A)
Q302 B-5(B)
Q303 C-2(B)
Q304 C-2(A)
Q306 B-4(A)
Q307 B-4(A)
Q308 B-4(A)
Q310 B-3(A)
Q453 A-3(A)
Q454 A-3(A)
Q502 D-2(A)
Q531 D-2(B)
