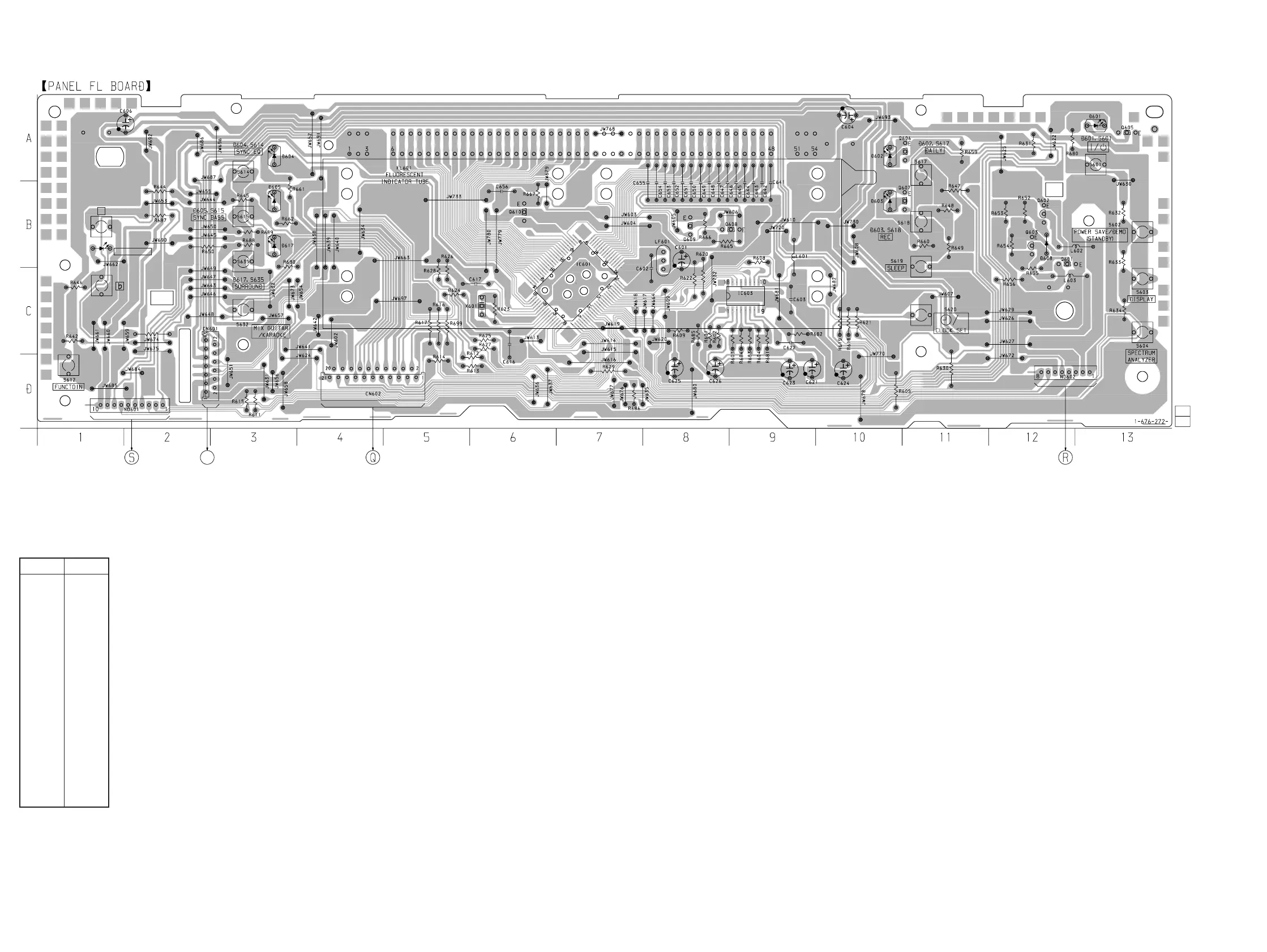

6-18. PRINTED WIRING BOARD PANEL FL Board
• See page 20 for Circuit Board Location.
Ref. No. Location
D601 A-13
D602 A-10
D603 B-10
D604 A-3
D605 B-3
D608 B-12
D617 B-3
D615 B-1
IC601 C-7
IC603 C-9
Q601 B-12
Q602 B-12
Q603 B-12
Q605 A-13
Q606 A-10
Q607 B-10
Q608 B-9
Q609 B-8
Q610 B-6
• Semiconductor
Location
16
11
(12)
#
S631
D615
KEY CONTROL
S616
R691
TO
TC-A BOARD
TO
PANEL VR BOARD
TO
MAIN BOARD
TO
TC-B BOARD
Z
(Page 44) (Page 35) (Page 42)
(Page 44)
