SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

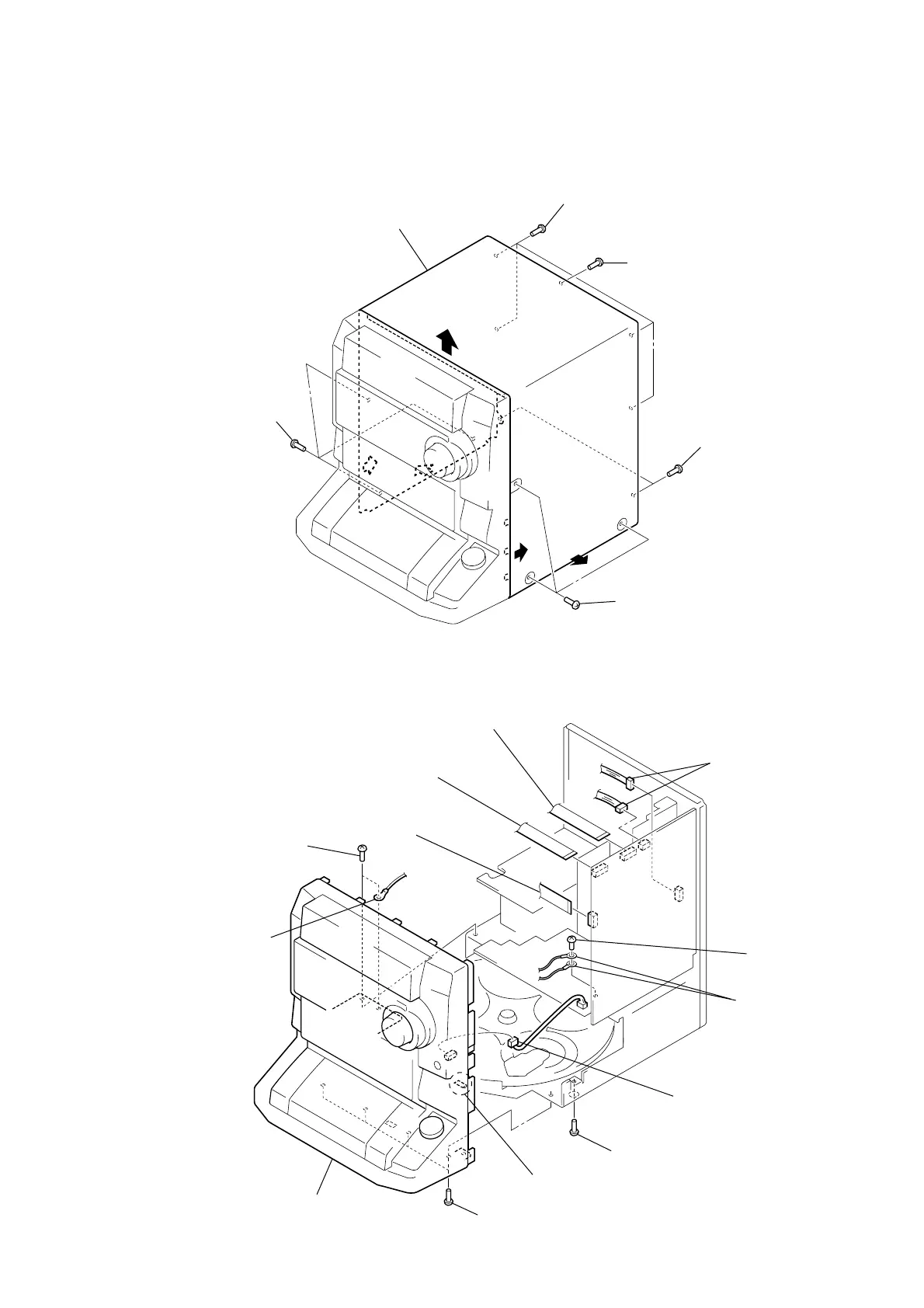

3-1. UPPER CASE
3-2. FRONT PANEL SECTION
(BVTT 3 × 6)
6 Upper case
3 Two screws
(BVTP3 × 8
)
4 Screws
(BVTP3 × 8)
1 Three screws
(CASE3 TP2)
5 Four screws
2 Three screws
(CASE3 TP2)
(Remove in the direction of the arrows)
(BVTP3 × 8)
Connector
(CN802)
Two lugs
Claw
1 Two connectors
(CN452, 702)
Wire (flat type)
(15 core) (CN303)
Wire (flat type)
(17 core) (CN304)
Wire (flat type)
(13 core) (CN431)
7 Two screws
(BVTP3 × 8)
Lug
Front panel section
(Be careful in has claws)
2
3
4
0
9
8
Screw (BVTP3 × 8)
5
6
Screw
(BVTP3 × 8)
Four screws
