HCD-LV100AV
4545

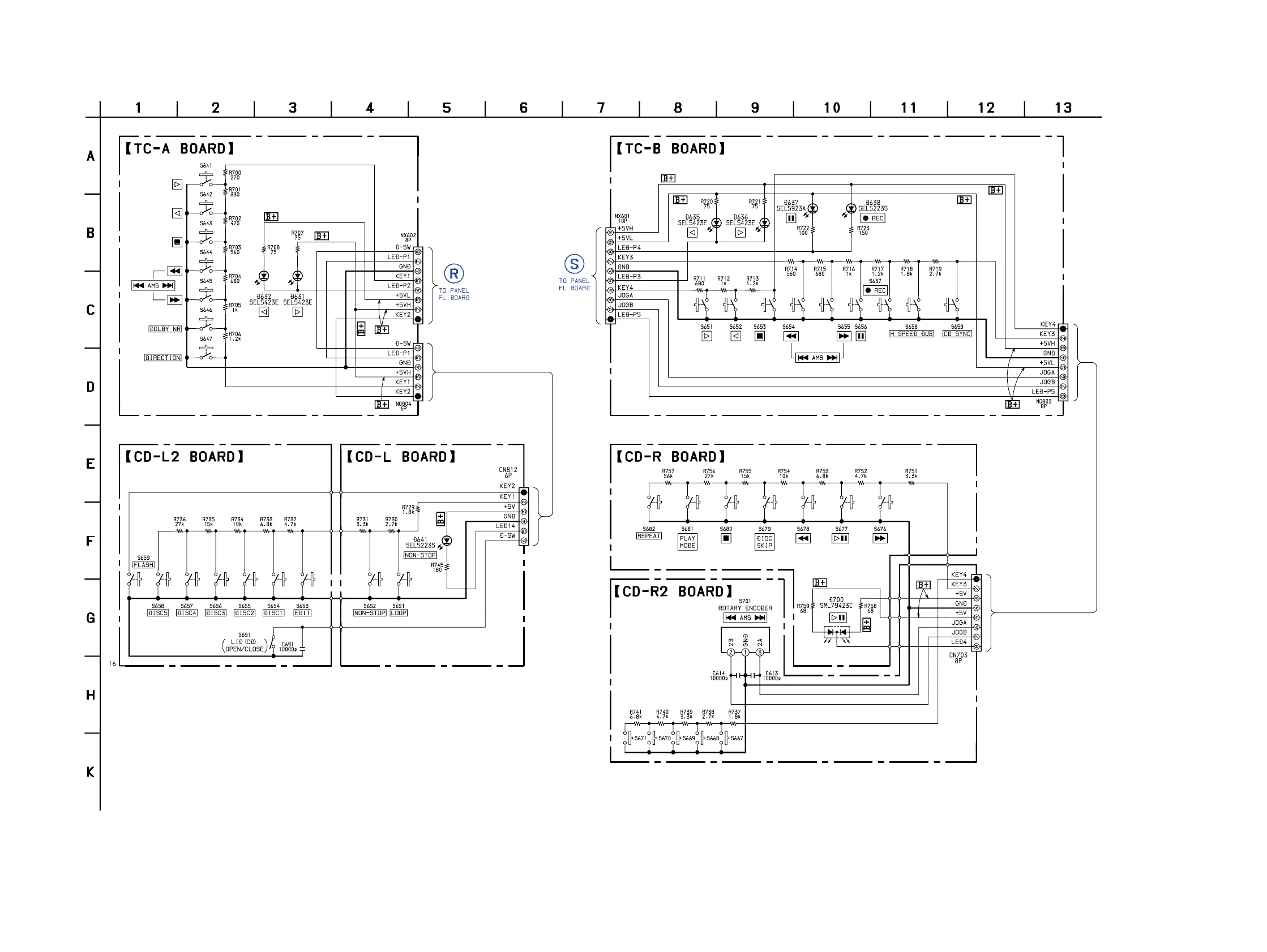

6-23. SCHEMATIC DIAGRAM TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: FM
(Page 41)
(Page 41)
