HCD-LV100AV
4747

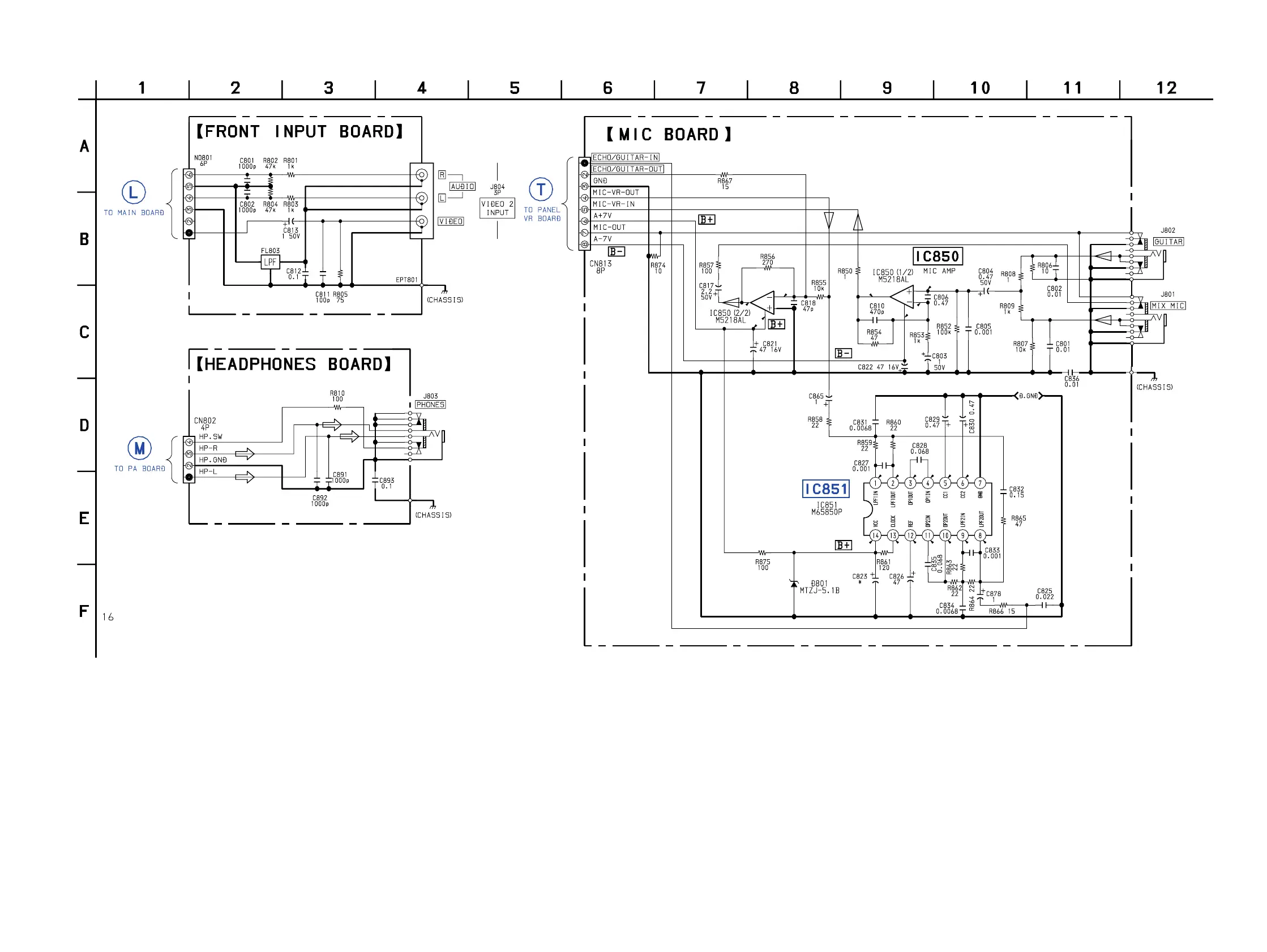

6-25. SCHEMATIC DIAGRAM FRONT INPUT/HEADPHONE/MIC Boards
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: FM
(Page 36)
(Page 49)
(Page 43)
7
5
6
0
8
7.1
-7.1
0
1
3
2
4
0
0
0
0
00
0
0
0
7
0 0 0 0 0 0
• See page 54 for IC Block Diagrams.
