Sony HCD-LV100AV - Leaf SW Board

HCD-LV100AV
3434

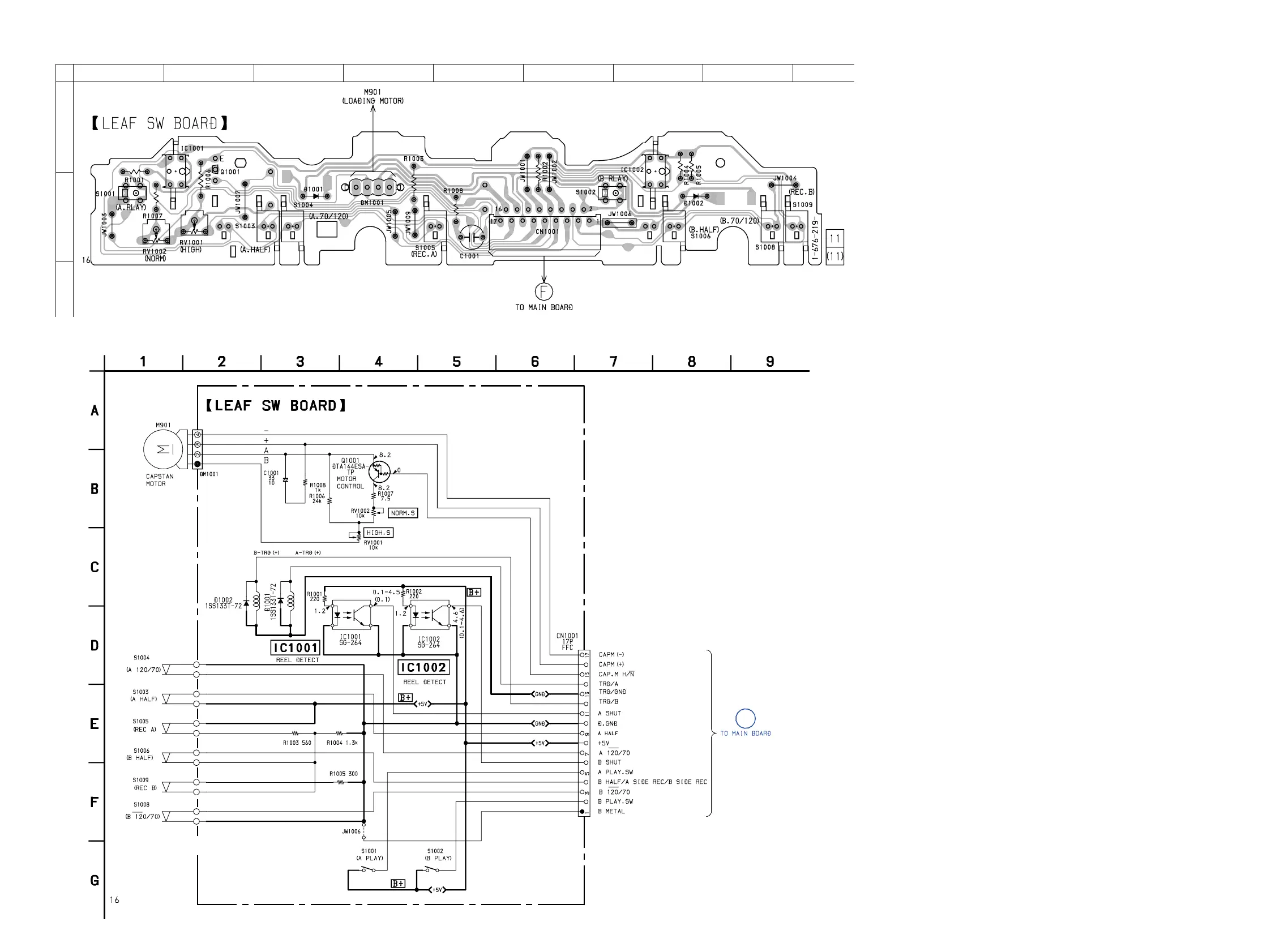

6-12. PRINTED WIRING BOARD LEAF SW Board
• See page 20 for Circuit Board Location.
6-13. SCHEMATIC DIAGRAM LEAF SW Board
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: TAPE PLAY
( ) : RECORD
* : Impossible to measure
12
A
B
C
3456789
(Page 35)
(Page 37)
F
