6-9 (E)
HXCU-100
6-5. HD Signal System Adjustment
6-5-1. Y/R-Y/B-Y Output Level Adjustment
(HD)
Preparation
. SYSTEM OPERATION menu
S04: COMPONENT → HD YPbPr
. CCU menu
C01: HD BAR → BAR 16:9 (100%)
C10: G/Y LEVEL → 0
R/R-Y LEVEL → 0
B/B-Y LEVEL → 0
Adjustment

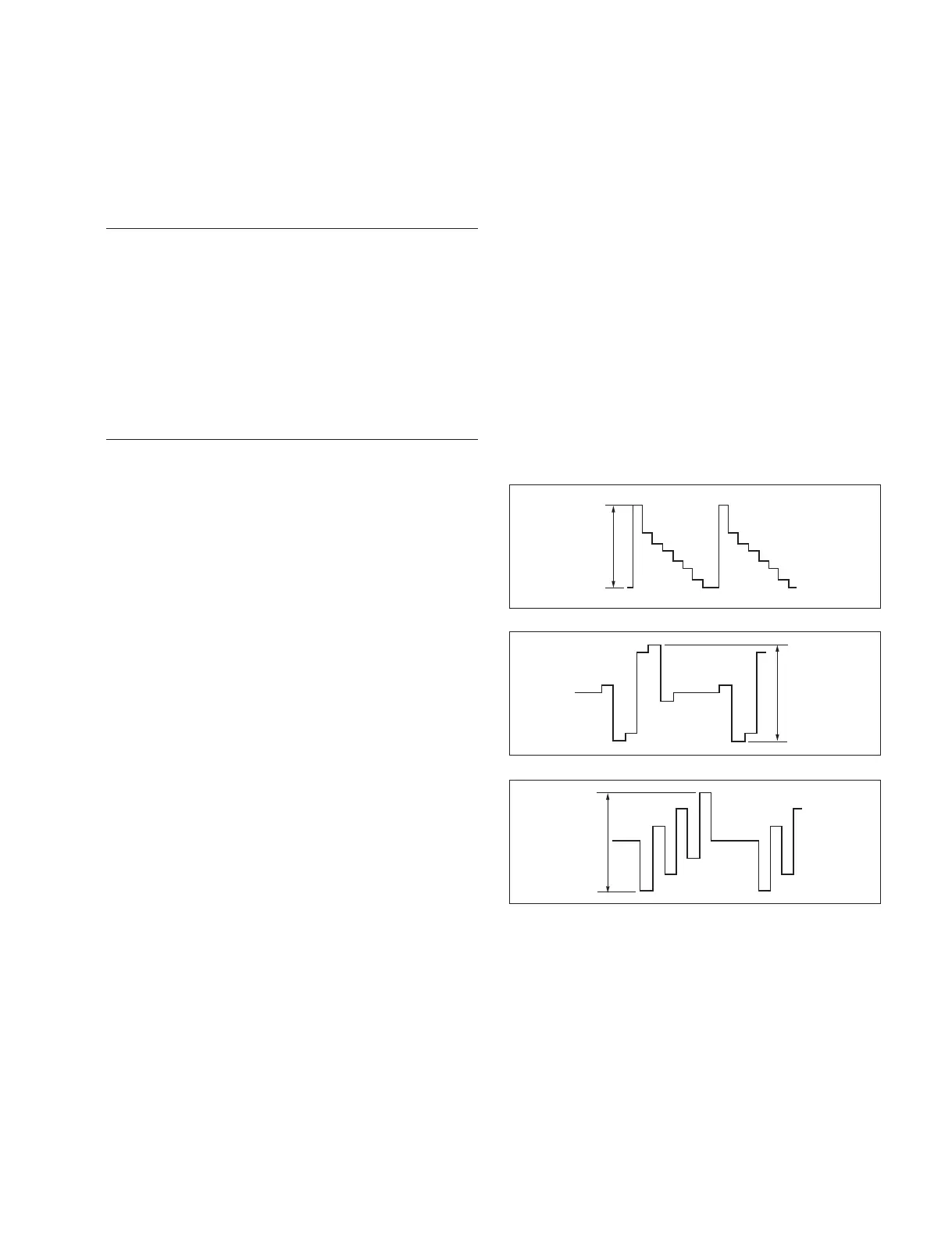

1. Y signal level adjustment
Equipment: Analog HD waveform monitor
Test Point: Y connector/CN-3080 board
Adjusting Point: MAINTENANCE menu
M04: Y/G-HD/SD TRIM
Specifi cation: A = 700 ?5 mV (75 Z termination)
2. R-Y signal level adjustment
Equipment: Analog HD waveform monitor
Test Point: Pr connector/CN-3080 board
Adjusting Point: MAINTENANCE menu
M04: PR-HD/PAL TRIM
Specifi cation: B = 700 ?5 mV (75 Z termination)
3. B-Y signal level adjustment
Equipment: Analog HD waveform monitor
Test Point: Pb connector/CN-3080 board
Adjusting Point: MAINTENANCE menu
M04: PB-HD/PAL TRIM
Specifi cation: C = 700 ?5 mV (75 Z termination)
4. After these adjustments are completed, select “WRITE”
to store the setting values.
A
B
C
To Next Page
