Sony HXCU-100 Service Manual

7-5
HXCU-100

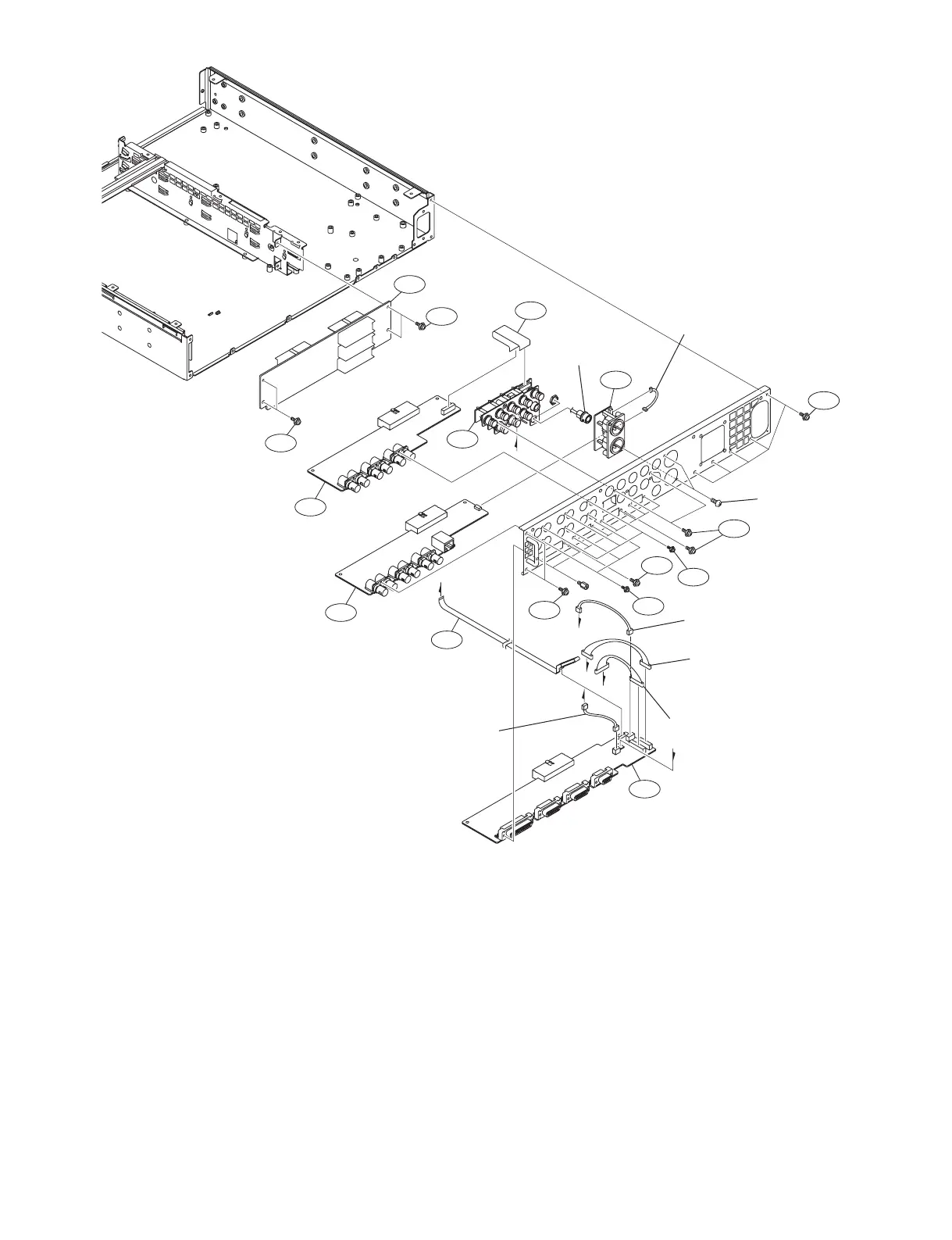

Rear Panel
310
310
309
310
309
310
308
303
306
310
301
310
307
304
302
305
BVTP3 x 12
HARNESS (RCP)
HARNESS
(RCP-POWER)
HARNESS
(MIC)
HARNESS (UNREG)
HARNESS (CONTROL)
HARNESS
(WF-REMOTE)
e
k
g
k
j
i
h
∗1
Note
∗1: These screws are accessories of
the connectors.
No. Part No. SP Description
301 A-1707-195-A s MOUNTED CIRCUIT BOARD, MB-1124
302 A-1707-202-A s MOUNTED CIRCUIT BOARD, CN-3082
303 A-1707-206-A s MOUNTED CIRCUIT BOARD, VIF-39
304 A-1707-200-A s MOUNTED CIRCUIT BOARD, CN-3080
305 A-1707-201-A s MOUNTED CIRCUIT BOARD, CN-3081
306 A-1707-205-A s MOUNTED CIRCUIT BOARD, SDI-97
307 ! 1-833-470-21 s CABLE, FLEXIBLE FLAT (33P)
308 ! 1-836-690-11 s CABLE, FLEXIBLE FLAT (15 CORE)
309 3-637-901-02 s SCREW M2.6X5
310 4-382-854-51 s SCREW (M3X6), P, SW (+)
7-685-648-91 s SCREW +BVTP 3X12 TYPE2 TT(B)
