3-2 (E)
HXCU-100
3-2. Audio System
3-2-1. Intercom System Setting
Two independent intercom lines (producer line and engineer line) are selectable and available in this unit.
This unit supports 4-wire, RTS, and Clear-Com (CC) intercom systems. Make settings of the internal
switches and menus according to the system to be used.
Selecting Intercom System
Select an intercom system (4W, RTS, or CC) for each of the engineer line and producer line according to
the system to be used.
n
When switches S530 and S531 are set to RTS (CC), be sure to connect the unit to the RTS or Clear-Com
system. Failure to do so will cause the output to oscillate and adversely affect the surrounding circuit.
Selecting Producer Line
1. Set S530 (PROD SEL) on the SY-364 board according to the system.
4-wire: 4W (factory setting)
RTS/Clear-Com: RTS (CC)
2. When RTS (CC) is selected, select RTS or Clear-Com with C06:SYSTEM INTERFACE of the CCU
menu.
Selecting Engineer Line
1. Set S531 (ENG SEL) on the SY-364 board according to the system.
4-wire: 4W (factory setting)
RTS/Clear-Com: RTS (CC)
2. When RTS (CC) is selected, select RTS or Clear-Com with C06:SYSTEM INTERFACE of the CCU
menu.

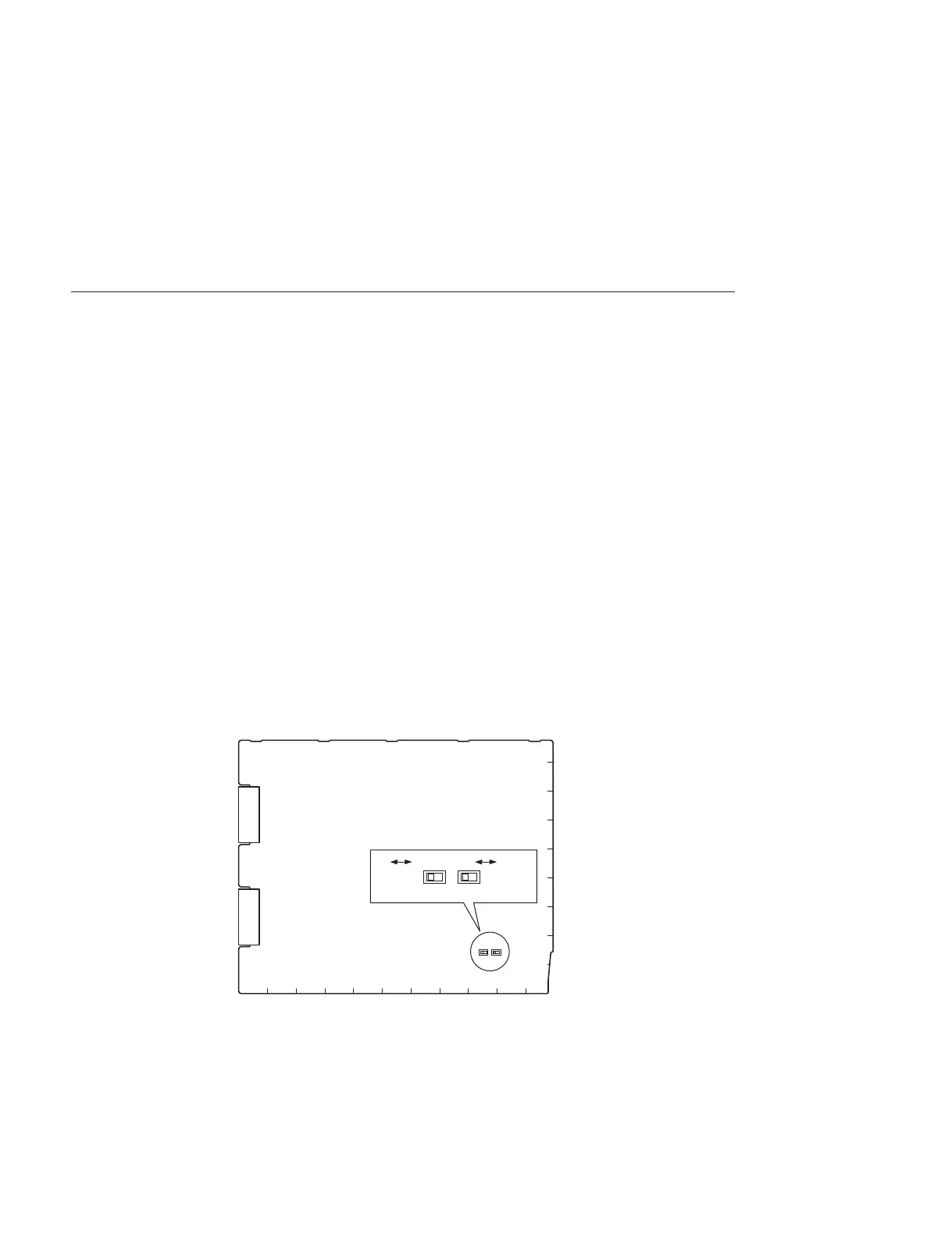

S531
4W RTS(CC)
S530
4W RTS(CC)
9
8
7
6
5
4
3
2
1
L K J H G F E D CBA
SY-364 BOARD (SIDE A)
To Next Page
