Sony HXCU-100 Service Manual

5-15 (E)
HXCU-100

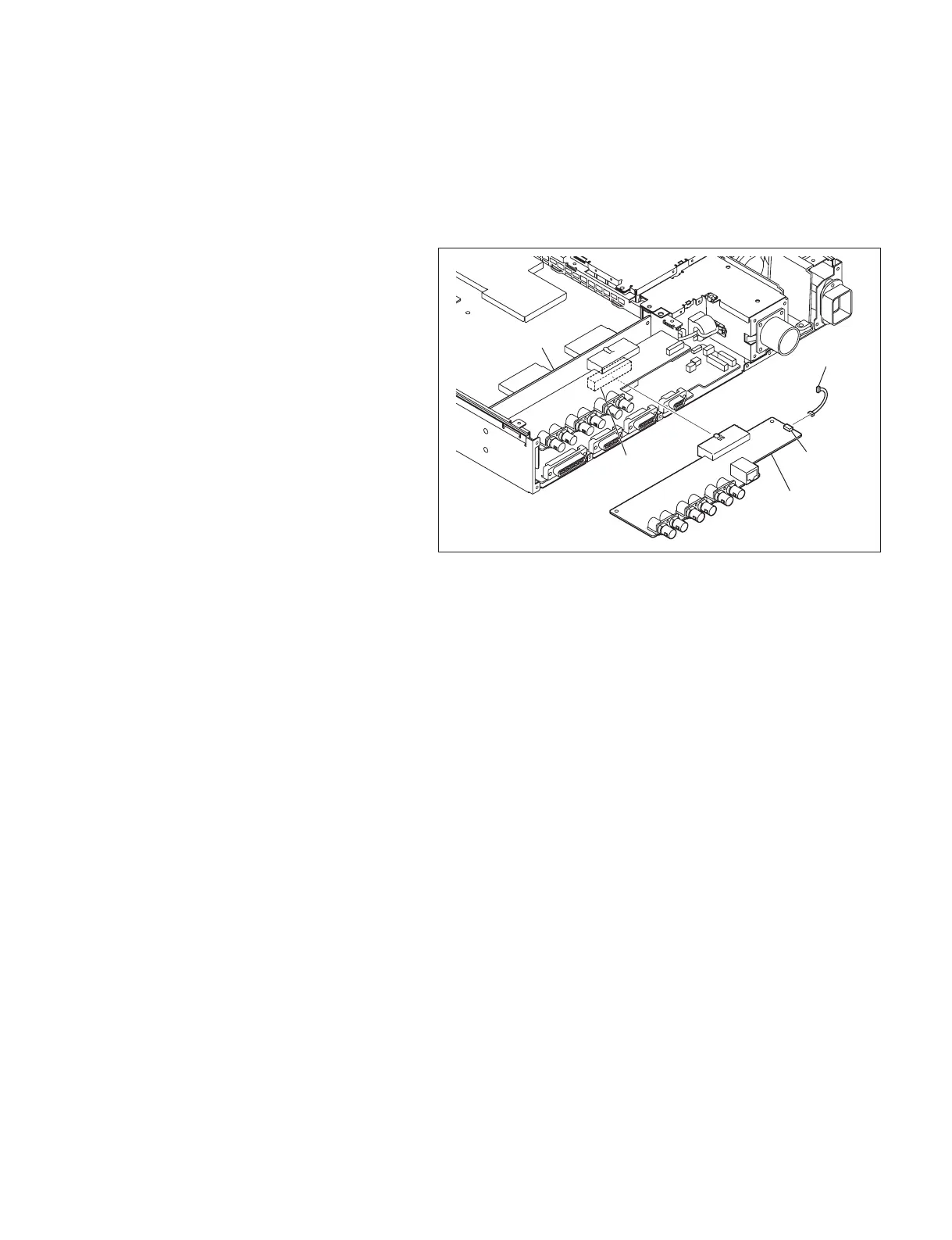

5-5-14. VIF-39 Board
1. Remove the front assembly.
(Refer to Section 5-1.)
2. Remove the top cover.
(Refer to Section 5-2.)
3. Remove the rear panel assembly.
(Refer to Section 5-3.)
4. Remove the VIF-39 board from connector
CN3 on the MB-1124 board.
5. Disconnect the harness from the connector
CN4 on the VIF-39 board.
6. Install a new VIF-39 board by reversing the
steps above.
CN4
CN3
VIF-39 board
Harness
MB-1124 board
