Sony HXCU-100 Service Manual

1-7 (E)
HXCU-100

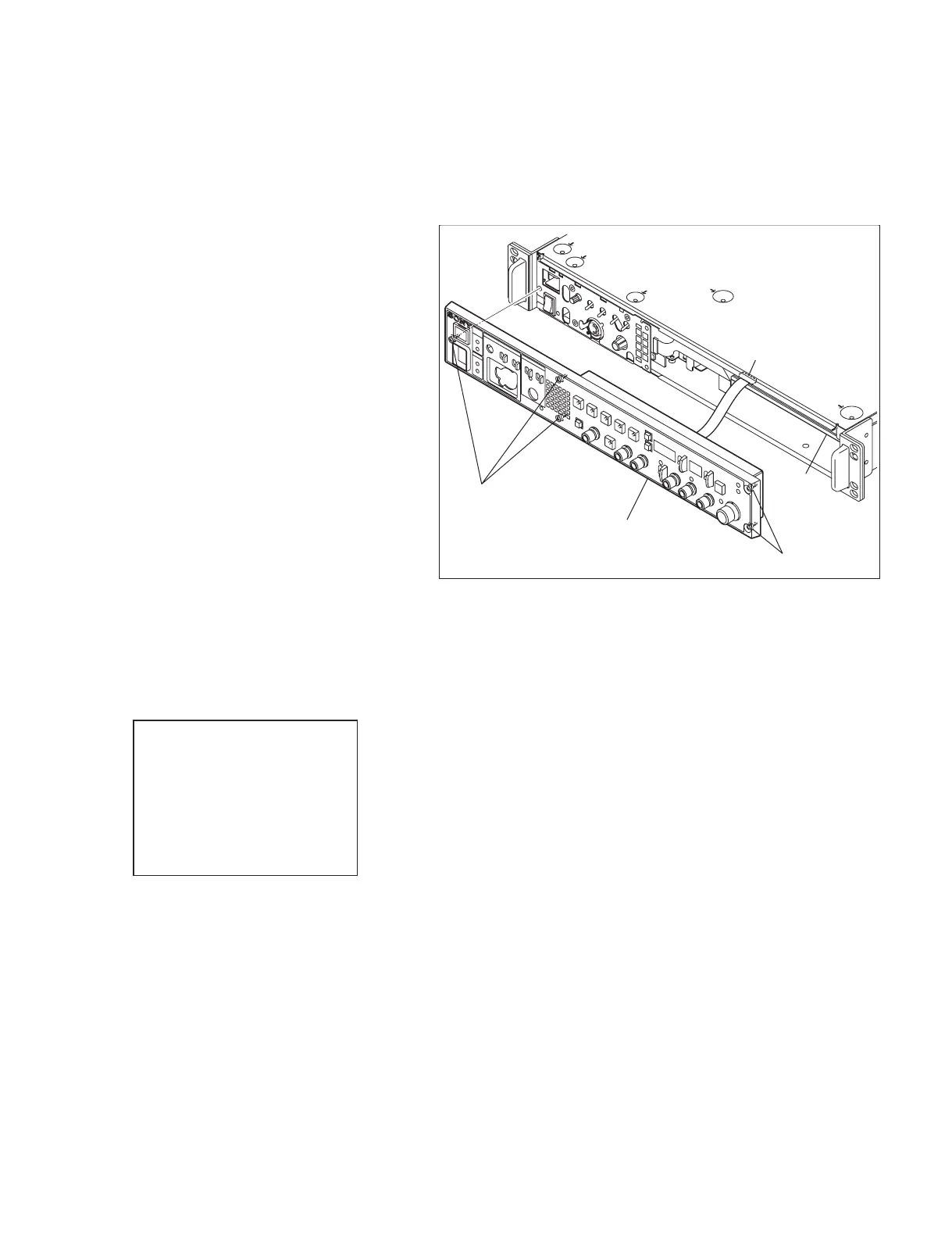

1-4. Installing the HKCU-FP1
1. Remove the front assembly.
(Refer to Section 5-1.)
2. Connect the fl exible card wire of the HKCU-FP1
to the connector CN2 on the SY-364 board.
n
Be careful not to bend the fl exible card wire.
This shortens the wire life.
3. Install the HKCU-FP1 with fi ve screws with
stopper.
4. Check that the HKCU-FP1 is recognized
correctly on the status screen.
n
Front Panel on the screen shows the status of
the HKCU-FP1.
%JBHOPTJT
%130,4%*0,
4:0,7*'0,
'SPOU1BOFM0,
Screws with stopper
Screws with stopper
SY-364
board
HKCU-FP1
CN2
