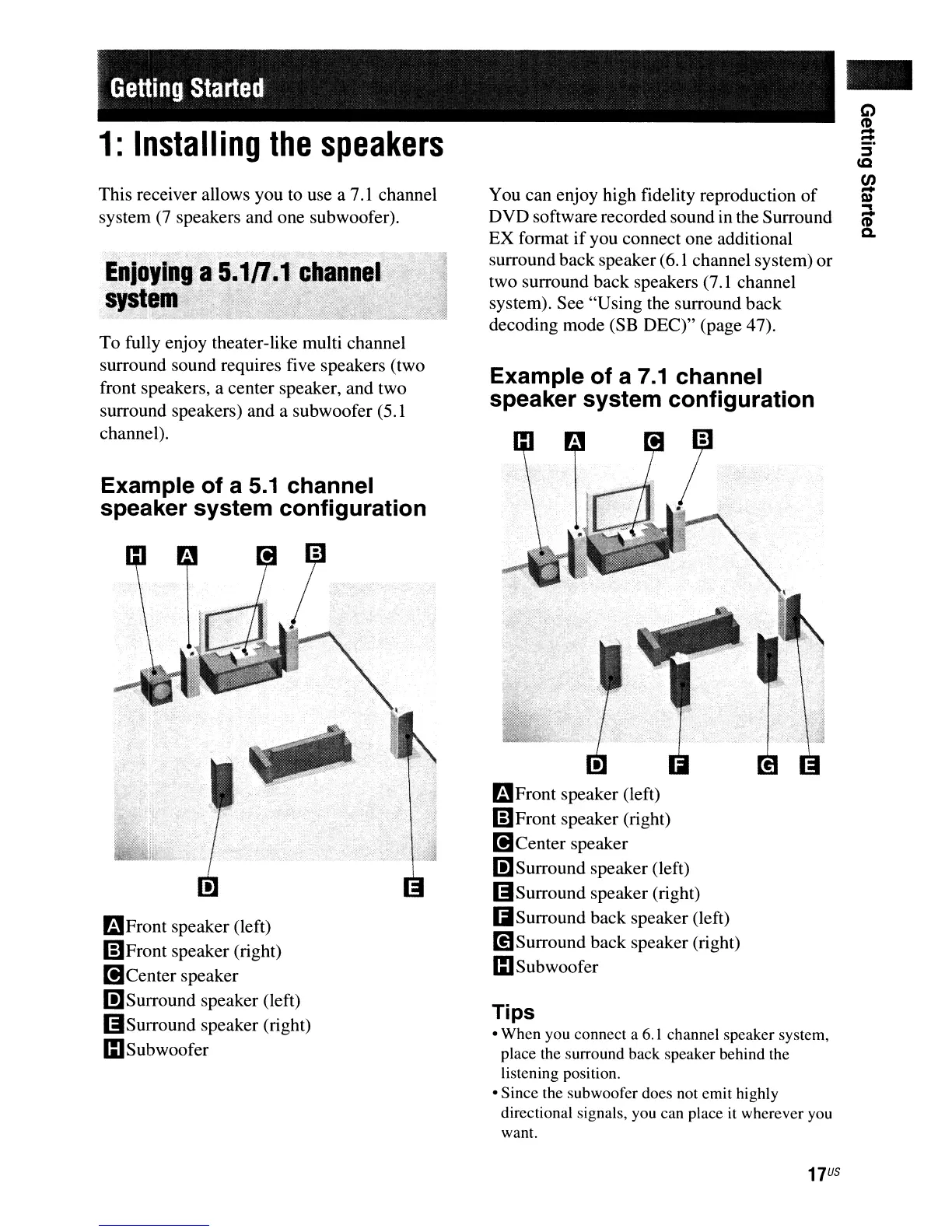

Sony STR-DH700 - Getting Started; Installing the Speakers

Getting Started
1: Installing the speakers
This receiver allows you to use a 7.1 channel
system
(7 speakers and one subwoofer).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
mFront speaker (left)
G)Front speaker (right)
[!]Center speaker
I!]Surround speaker (left)
(ElSurround speaker (right)
C1Subwoofer
You can enjoy high fidelity reproduction
of
DVD software recorded sound in the Surround
EX format
if you connect one additional
surround back speaker
(6.1 channel system) or
two surround back speakers
(7.1 channel
system). See "Using the surround back
decoding mode (SB DEC)" (page 47).
Example of a 7.1 channel
speaker system configuration
mFront speaker (left)
G)Front speaker (right)
[!]Center speaker
I!] Surround speaker (left)
(ElSurround speaker (right)
IiISuITound back speaker (left)
[ilSurround back speaker (right)
GlSubwoofer
Tips
• When you connect a 6.1 channel speaker system,
place the surround back speaker behind the
listening position.
• Since the subwoofer does not emit highly
directional signals, you can place it wherever you
want.
17
US
-
