Sony STR-DH700 User Manual

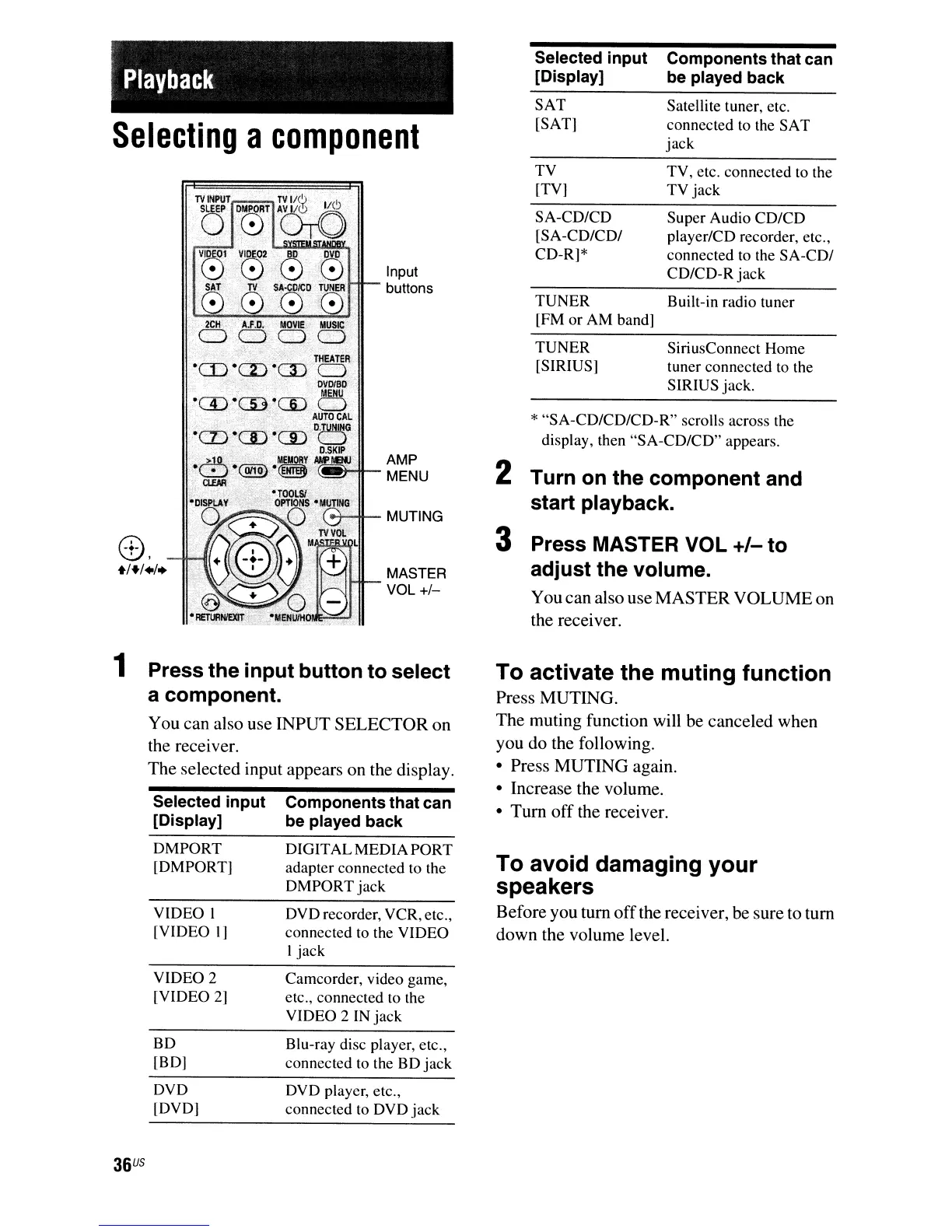

Playback
Selecting a component
Selected input
[Display]
SAT
[SAT]
Components that can
be played back
Satellite tuner, etc.
connected to the SAT
jack
Input
buttons
Built-in radio tuner
SiriusConnect Home
tuner connected to the
SIRIUS jack.
Super Audio CD/CD
player/CD recorder, etc.,
connected to the SA-CD/
CD/CD-R
jack
TV, etc. connected to the
TV
jack
TUNER
[SIRIUS]
TUNER
[FM or AM band]
SA-CD/CD
[SA-CD/CD/
CD-R]*
TV
[TV]
* "SA-CD/CD/CD-R" scrolls across the
display, then "SA-CD/CD" appears.
2 Turn on the component and
start playback.
3 Press MASTER VOL +/- to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
MASTER
VOL +/-
V~88
SAl TV SA'CDICO lvNER
·8.80'8
2CH . A.F .If,· MOVIE MUSIC
OpOD
'" ... THEATER
om "<::1) ern . C)
... 'OV.OIBD
MENU
°m·~(5)!(]) C)
AUTO CAL
"CD"CD om Dc=3
G
'. . D.SKIP
,.ill...:., .......•... MEMORY .. ""'.. MENU AMP
"\.:.!...J .(~ o~<{_tt-It- MENU
.. ~.
TV INPUT TV 1/(1) I
~. OM. PORi AV 1/(5.. I/(.~
u.0 VTO
*~-MUTING
Press the input button to select
a component.
You can also use INPUT SELECTOR on
the receiver.
The selected input appears on the display.
1
Selected input
[Display]
Components that can
be played back
To activate the muting function
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
•
Tum off the receiver.
DMPORT
[DMPORT]
VIDEO
I
[VIDEO I]
DIGITALMEDIA PORT
adapter connected to the
DMPORT
jack
DVD recorder, VCR, etc.,
connected to the VIDEO
I jack
To avoid damaging your
speakers
Before you tum off the receiver, be sure to tum
down the volume level.
VIDEO 2
[VIDEO
2]
Camcorder, video game,
etc., connected to the
VIDEO 2
IN jack
BD
[BD]
Blu-ray disc player, etc.,
connected to the BD
jack
DVD
IDVD]
DVD player, etc.,
connected to DVD
jack
36
US

Sony STR-DH700 Specifications

General

Equalizer	Yes
Product color	Black
Audio decoders	dts, dts 96/24, dts NEO:6, dts-ES
Impedance	8 Ω
RMS rated power	735 W
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	1 %
Supported radio bands	AM, FM
Headphone outputs	1
Dimensions (WxDxH)	430 x 157.5 x 322 mm
Power requirements	120 V, 60 Hz
HDMI ports quantity	4
I/O ports	2 x Anten. 1 x Coax. - in 3 x Compon. - in 1 x Compon. - out 4 x Compos. - in 1 x Compos. - out 1 x DM 3 x HD Compon. - in 1 x HD Compon. - out 3 x HDMI - in 1 x HDMI - out 2 x Opt. - in 1 x Sub. - out
Power consumption (standby)	0.3 W
Power consumption (typical)	240 W

Weight and Dimensions

Weight	8000 g
