Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
-
Press
.,+
repeatedly to select
"T. TONE Y".
When a test tone is not output
from the speakers
• The speaker cords may not be connected
securely.
• The speaker cords may have the short-circuit
problem.
Note
The test tone does not work when ANALOG
DIRECT is selected.
The test tone is output from each speaker
in
sequence as follows:
Front left
-+
Center
-+
Front right
-+
Surround right
-+
Surround back right*
-+
Surround back left*
-+
Surround left
-+
Subwoofer
*You will only hear the test tone from the
- surround back left and right speakers when
surround back speakers are set
to
"DUAL".
- surround back left speaker when surround
back speakers are set to "SINGLE".
6 Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see "Adjusting the level
(LEVEL menu)" (page 45).
Tips
•
To
adjust the level
of
all speakers at the same
time, press MASTER VOL
+/-.
You
can also
use MASTER VOLUME on the receiver.
•
The
adjusted value
is
shown on the display
during adjustment.
7 Repeat steps 1 to 5 to select
"T. TONE N".
You
can also press any input buttons.
The test tone turns off.
5
AMP
MENU
MASTER
VOL
+/-
Input
buttons
•
..•
THEATER
°m·m
°rno
,
DVDIBD
MENU
·CD·m·mo
. .
AUTO
CAL
0CD.moCD
D~G.
......
. . O.sKIP'
8'
. .
MEMORY
AM>
MEIlJ
.......
~.~.
"
CLEAR
• .
.VIDEOl
VIDe02
'BD
DVD
00'08
"~.
TV
.
S.A.-eDICO
TUNER
~:88'8'
2CH
A.FJL
..
MOVIE
MUSIC
·0000
1 Press AMP MENU.
"I-LEVEL"
appears on the display.
2 Press 8 or + to enter the
menu.
3 Press
.,+
repeatedly to select
"T. TONE".
4 Press
8)
or + to enter the
parameter.
9:

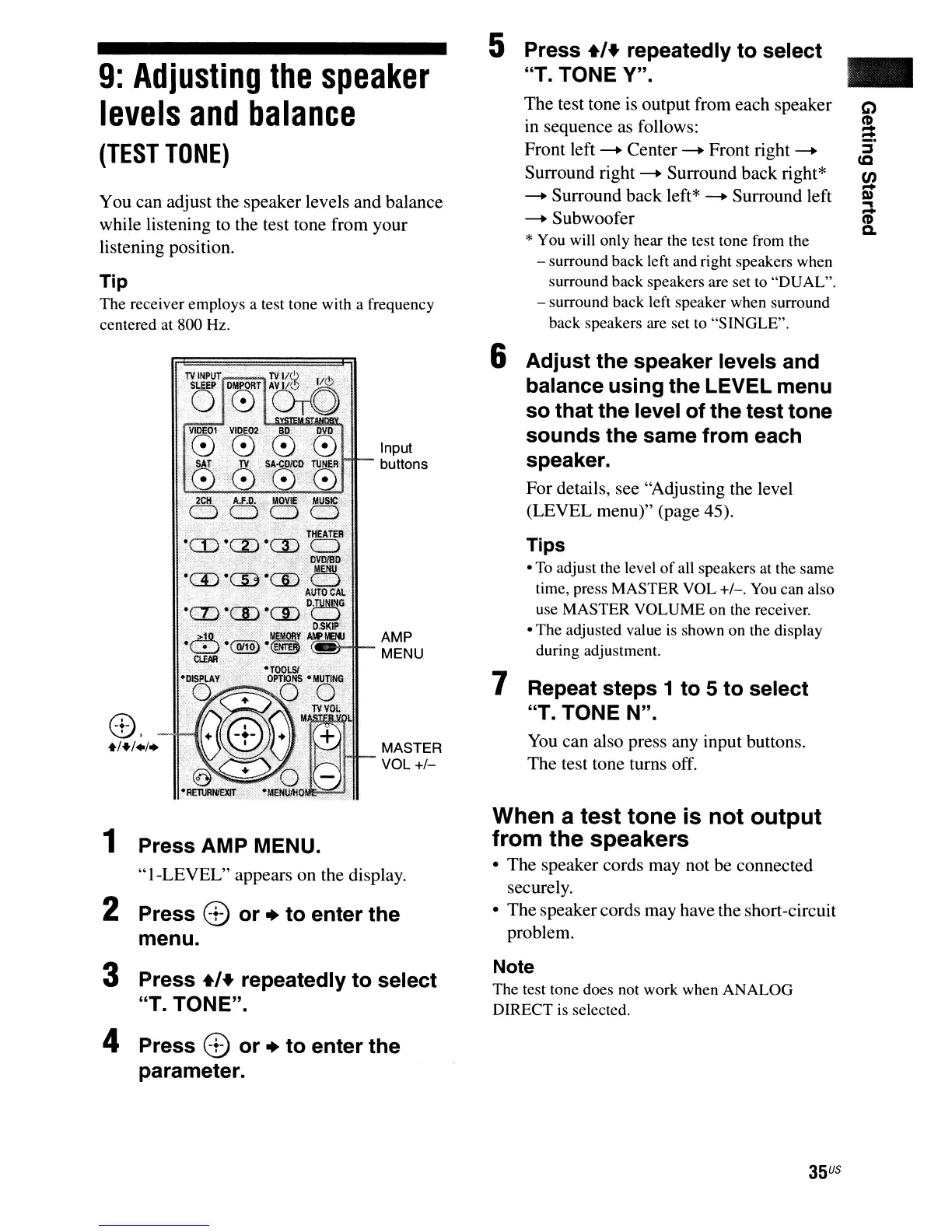

Adjusting
the
speaker
levels
and
balance
(TEST
TONE)
35
US
