Location and Function of Controls
Overview
1 Access lamp (VPL-CX75 only)
Lights during access to the Memory
Stick.
Do not remove the Memory Stick while
the access lamp is lit.
2 Wireless LAN card eject button
(VPL-CX75 only)
3 Wireless LAN card slot (VPL-
CX75 only)
The supplied wireless LAN card can be
inserted. Never insert anything other
than the supplied wireless LAN card.
Remove the wireless LAN card from the
wireless LAN card slot when storing the
projector in the carrying case.
For details, see Operating Instruction
for Air Shot (stored in the CD-ROM).
4 Memory Stick slot (for standard/
Duo size) (VPL-CX75 only)
The Memory Stick can be inserted.
Never insert an object other than the
Memory Stick.
(The standard size of Memory Stick
/ the size of Memory Stick Duo
compatible slot)
You can use both of the standard sizes of
Memory Stick and the sizes of Memory
Stick Duo by one slot. (You cannot use
both of the sizes of Memory Stick at the
same time.) When you use the sizes of
Memory Stick Duo, do not attach the
Memory Stick Duo Adaptor to them.
Do not insert the two or more Memory
Stick into the slot at the same time or insert
the Memory Stick in the oppsite direction.
It causes the malfunction of this unit.
For details, see the attached “Operating
Instructions for Memory Stick” stored in
the CD-ROM.
5 USB connector (USB plug for
upstream, 4-pin)
Connect to the USB connector of a
computer. When you connect the
projector to the computer, you can
control the mouse function with the
supplied Remote Commander.
6 INPUT A connector (HD D-sub
15-pin, female)
Inputs a computer signal, video GBR
signal, component signal, or DTV signal
depending on the connected equipment.
Connects to the output connector of
equipment using the supplied cable or an
optional cable.
For details, see “Connecting with a
Computer” on page 20 and
“Connecting with a VCR” on page 21.
7 AUDIO jack (stereo minijack)
When listening to sound output from
video equipment or computer, connect
to the audio output of the video
equipment or the computer.
8 Video input connector
Connect to external video equipment
such as a VCR.
• S VIDEO (mini DIN 4-pin):
Connects to the S video output (Y/C
video output) of video equipment.
• VIDEO (phono type): Connects to
the composite video output of video
equipment.

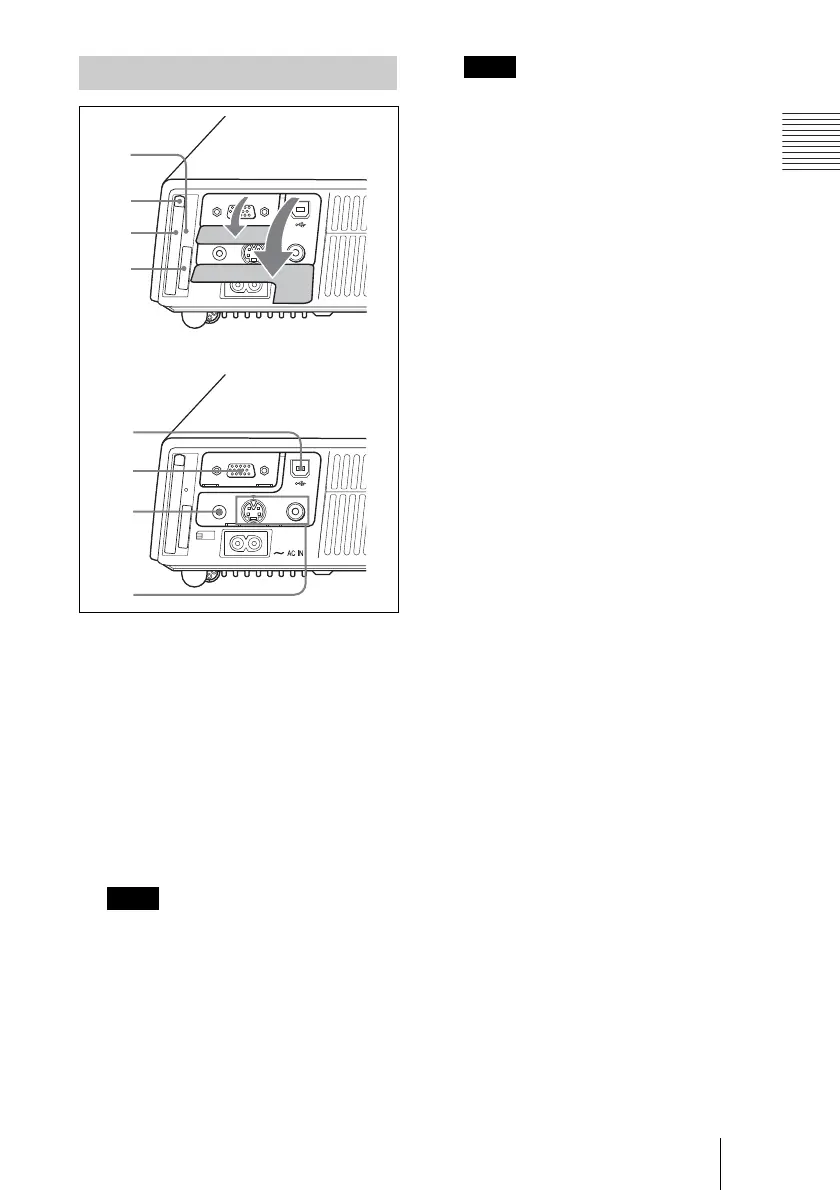

Connector Panel
Note
AUDIO
STD/DUO
S VIDEO
INPUT A
VIDEO
1
3
4
2
AUDIO
STD/DUO
S VIDEO
INPUT A
VIDEO
5
6
7
8
Open the cover when using the INPUT A or
VIDEO IN connector.
