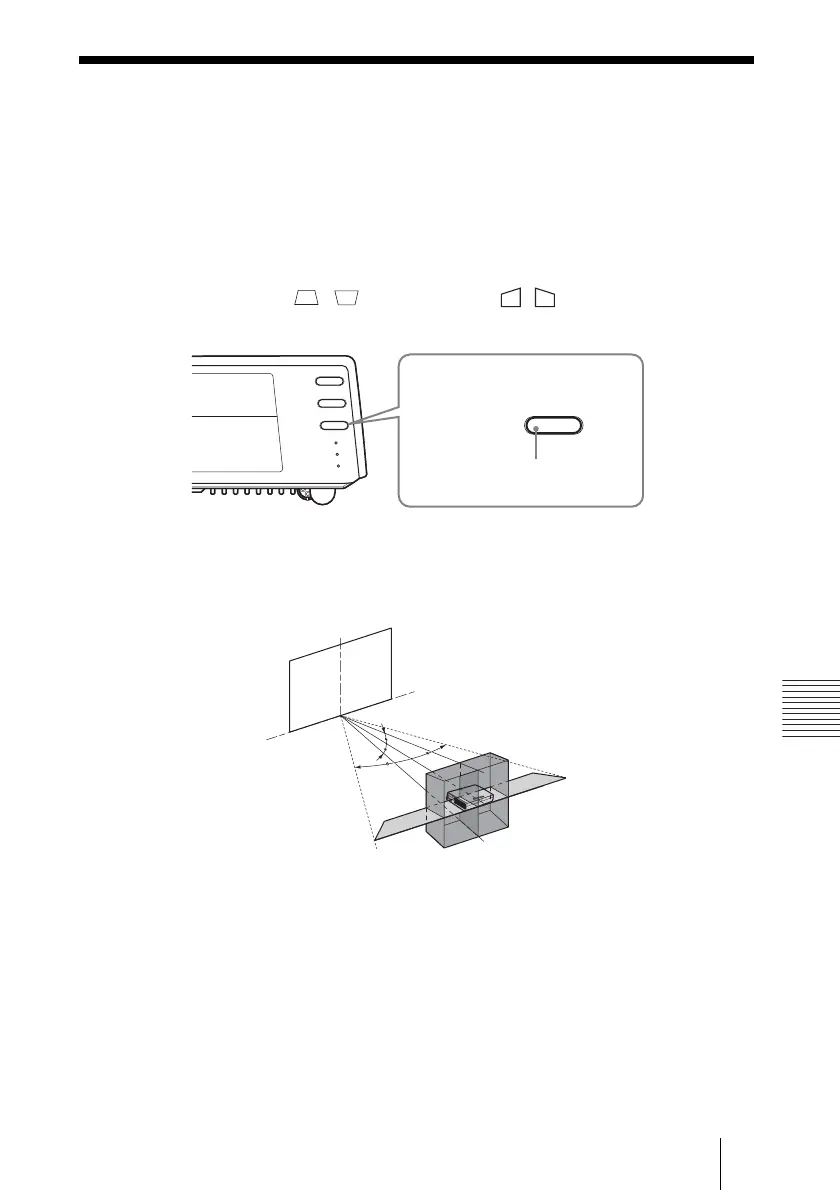

“Side Shot” and “V Keystone” Adjustments
Others
“Side Shot” and “V Keystone”
Adjustments
With “Side Shot” (horizontal keystone adjustment) provided for the projector, you can
project the picture from the side of the screen.
When projecting with “Side Shot” adjustment only, you can adjust the horizontal
distortion of the screen using “Side Shot” to the maximum.
When projecting with both “Side Shot” and “V Keystone” (vertical keystone adjustment),
you can adjust the vertical ( ) and horizontal ( ) distortion of the screen.
Adjustment Areas of “Side Shot” and “V Keystone”
The adjustable distortion area using “Side Shot” and “V Keystone” is described below.
a: Tilting angle of the projector in the “V Keystone” adjustment area
b: “Side Shot” (H Keystone adjustment) area
–
FOCUS
ZOOM
SIDE SHOT
POWER SAVING
TEMP/FAN
LAMP/COVER
+
–+
–+
SIDE SHOT
–+
SIDE SHOT key
a
a
b
b
Screen
