17
FR
Installation du projecteur
Projection de l’image
B
Projection de l’image
Installation du projecteur

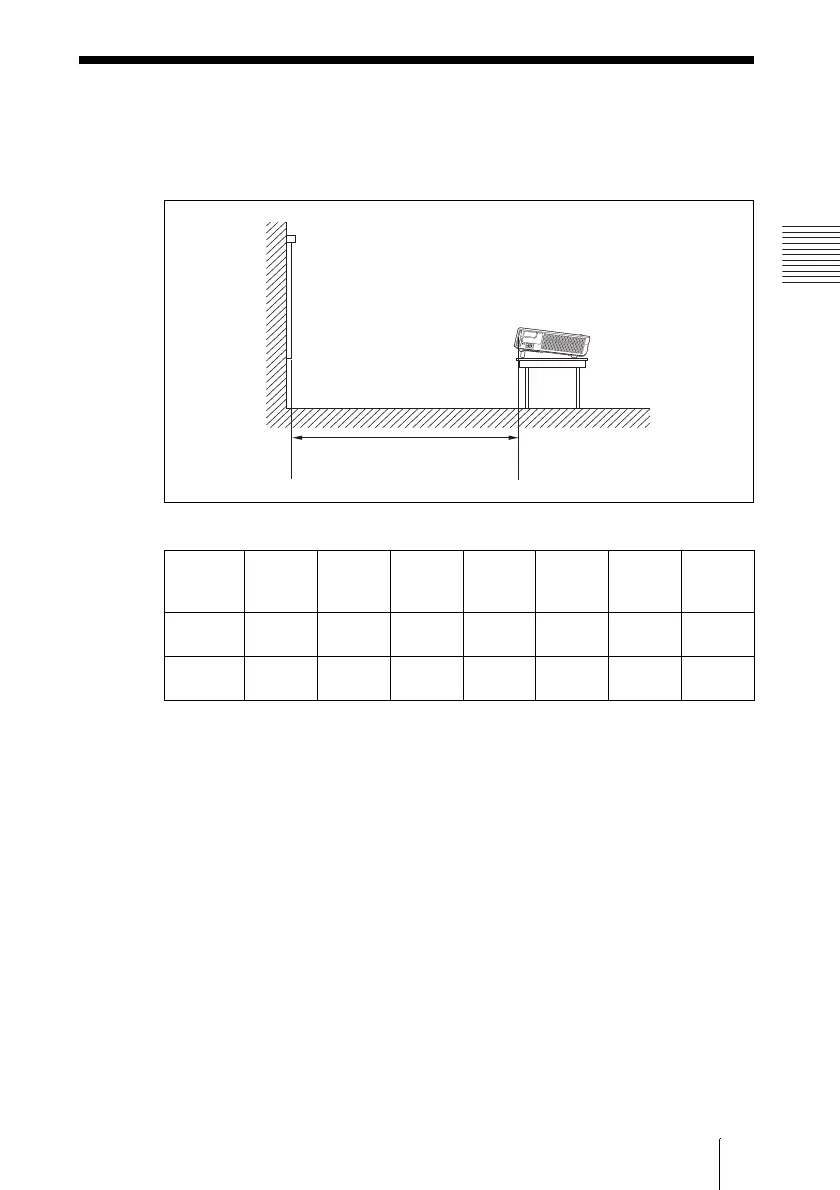

La distance entre l’objectif et l’écran varie suivant la taille de l’écran. Utilisez
le tableau suivant comme guide.
Il se peut qu’il y ait une légère différence entre la valeur réelle et la valeur théorique
indiquée ci-dessus.
Unité : m (pied)
Taille
d’écran
(pouces)
40 80 100 150 200 250 300
Distance
minimale
1,2
(3,9)
2,4
(7,9)
3,0
(9,8)
4,5
(14,8)
6,0
(19,7)
7,5
(24,6)
9,0
(29,5)
Distance
maximale
1,4
(4,6)
2,7
(8,9)
3,4
(11,2)
5,2
(17,1)
6,9
(22,6)
8,7
(28,5)
10,4
(34,1)
Distance entre l’écran et le centre
de l’objectif
Écran
