16 Location and Function of Controls
The keys that have the same names as those
on the control panel function identically.
1 I / (on/standby) key
2 MUTING keys
Cut off the picture and sound.
• PIC: Cuts off the picture. Press again
to restore the picture.
• AUDIO: Press to temporarily cut off
the audio output from the speaker.
Press again or press VOLUME + key
to restore the sound.
3 INPUT key
4 TILT/KEYSTONE (Vertical/
horizontal trapezoidal distortion
correction) key
Adjusts the tilt of the projector, or the
horizonal/vertical trapezoidal distortion
of the image manually. Each time you
press this key, the Tilt menu, the V
Keystone menus and Side Shot menu are
displayed. Use the arrow keys (M/m/
</,) for adjustment.
5 (Memory Stick) key (VPL-
CX75 only)
Displays the Memory Stick Home.
When the input signal is other than
Memory Stick, it switches to Memory
Stick. When there are the files to be
displayed in the Memory Stick Home,
the slide show begins.
For details, see Operating Instructions
for Memory Stick (stored in the CD-
ROM).
6 FREEZE key
Freezes the picture projected. To cancel
the frozen picture, press the key again.
7 AIR SHOT key (VPL-CX75 only)
Displays the Air Shot Home.
When the input signal is other than Air
Shot, it switches to Air Shot.
When using the Air Shot, the list box of
the computers that can be connected
appears.
For details, see Operating Instruction
for Air Shot (stored in the CD-ROM).
8 Keys that emulate a mouse
These keys function as mouse buttons of
a computer only when the projector is
connected to the computer using the
USB cable.
For details, see “Controlling the
Computer Using the Supplied Remote
Commander (When Using the USB
Cable)” on page 28.
9 ENTER key
q; FUNCTION 1, 2, 3 keys
The FUNCTION 1 and 2 keys do not
work in this unit.
The auto focus function works when the
FUNCTION 3 key is pressed.
qa Strap holder
For attaching a strap.

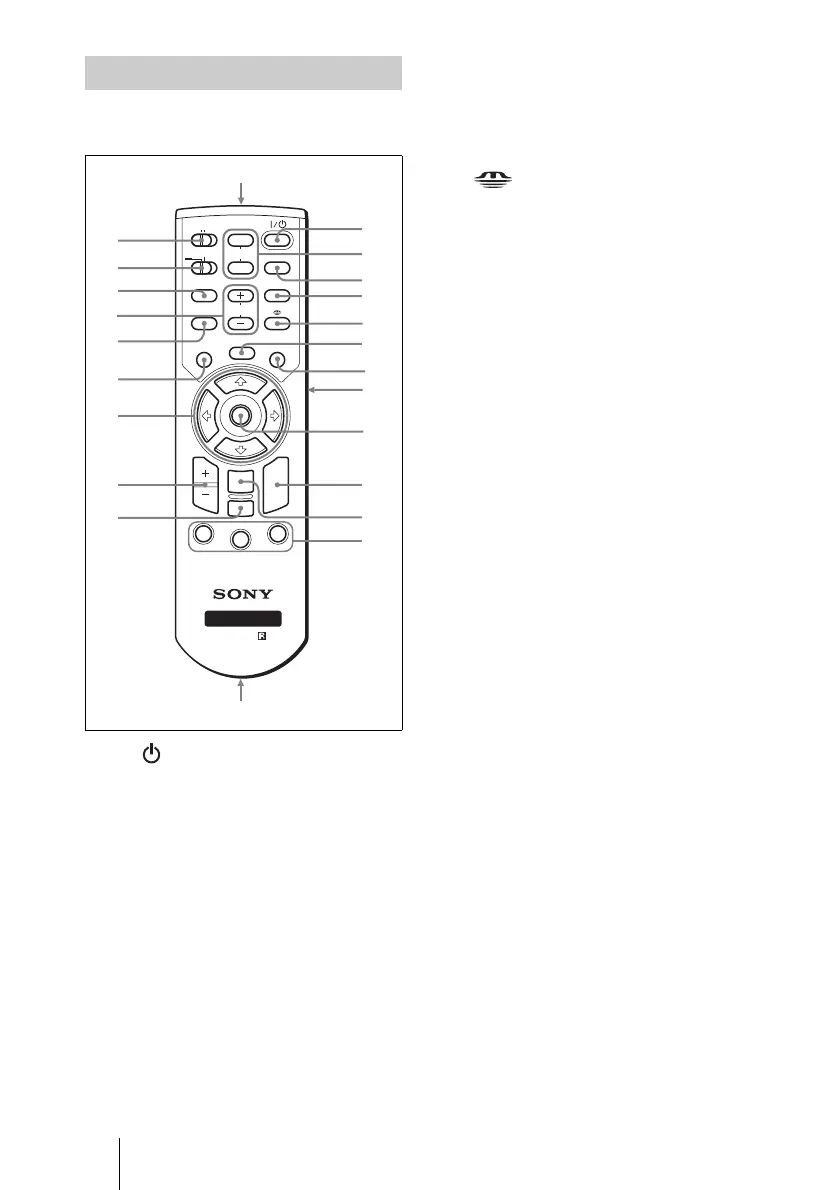

Remote Commander
