257
Effect Timeline
Operations (Utility/
Shotbox Control Block
and Numeric Keypad
Control Block)
You can edit an effect timeline in the utility/shotbox
control block by recalling an effect timeline register in the
numeric keypad control block.
You can perform operations on an effect timeline in a
regi
on assigned to a region selection button in the
numeric keypad control block.
For details about regions, see “Types of Regions”
(page 78).
You can select a region that is not assigned to a region
se
lection button in the [Recall/Store Register] window in
the menu.
For details, see “Effect Timeline Operations (Menu)”
(page 264).
Effect timeline operation mode (numeric
keypad control block)
Press the [EFF] button in the numeric keypad control
block, turning the [EFF] button and [RCALL] button on
amber, to switch to effect timeline operation mode.
Select a region using the region
selection buttons, then
enter a register number in the numeric keypad area to
select a register.
Displaying the [Recall/Store Register]
window or [Edit
Timeline] window for an effect timeline using the menu
switches the numeric keypad control block to effect
timeline operation mode.
Selecting a region
You can select the target region to set using the region
selection
buttons.
Up to four regions (1 to 4) can be assigned to each region
selection
button. The name of the region assigned to the
lowest region number is displayed on the button. Press a
button, turning it on, to simultaneously select the assigned
regions.
The first selected region using the region selection
butt
ons becomes the reference region and the button is lit
green. The buttons for subsequent selected regions are lit
amber.
Press and hold a mode selection button ([EFF] button for
an effect timeline, [SN
APSHOT] button for a snapshot)
and press a region selection button that is lit amber,
changing the button color to green, to change the
reference region.
When the selected reference region is removed, the
referen
ce region will be set according to the order of
priority.
The selected regions are shown on the display. The
referen
ce region is displayed highlighted. The name of
the reference region is displayed at the bottom of the
display on the right side.
For details about assigning region selection buttons, see
“Assigning regions to a region
selection button in the
numeric keypad control block” (page 398).
For details about the order of priori
ty for the reference
region, see “Reference regions” (page 78).
You can press the [ALL] button to select all regions
con
figured beforehand at the same time.
If you press the [ALL] button while none of the
confi
gured target regions are selected, then the target
regions are selected at the same time and all other regions
are deselected.
If you press the [ALL] button while at least one of the
c
onfigured target regions is selected, all regions are
deselected.
When regions are selected using the [ALL] button, the
reg
ion with the highest priority becomes the reference
region.
Note

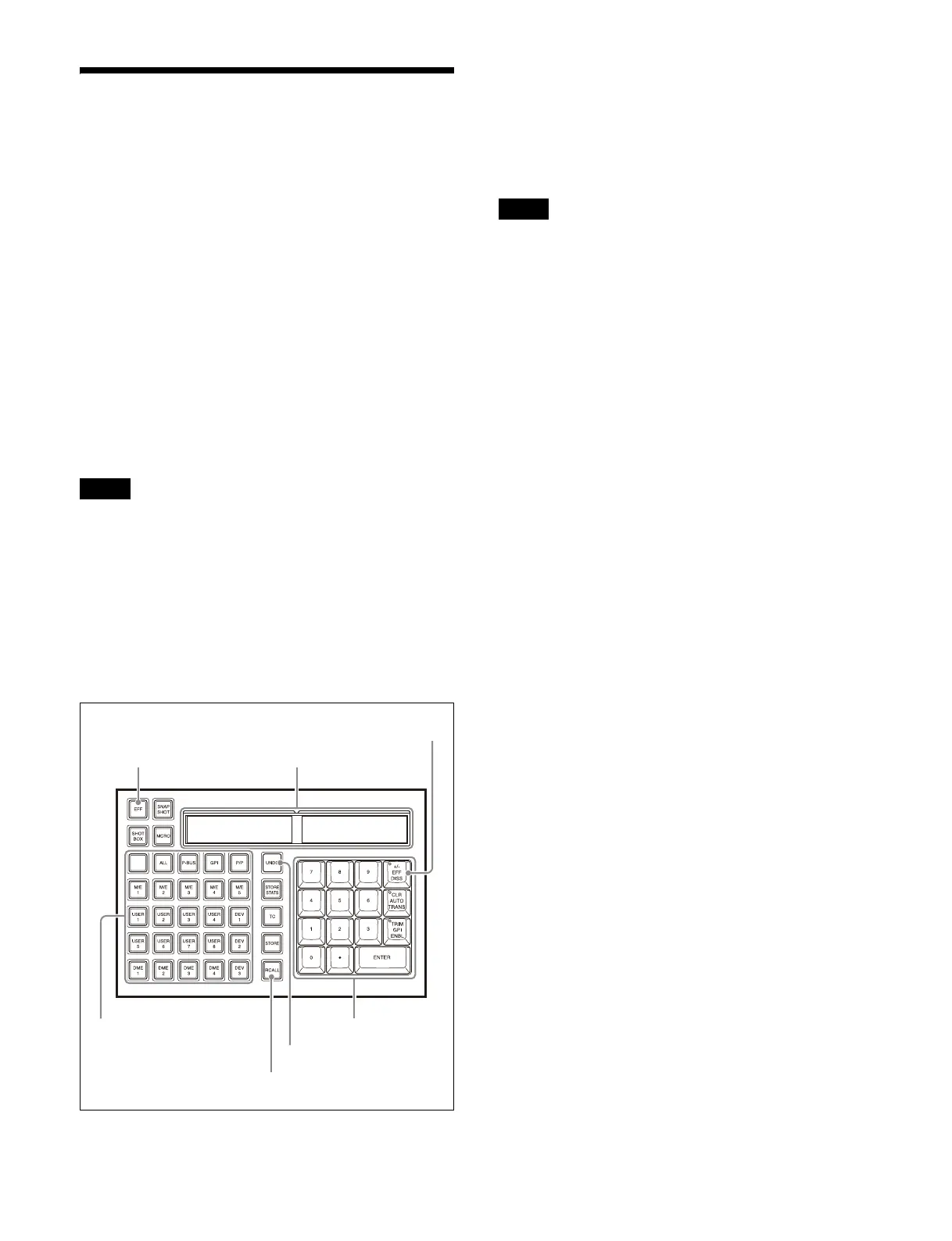

EFF button
EFF DISS button
Display
Region selection buttons
RCALL button
Numeric keypad
UNDO button
