Star Micronics NX-1500 User Manual

– 53 –
TROUBLESHOOTING
1) Replace main logic
board.
2) Replace printer
mechanism.
Carriage motor
operating waveform is
normal? *1
YES
Replace printer mechanism.
A
NO
NO
A
NO
1) Replace main logic
board.
2) Replace printer
mechanism.
A
NO
NO
Home position
switch signal is
normal?
YES
Replace main logic board.

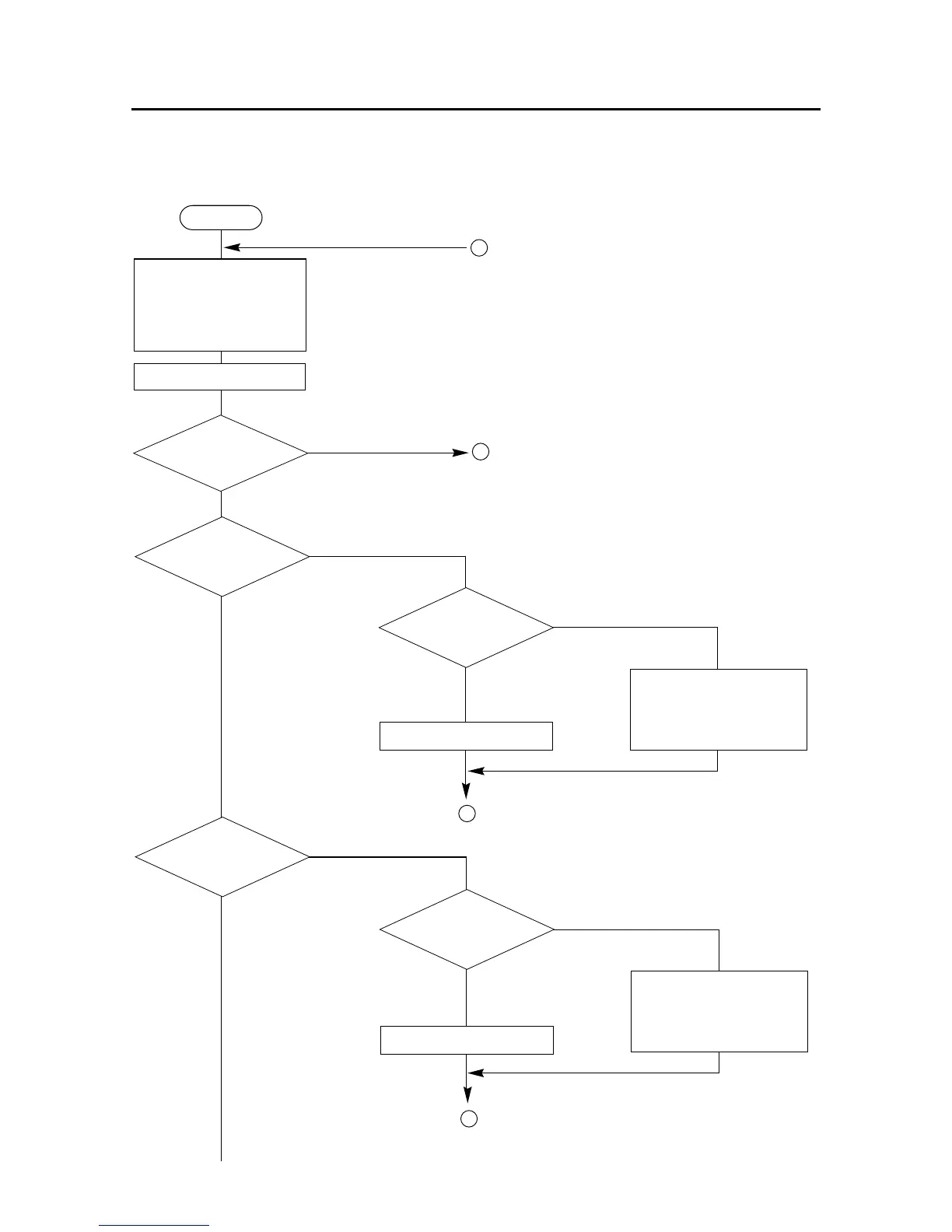

START
* Turn power off.
* Remove I/F cable.
* Mount ink ribbon.
* Set paper.
* Move carriage to center.
Turn power on.
Carriage
Movement?
YES
Carriage operates
normally?
YES
Carriage stops at
home position?
YES
3. Repair by Unit Replacement
B
