– 90 –
C1 05291042 FILM CAPA. 0.1UF 250V 1
C2-3 05192224 CERA. CAPA. 2200PF 400V 2 EXCEPT FOR HK,SU
NOT MOUNTED :HK,SU
L1 09251106 LINE FILTER SU10V-05050 1
F1 09990058 FUSE 5TT1A 250V 1 FOR US,TW S
09990021 FUSE EAWK630MA 250V 1 EXCEPT FOR US,TW S
SW 09030010 SEESAW SWITCH WK2A44 1
- *3 09240580 TRANSFORMER 120V XL-15SWD US 1 FOR US,TW
#3 09240841 TRANSFORMER 120V ZL-10W US 1 FOR US,TW
*3 09240590 TRANSFORMER 220V XL-15SWD EC 1 EC,HK,SC,SU,LA,PL
#3 09240850 TRANSFORMER 220V ZL-10 EC 1 EC,HK,SC,SU,LA,PL
*3 09240600 TRANSFORMER 240V XL-15SWD UK 1 FOR UK,AS
#3 09240860 TRANSFORMER 240V ZL-10 UK 1 FOR UK,AS
*3 09110065 CORD SET US-PN SPT LC 1 FOR US,TW
*4 09110065 CORD SET US-PN SPT LC 1 FOR TW
*4 09110144 CORD SET US-PN HA-10 1 FOR US
#4 09110144 CORD SET US-PN HA-10 1 FOR US,TW
*3 09110078 CORD SET EC-PN XBL 1 FOR EC,SC,LA,PL
*4 09110078 CORD SET EC-PN XBL 1 FOR SC,LA,PL
#4 09110143 CORD SET EC-PN HA-10 1 FOR SC,LA,PL
*2 09110078 CORD SET EC-PN XBL 1 FOR SU
#2 09110060 CORD SET SV-PN L=2M 1 FOR SU
09110067 CORD SET UK-PN LC 1 FOR UK
09110068 CORD SET AS-PN LC 1 FOR AS
*3 09110069 CORD SET HK-PN LC 1 FOR HK
#3 09110136 CORD SET HK-PN QBA 1 FOR HK
82020280 POWER CORD COVER NX-1000 1
04991219 CORD BUSHING SR-4N-4 1 FOR US,TW,SU
04991220 CORD BUSHING SR-5N-4 1 EC,UK,AS,HK,SC,LA,PL

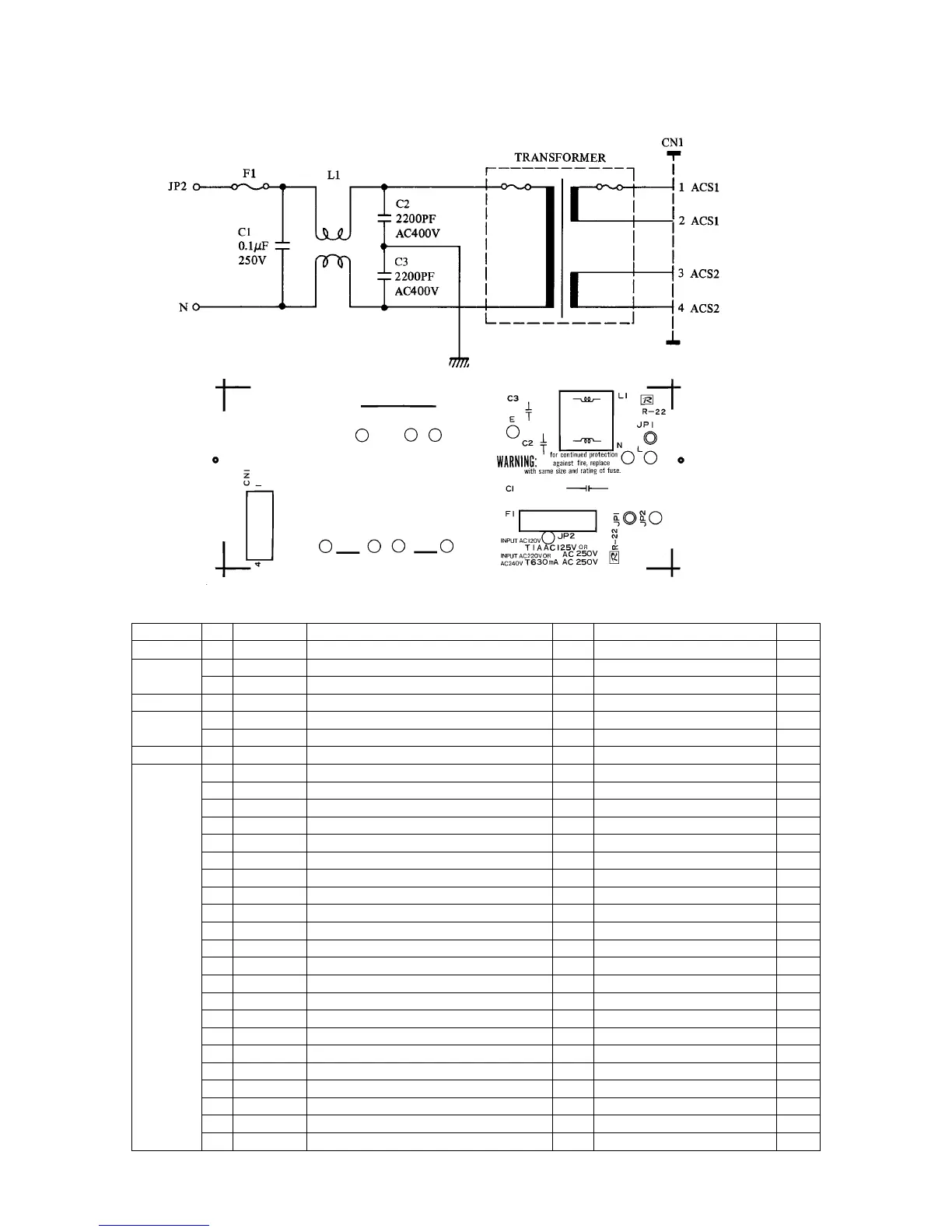

7. Fuse Board
7-1. Circuit Diagram
7-2. Component Layout
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK
7-3. Parts List
To Next Page
