– 72 –
3-1 *2 83023410 LOWER CASE NX-1500 1
*3 83023411 LOWER CASE NX-1500 1
#3 83023413 LOWER CASE NX-1500 1
3-2 82010900 BOARD CHASSIS NX-1500 1
3-3 82010910 POWER CHASSIS NX-1500 1
3-4 82501050 GROUND SPRING NX-1500 1
3-5 82901390 GROUND BRACKET NX-1500 1
3-6 80925381 MESHED GROUND WIRE 80-A 1 S
3-7 *2 01903064 SCREW TAT 3-5 CT 1 S
*3 01903094 SCREW TAT 3-5 DT 1 S
3-8 *3 00930803 SCREW TAT 3-8 PT 4 S
#3 00930803 SCREW TAT 3-8 PT 2 S
3-9 *1 01914032 SCREW TAT 4-7 CT 3 S
*2 01914039 SCREW TAT 4-8 WS 3 S
#2 01914034 SCREW TAT 4-8 CT-WF 3 S
3-10 80086480 CAUTION SEAL LC-10II SC 1 FOR SC ONLY
- *3 80992810 SHEET L1 NX-1500 1
*3 80992820 SHEET L2 NX-1500 1
*3 80992830 SHEET L3 NX-1500 1
*3 80992840 SHEET L4 NX-1500 1
*4 80992850 SHEET L5 NX-1500 1
#4 80992851 SHEET L5 NX-1500 1
*4 80992860 SHEET L6 NX-1500 1
#4 80992861 SHEET L6 NX-1500 1
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK

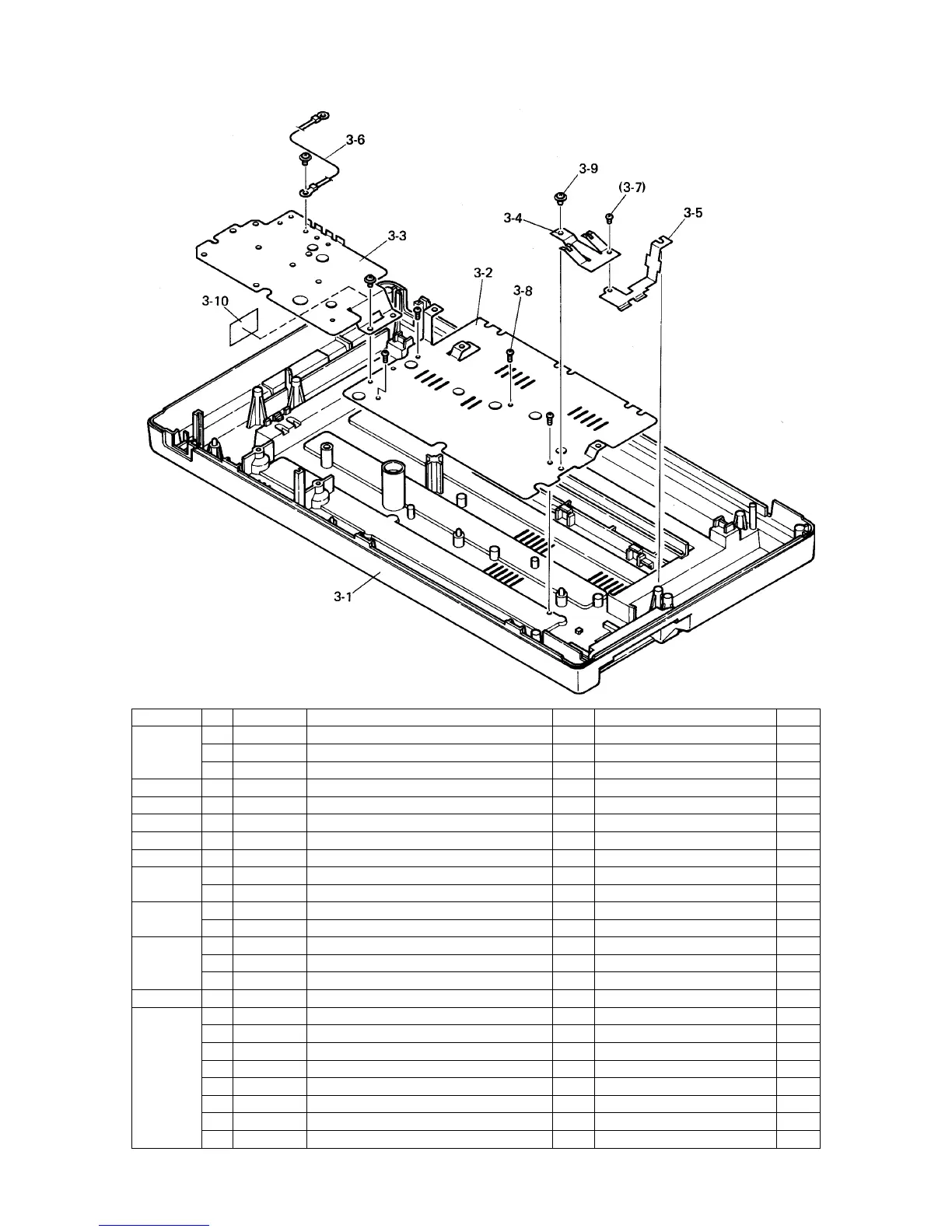

3-2. Lower Case Unit
