– 66 –
1. Printer Assembly

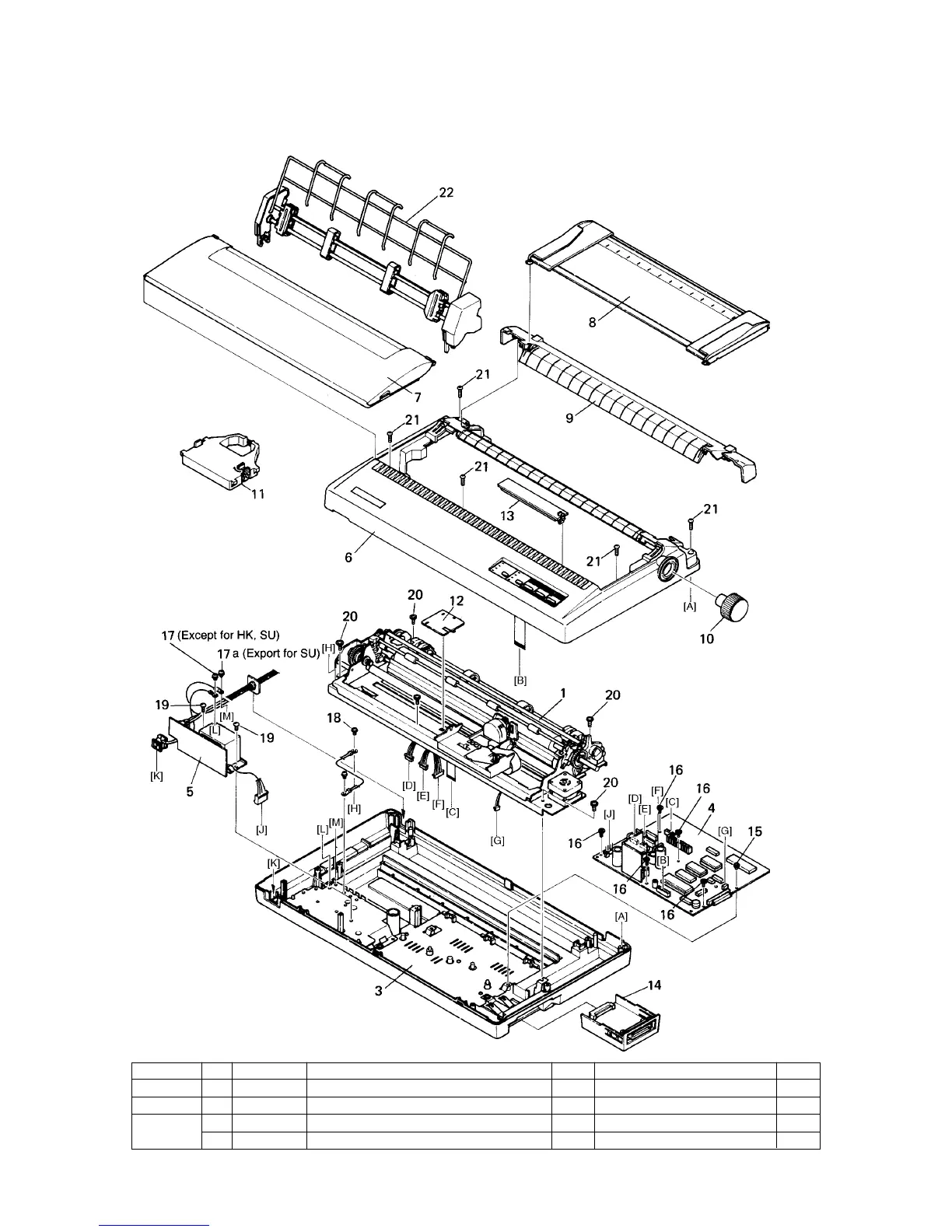

1-1. Disassembly Drawing
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK
1 89064810 MECHANISM WITH HEAD DP935 1 S
2 *1 82900772 RIBBON HOLDER 891 1 TO SECTION 2-2 S
3 87291130 LOWER CASE UNIT NX-1500 1 EXCEPT FOR SC S
87291150 LOWER CASE UNIT LC-15 SC 1 FOR SC S
1-2. Parts List
Printer Assembly
