Star Micronics NX-1500 User Manual

– 78 –
10-1 *3 80202140 PLATEN B 935 1
10-1 #3 80202141 PLATEN B 935 1
10-2 83100550 PLATEN GEAR A 891 2 S
10-3 83100560 PLATEN GEAR B 891 1 S
10-4 83902310 PLATEN HOLDER 935 2
10-5 80530520 PLATEN GEAR SPRING 891 1 S
10-6 *1 04020014 STOP RING SE6.0 3 S
#1 04020022 STOP RING SE6.0-SUS 3 S
10-7 04012502 ROLL PIN SP2.5X12 3
10-8 #2 87063340 PLATEN GEAR ASSY 891B 1 WITH 10-2,3,5 S

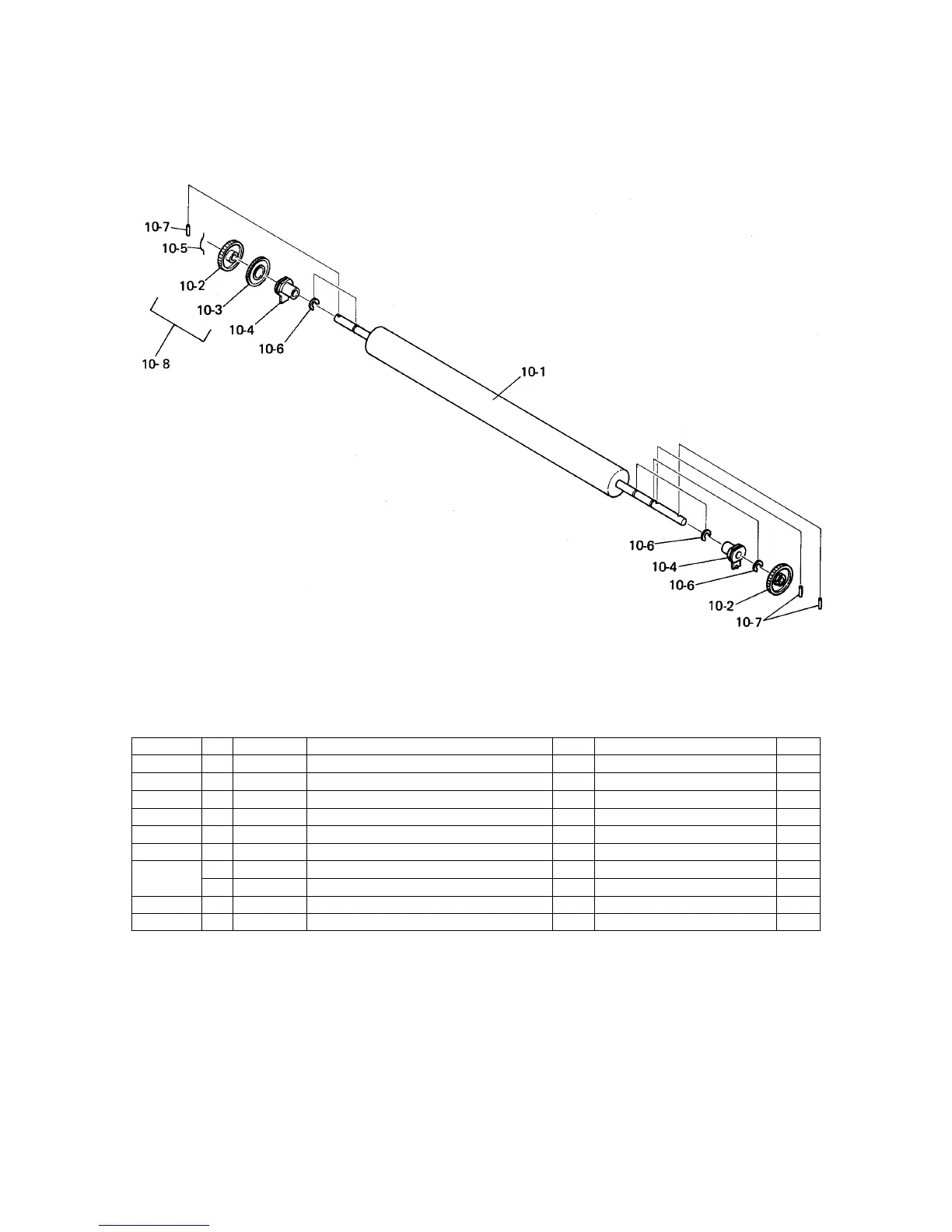

3-7. Platen Unit
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK
