TUP500 Series Product Specifications
15-3

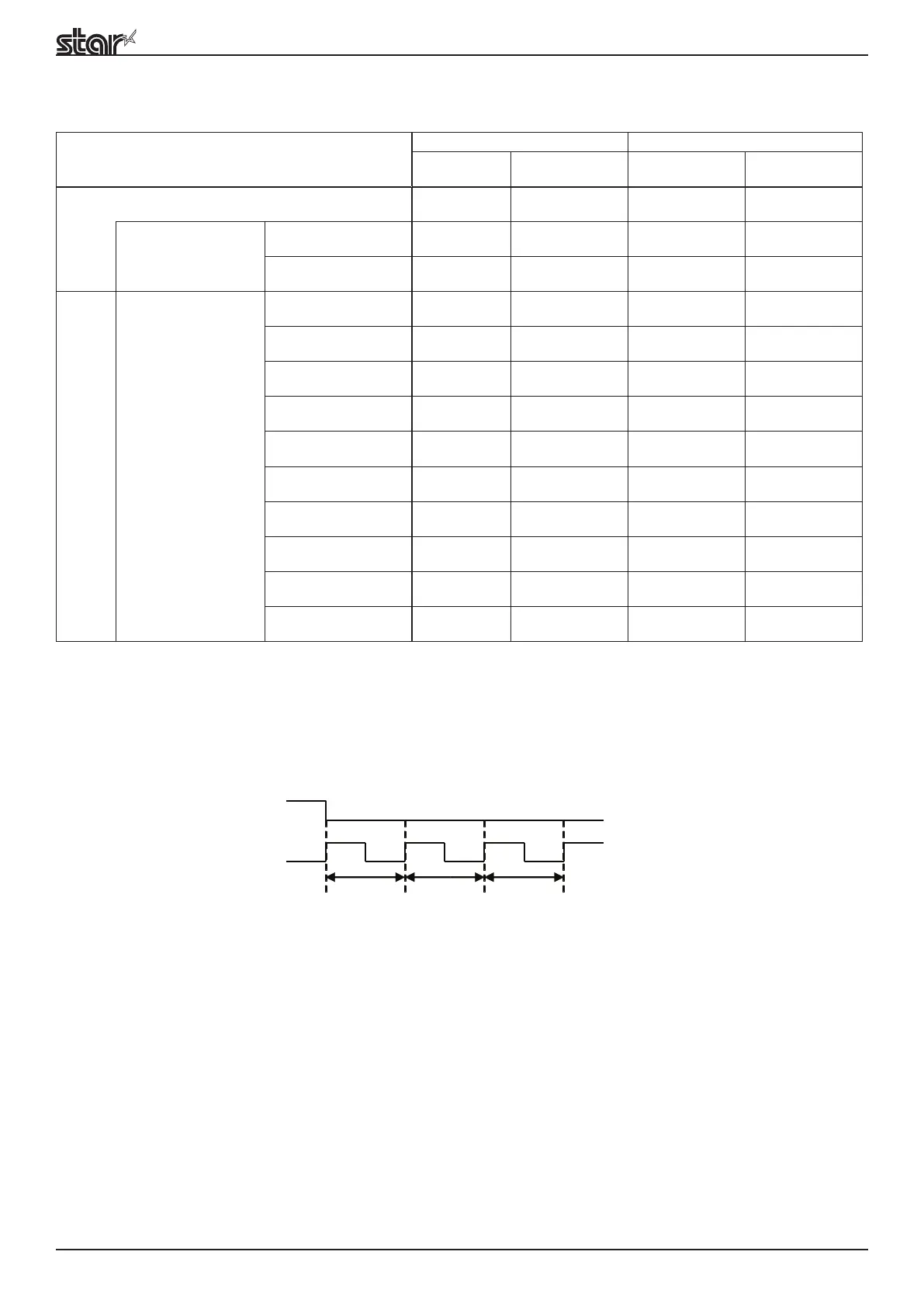

15.2. LED Specifications
Status Operation Panel Main PCB
Power LED
(Green)
Error LED
(Red)
Power LED
(Green)
Error LED
(Red)
ONLINE ON OFF ON OFF
Warning Display NE Error ON Flashing Cycle for
4.0 seconds
ON Flashing Cycle for
4.0 seconds
Auto-recovery Error Head High Temperature Flashing Cycle
for 1.0 seconds
OFF Flashing Cycle
for 1.0 seconds
OFF
Error Recoverable Errors Cover Open Error ON ON ON ON
PE Error ON Flashing Cycle
for 1.0 seconds
ON Flashing Cycle
for 1.0 seconds
BM Error ON Flashing Cycle
for 1.0 seconds
ON Flashing Cycle
for 1.0 seconds
Non-recoverable Errors Cutter Error OFF Flashing Cycle
for 0.25 seconds
OFF Flashing Cycle
for 0.25 seconds
Presenter Paper Jam
Errors
OFF Flashing Cycle
for 0.5 seconds
OFF Flashing Cycle for
0.5 seconds
FLASH Error OFF Flashing Cycle
1.0ec
OFF Flashing Cycle
1.0ec
EEPROM Error OFF Flashing Cycle for
1.5 seconds
OFF Flashing Cycle for
1.5 seconds
SRAM Error OFF Flashing Cycle
for 2.0 seconds
OFF Flashing Cycle
for 2.0 seconds
Head Thermistor Error OFF Flashing Cycle for
3.0 seconds
OFF Flashing Cycle
for 3.0 seconds
Power Voltage Errors OFF Flashing Cycle for
4.0 seconds
OFF Flashing Cycle for
4.0 seconds
<LED Output Priority Order>
Non-recoverable Error → Recoverable Error → Auto-recover Error → Warning Display → On-Line
<LED Output Example Cutter Error > Cutter Error >Cutter Error >
Power LED (Green)
Error LED (Red)
ON
Flashing
Cycle:
T = 0.125 sec
Flashing
Cycle
Flashing
Cycle
OFF
ON
OFF
