Star Micronics TUP500 series User Manual

TUP500 Series Product Specifications
12-7

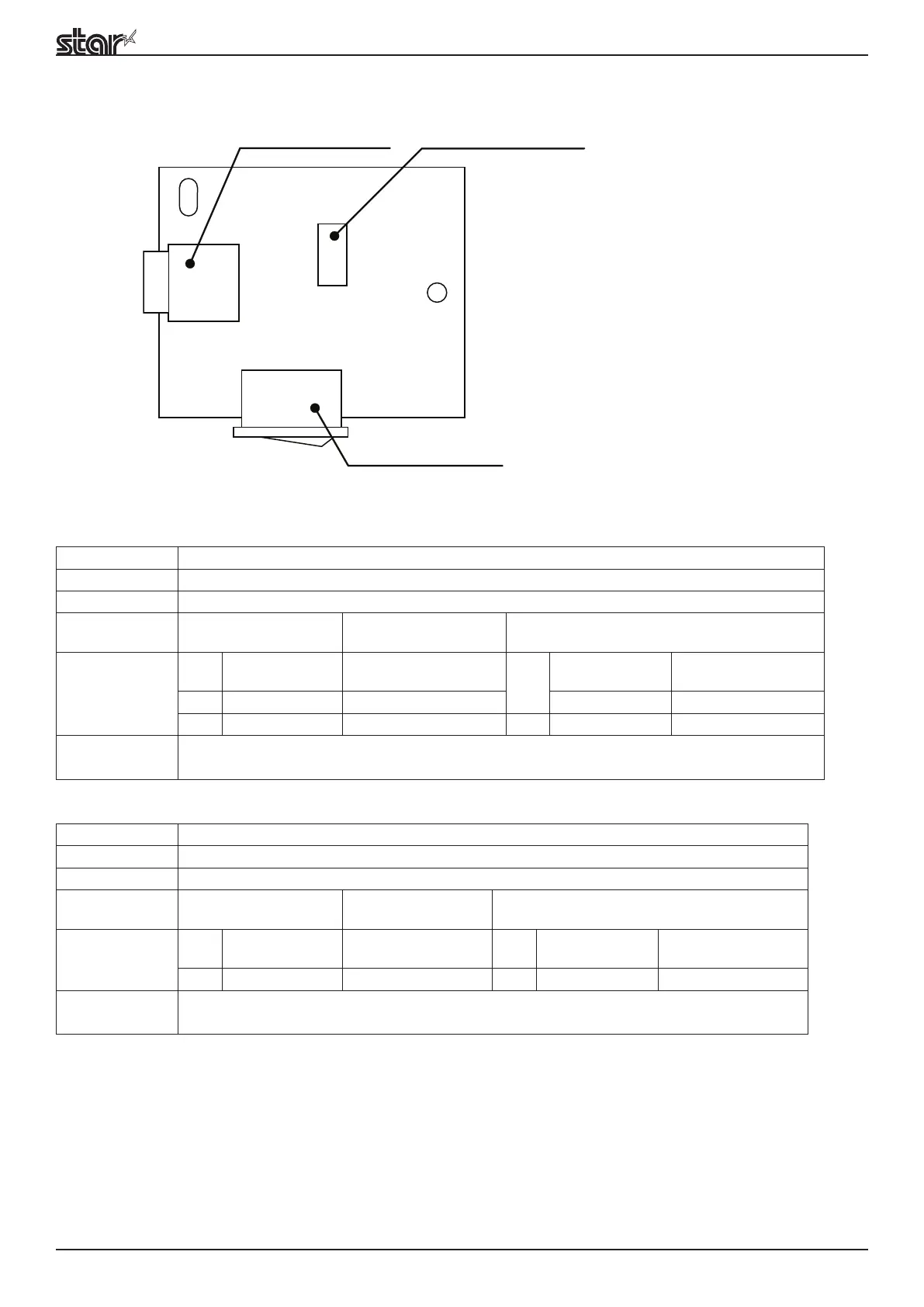

12.1.2. Sub-board
Connector 1
Use Connection with Power Unit
Part ID CN1
Pin Count 4 Pins
Connector
Used
TCS7960-53-2010 Manufacturer Triple Industries Taiwan Corp.
Pin Signal
Names and
Functions
No. Signal Name
Function (General
Description)
No. Signal Name
Function (General
Description)
1 +24 V 24V 3 N. C. Not Connected
2 GND M-GND 4 F-GND F-GND
Remarks
Connector 2
Use Connection with Main Board
Part ID CN2
Pin Count 2 Pins
Connector
Used
51144-0200 Manufacturer Nihon Molex (Corporation)
Pin Signal
Names and
Functions
No. Signal Name
Function (General
Description)
No. Signal Name
Function (General
Description)
1 +24V 24V 2 GND M-GND
Remarks
Compatible Housing: 51144-0200 (Compatible Terminal: 50539-8000)
Compatible Cable: 30721450 Cable U 2 x 60 CC TSP8




CN1: For Power Unit Connection
CN2: For Main Board Connection
SW1: Power Switch
