TUP500 Series Product Specifications 3-18
3.6. Roll Paper Supply Module
3.6.1. Roll Paper Holder Unit Specifications
(1) Roll Paper Support Method: Shaft Support Method Using the Roll Paper Holder
(Fixed Shaft Unit)
(2) Paper Width Adjustment: Adjustable to any width between 45 mm to 82.5 mm.
(3) Paper Tube: See table below. Note that an adapter is necessary, depending
on the paper tube.
Refer to section 3.6.2 for details.
Paper Tube Paper Tube Diameter
Inner Diameter Ø1 Inch Paper Tube Ø25.4 ±1 mm
Inner Diameter Ø2 Inch Paper Tube Ø50.8 ±1 mm
Inner Diameter Ø3 Inch Paper Tube Ø76.2 ±1 mm
3.6.2. Roll Paper Holder Unit Adjustment Method
(1) Adapter Mounting
Depending on the diameter of the paper tube of the roll paper you use, it may be necessary to
mount the corresponding adapter to the roll paper holder (fastened side, movable side). Refer to
table below to make the appropriate settings.
Also, see Fig. 3.6.2.1. for the adapter mounting method.
Paper Tube Paper Tube Diameter Adapter
Inner Diameter Ø1 Inch Paper Tube Ø25.4 ±1 mm None
Inner Diameter Ø2 Inch Paper Tube Ø50.8 ±1 mm Mount Adapter M
Inner Diameter Ø3 Inch Paper Tube Ø76.2 ±1 mm Mount Adapter L
Notes:
1. Adapter L is an accessory of the optional damper roller B unit (DRU-T500B), so if using the
roll paper inner diameter Ø3 inch paper tube, purchase the optional damper roller B unit
(DRU-T500B).

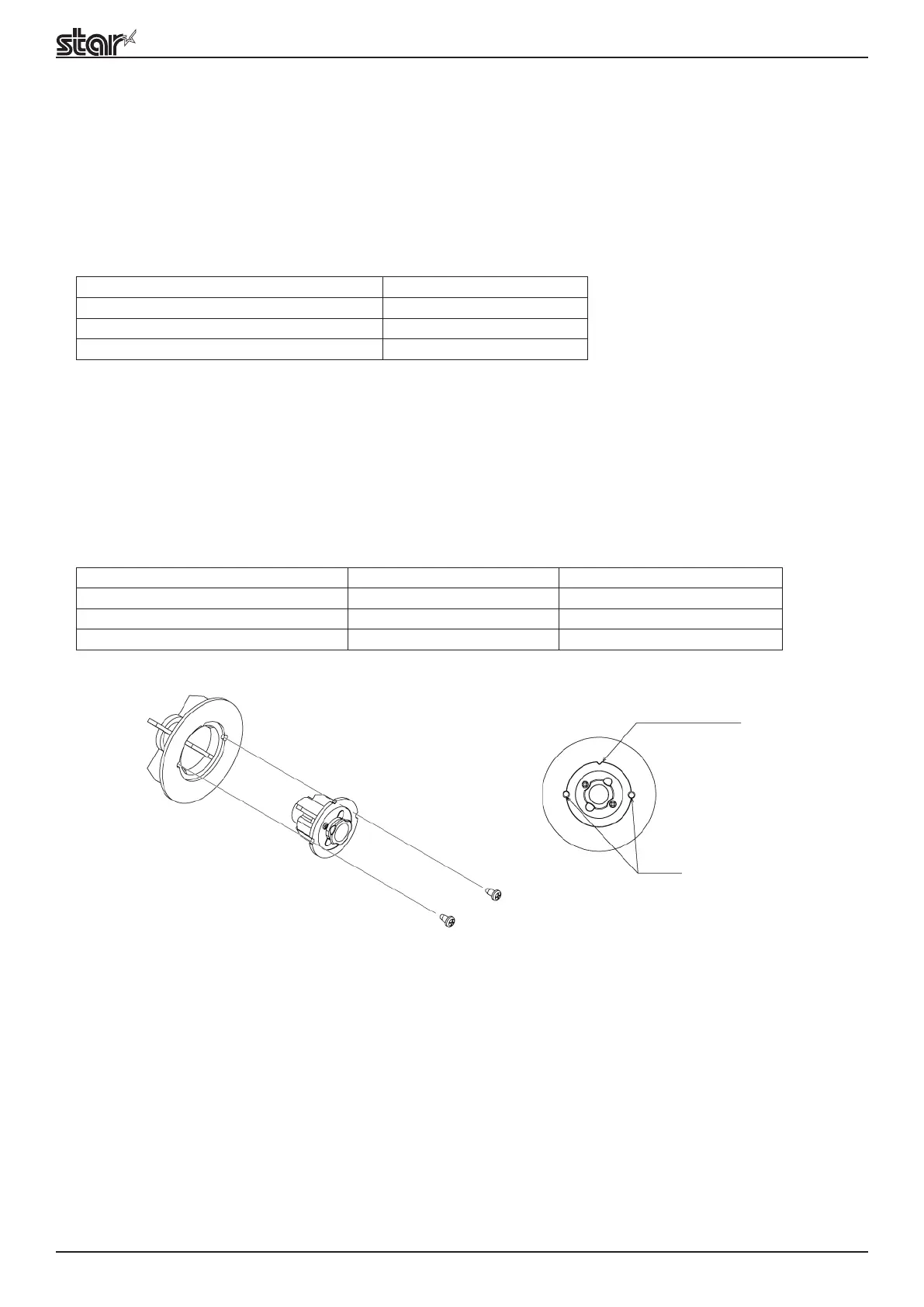

Fig. 3.6.2.1. Adapter M ounting on the R oll P aper H older
Position with Notch
Screw Hole
To Next Page
