Engine Electrical Devices: 1C-13

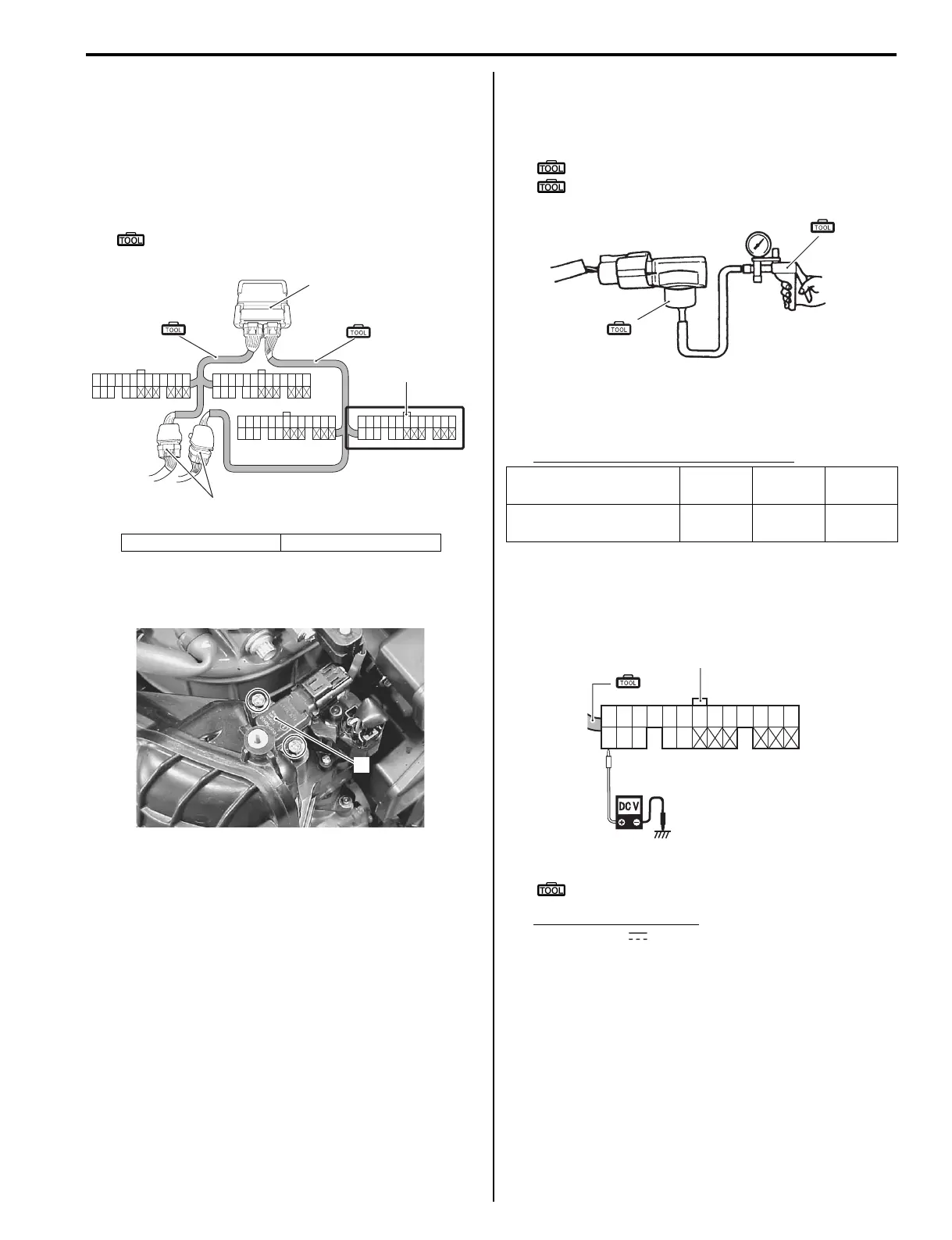

MAP Sensor Output Voltage Inspection
Z9J0111306013
1) Remove the flywheel.
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-5).
2) Connect the 36-pin test cord set between ECM and
wire harness as shown in figure.
Special tool
(A): 09930–88730 (36-pin test cord set)
3) Remove the screws and MAP sensor (1) from intake
manifold.
4) Install MAP sensor into special tool.
5) Connect vacuum pump gauge (with hose) to MAP
sensor (special tool) as shown in figure.
Special tool
(B): 09917–49610 (Vacuum pump adapter)
(C): 09917–47011 (Vacuum pump gauge)
6) Turn ignition switch ON.
7) While applying negative pressure (vacuum) to MAP
sensor, measure “32” terminal voltage.
MAP sensor output voltage change
(at 759.8 mmHg, 101.3 kPa, 29.91 inHg
barometric pressure.)
36-pin test cord (Black connector)
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
DC Voltage ( )
8) If out of specification, Check wire harnesses for open
and short. If wire harnesses are in good condition,
replace MAP sensor and recheck.
9) Reinstall MAP sensor.
Refer to “MAP Sensor Removal and Installation”
(Page 1C-12).
1. Wire harness 2. Black connector
37
50
38
51
39
52
40 41
53 54
42 43 44 45 46 47 48 49 55
68
56
69
57
70
58 59
71
60 61 62 63 64 65 66 67
19 20 21 22 23 24 25 26 27 28 29 30 3112345678910111213
14 15 16 17 18
32 33 34 35 36
72
(A)
(A)
ECM
1
2
I9J011130048-02
1
I9J011130014-02
Negative pressure:
kPa (kg/cm
2
, mmHg)
0
(0, 0)
40
(0.4, 300)
80
(0.8, 600)
“32” terminal
voltage (V)
4.00 2.42 0.84
(B)
(C)
I9J011130015-01
32
(A)
2
I9J011130016-02
