Suzuki DF70A Service Manual

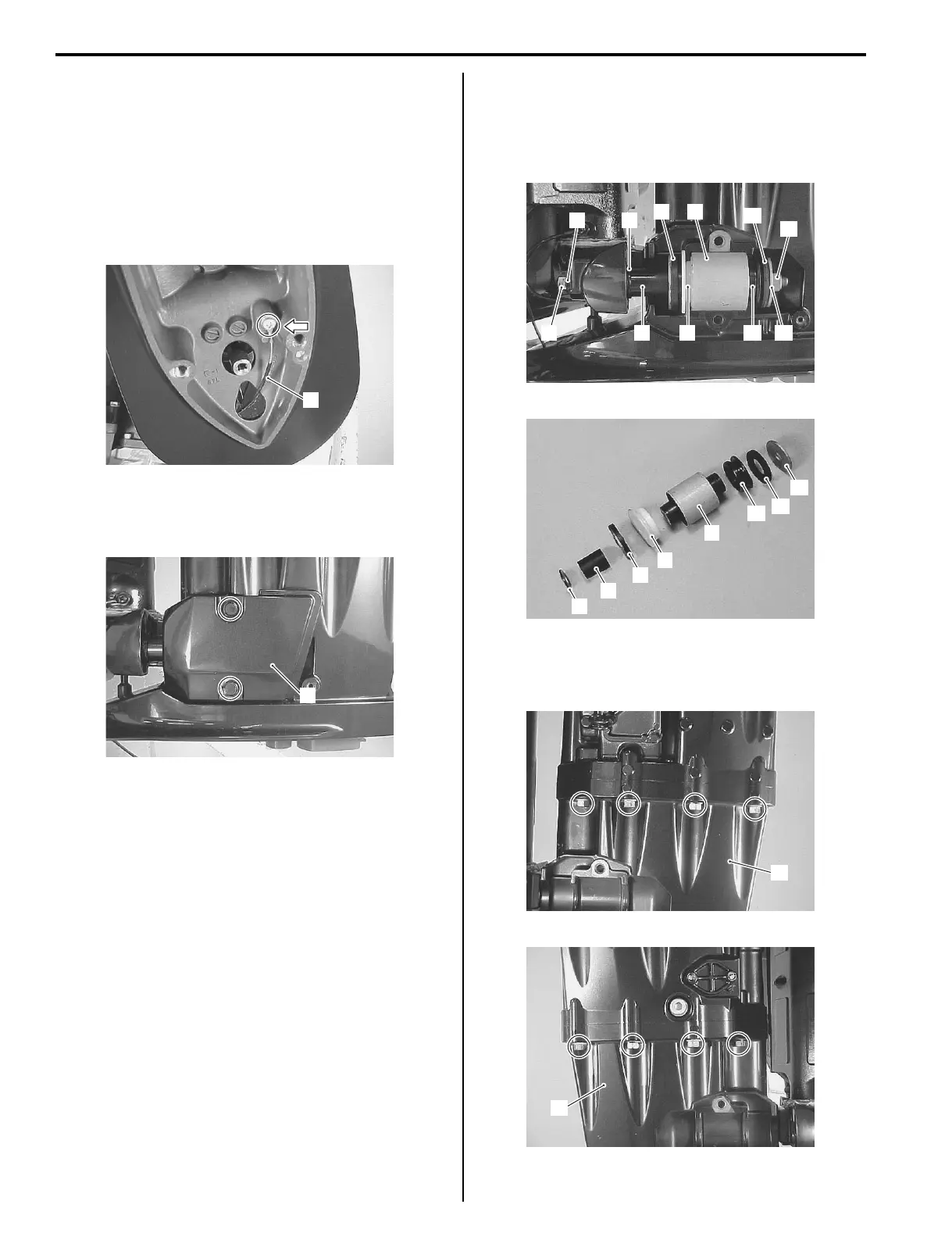

2A-6 Housing and Bracket:
Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Disassembly
Z9J0112106004
1) Remove the power unit. Refer to “Power Unit
Removal and Installation” in Section 1D (Page 1D-
11).
2) Remove the lower unit. Refer to “Lower Unit
Removal and Installation” in Section 3A (Page 3A-5).
3) Remove the screw and bonding wire (1).
4) Remove the four bolts securing the STBD / PORT
lower mount covers, then detach the mount covers
(2).
5) Unscrew and remove the STBD / PORT lower mount
bolts (3). Account for washers (4), (5), mount spacer
(6), forward damper (7), white side mount (8), lower
mount (9), black side mount (10), damper (11),
washer (12) and nut (13).
6) Remove the eight bolts securing the driveshaft
housing (14) to the oil pan, then remove the
driveshaft housing.
1
I9J011210011-01
2
I9J011210012-01
3
5
6
7
8
9
10
4
11
12
13
I9J011210013-02
5
6
7
8
9
10
11
12
I9J011210014-01
14
I9J011210015-02
14
I9J011210016-01
http://SelfFixer.com

Suzuki DF70A Specifications

General

Engine Type	4-Stroke DOHC 16-Valve
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Maximum Output	70 HP
Alternator	12V 27A
Trim Method	Power Trim and Tilt
Gear Ratio	2.59:1
Exhaust	Through Prop Hub Exhaust
Max Output	70 hp
Ignition System	Fully transistorized ignition
Fuel Tank Capacity	External
Weight	160 kg
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Fuel Type	Unleaded Gasoline
Shaft Length	L: 508 mm, X: 635 mm
Displacement	1, 502 cc
Fuel Delivery System	Multi-point sequential electronic fuel injection
Oil Capacity	4.0 L
Alternator Output	27A
