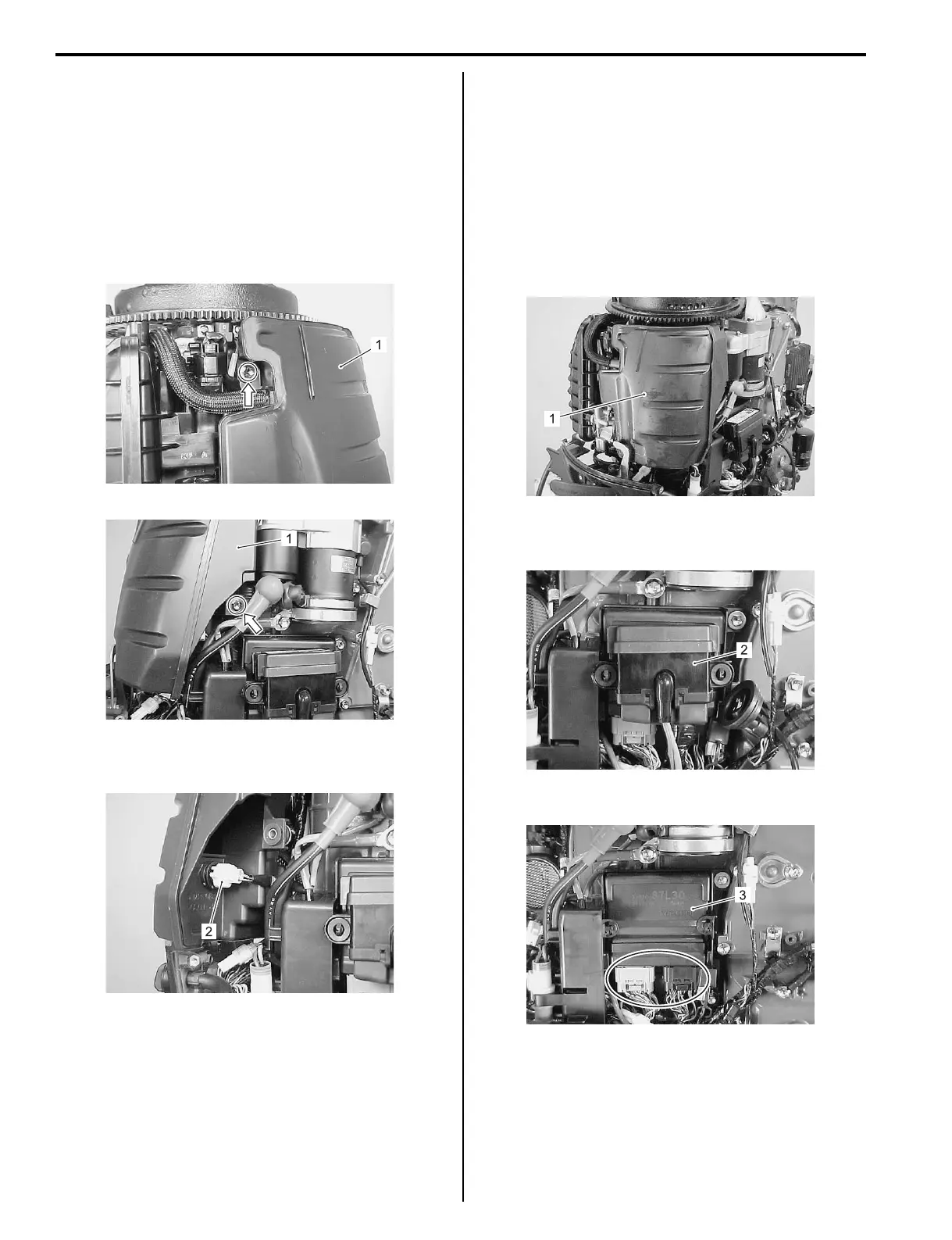

1D-5 Power Unit Mechanical:
Air Intake Silencer Case Removal and
Installation
Z9J0111406003
Removal
1) Remove the ring gear cover.
Refer to “Ring Gear Cover Removal and Installation”
(Page 1D-2).
2) Remove the two bolts securing air intake silencer
case (1).
3) Remove the air intake silencer case.
4) Disconnect the intake air temp. sensor lead wire
connector (2) at sensor.
Installation
Installation is reverse order of removal.
Electric Parts Holder Removal and Installation
Z9J0111406004
Removal
Before removing electric parts holder, disconnect
battery cables from battery.
1) Remove the ring gear cover.
Refer to “Ring Gear Cover Removal and Installation”
(Page 1D-2).
2) Remove the air intake silencer case (1).
Refer to “Air Intake Silencer Case Removal and
Installation” (Page 1D-5).
3) Pull and remove the fuse box (2) from electric parts
holder.
4) Disconnect lead wire connectors from ECM (3).
I9J011140092-01
I9J011140093-01
I9J011140094-01
I9J011140095-01
I9J011140096-01
I9J011140097-01
To Next Page
