Suzuki DF70A Service Manual

Engine General Information and Diagnosis: 1A-15

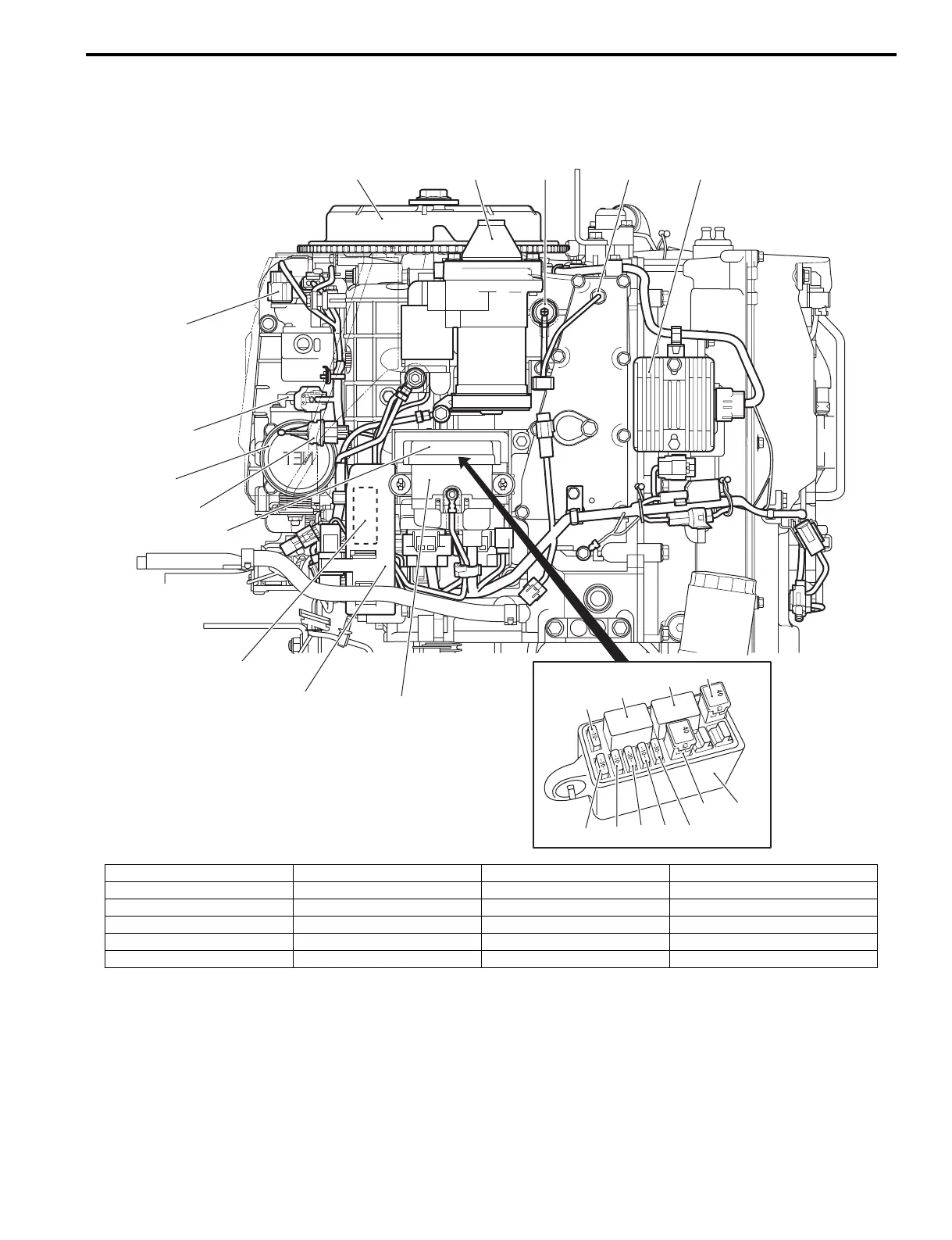

Component Location
Engine Control System Components / Engine Electrical Device Location
Z9J0111103001
22
14
15
23
21
20
19 1718
16
13
1 2 3 5
6
7
8
9
10
4
11
12
13
I9J011110012-03
1. Flywheel 7. Throttle position sensor 13. Fuse box 19. Starter motor fuse (30 amp.)
2. Starter motor 8. Throttle body 14. Starter relay 20. PTT switch fuse (10 amp.)
3. Oil pressure switch 9. IAT sensor 15. Main relay 21. ECM, Ign, etc., fuse (30 amp.)
4. Ex. manifold temp. sensor 10. ECM 16. Main fuse (40 amp.) 22. IAC fuse (10 amp.)
5. Rectifier/Regulator 11. PTT motor relay 17. Spare fuse (30 amp.) 23. Spare fuse (40 amp.)
6. IAC valve 12. Electric parts holder 18. Spare fuse (10 amp.)
http://SelfFixer.com

Suzuki DF70A Specifications

General

Engine Type	4-Stroke DOHC 16-Valve
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Maximum Output	70 HP
Alternator	12V 27A
Trim Method	Power Trim and Tilt
Gear Ratio	2.59:1
Exhaust	Through Prop Hub Exhaust
Max Output	70 hp
Ignition System	Fully transistorized ignition
Fuel Tank Capacity	External
Weight	160 kg
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Fuel Type	Unleaded Gasoline
Shaft Length	L: 508 mm, X: 635 mm
Displacement	1, 502 cc
Fuel Delivery System	Multi-point sequential electronic fuel injection
Oil Capacity	4.0 L
Alternator Output	27A
