1K-7 Charging System:
Flywheel
Install flywheel and tighten flywheel bolt to specified
torque.
Refer to “Flywheel Removal and Installation” (Page 1K-
5).
Special tool
: 09930–48720 (Flywheel holder)
Tightening torque
Flywheel bolt: 196 N·m (19.7 kgf-m, 142 lbf-ft)

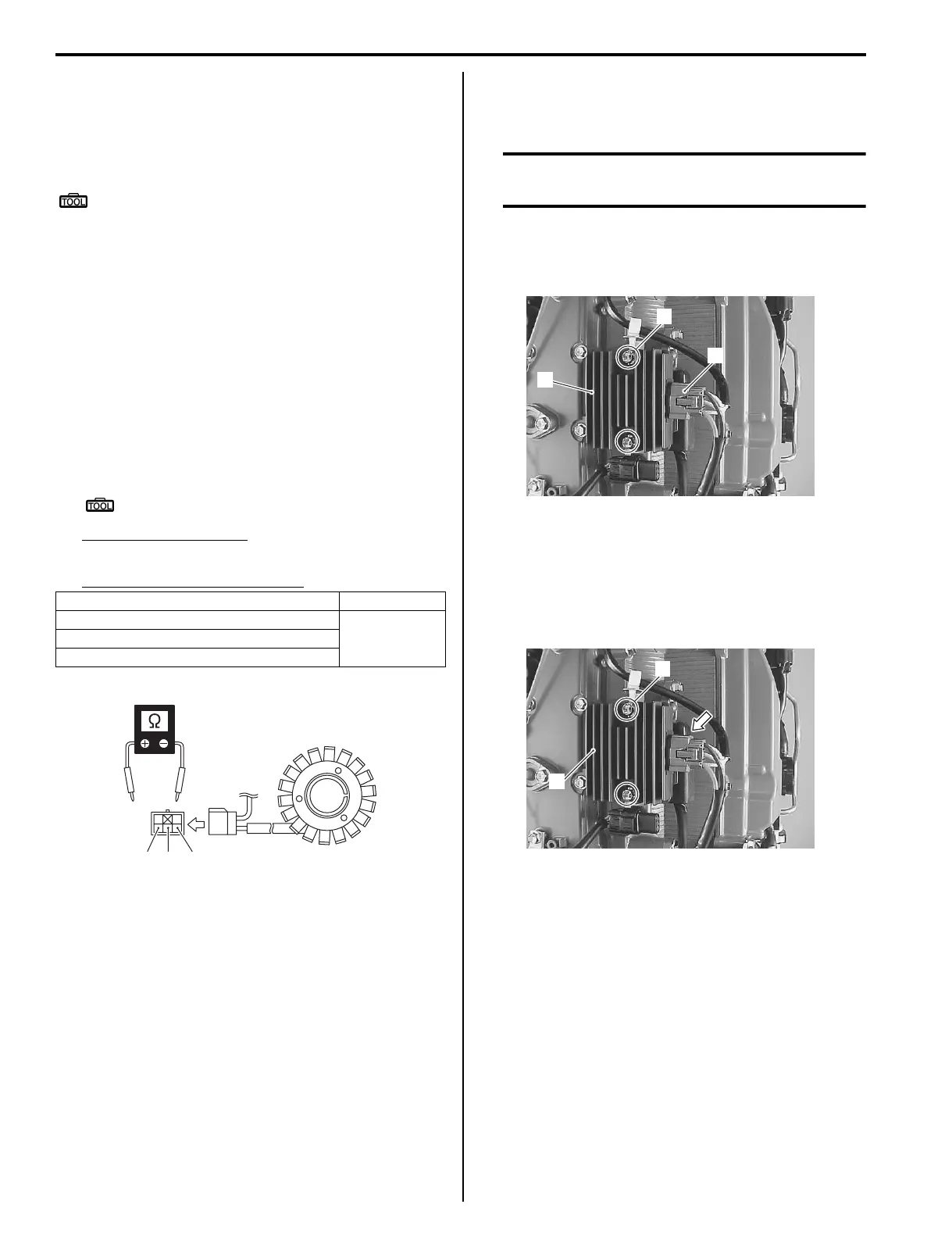

Battery Charge Coil Inspection
Z9J0111B06004
Measure battery charge coil resistance in the following
procedure.
1) Disconnect battery charge coil leads from rectifier/
regulator.
2) Measure resistance between leads in the
combinations shown.
If measurement exceeds specification, replace
battery charge coil.
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
Resistance (Ω)
Battery charge coil resistance
Rectifier/Regulator Removal and Installation
Z9J0111B06005
Removal
CAUTION
Prior to removing electrical parts, disconnect
battery cables from battery.
1) Disconnect lead wire connector (1) from rectifier/
regulator.
2) Remove the bolts (2) and rectifier/regulator (3).
Installation
1) Install rectifier/regulator (1), then tighten bolts (2)
securely.
2) Connect lead wire connector to rectifier/regulator.
Check that lead wire routed properly.
Terminal for tester probe connection Resistance
Yellow 1 to Yellow 2
0.1 – 0.3 ΩYellow 2 to Yellow 3
Yellow 3 to Yellow 1
Y1 Y2 Y3
I9J0111B0005-02
1
2
3
I9J0111B0021-01
1
2
I9J0111B0022-01
To Next Page
